63t Industrial Rail Battery Transfer Cart Q235 20m / Min Low Voltage Rail
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The rail transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Color | Customized,yellow, Gray, Blue |
|---|---|---|---|
| Application | Industrial Field | Running Speed | 0-20m/min |
| Warranty | 24 Months | Port | Qingdao/Tianjin/Shanghai |
| Load Capacity | 1-1500 Ton Payload | Operation Type | Hand Pendant +wireless Remote Control |
| Option Power | Cable Power Supply, Sliding Line, Low Voltage Rail, Diesel, Etc. | ||
| High Light | Battery Industrial Rail Transfer Cart,63t Battery Transfer Cart,Battery Transfer Cart 20m/Min |
||
Product Description

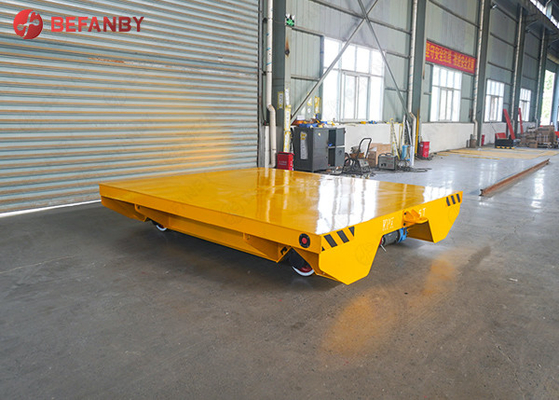

63t Industrial Rail Transfer Cart Manufacturer
63t industrial rail transfer cart, it is an electric material handling transfer carts powered by battery which is manufactured for heavy duty material or equipment transfer in the workshop. it is different from transfer cart, it have to move on rails
products specifications
model: KPX
capacity load: 60 tons
mother car size: 5240x2500x900mm
wheel material: zg55 cast steel
motor power: 1.1*4 kw
power supply mode:battery
customization requirements:scissor lifting, roller automatic conveying,landmark location,automatic track alignment,hmi human machine interface,automatic scheduling
contact us for a free solution based on your requirements. BEFANBY sells its rgv battery self-propelled trailer worldwide!
Technique Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

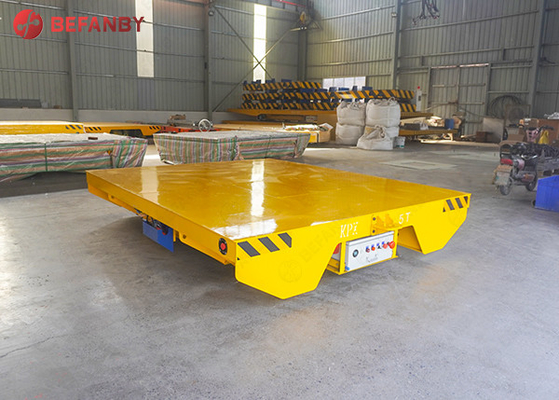

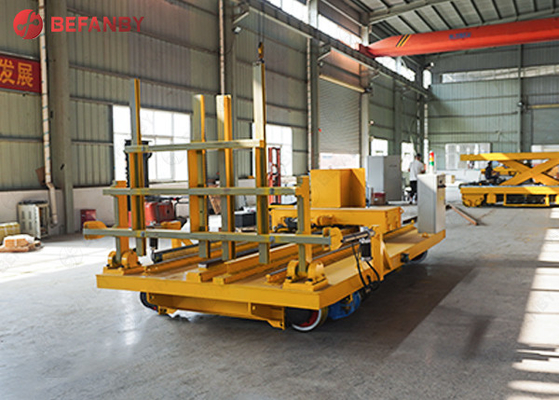

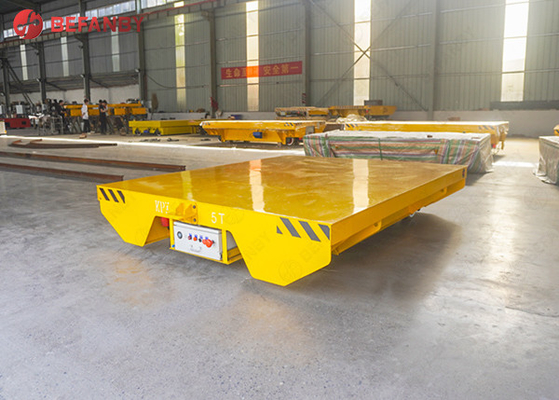

Detailed Images of 50 Ton Battery Track Transfer Vehicle For Die Transportation
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
