KPX Steering Battery Transfer Cart Anti High Temperature 100 Ton
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-1T |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 40-50 days as usual delivery30-40days for urgent delivery |
| Payment Terms | 30% deposit by T/T in advance, 70%balance by T/T before dispatch |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Feature | Steady, Security, Anti-high Temperature | Rated Load | 100t. Customized From 1 Ton To 1500ton |
|---|---|---|---|
| Car Size | Custom Cart Length And Width | Exported Countries | Mexico, Australia, Singapore |
| Wheel Material | Forged Wheel Or Casting Wheel | Operation | Hand Pendant + Remote Control |
| High Light | Battery Transfer Cart 100 Ton,KPX Steering Battery Powered Cart,DC Motor Electric Transport Cart |
||
Product Description
Steering KPX 100 Ton Transfer Cart Manufacturer
Working principle of 100 ton transfer cart manufacturer
The transfer cart is powered by battery. The battery supply the power to the DC motor, which is installed inside or one side of car body. Through the order by remote control, to make the transfer cars start, stop, forward, back, speed governing, etc, electrical control system command the order to DC motor to drive battery rail car working.

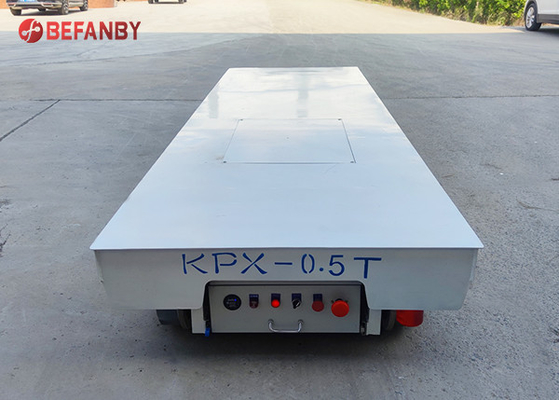

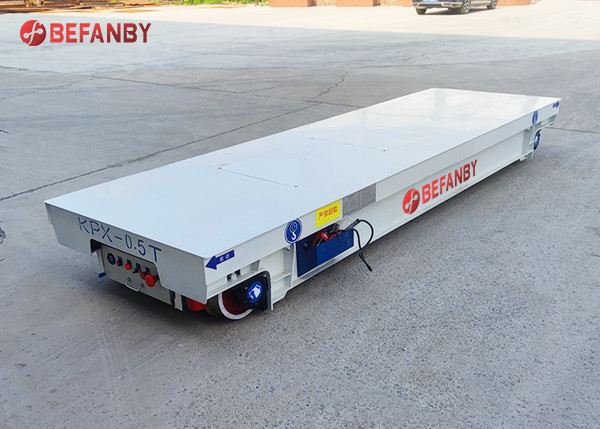

The picture is just for reference, All transfer carts are customzied on demand
Application of battery transfer cart
The battery transfer cart is commonly applied in steel industry, worksop, warehouse, port, railway to transfer lhe required workpiece, It can be used within workshop handling or between workshops.
Technical parameters of battery 100 tons transfer cart
|
Model
|
KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
