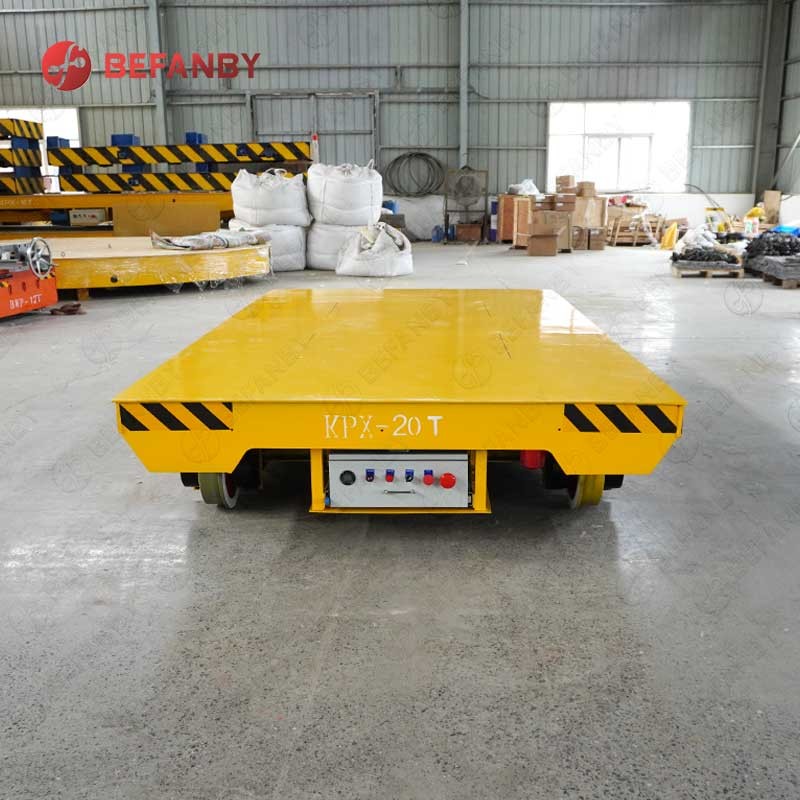

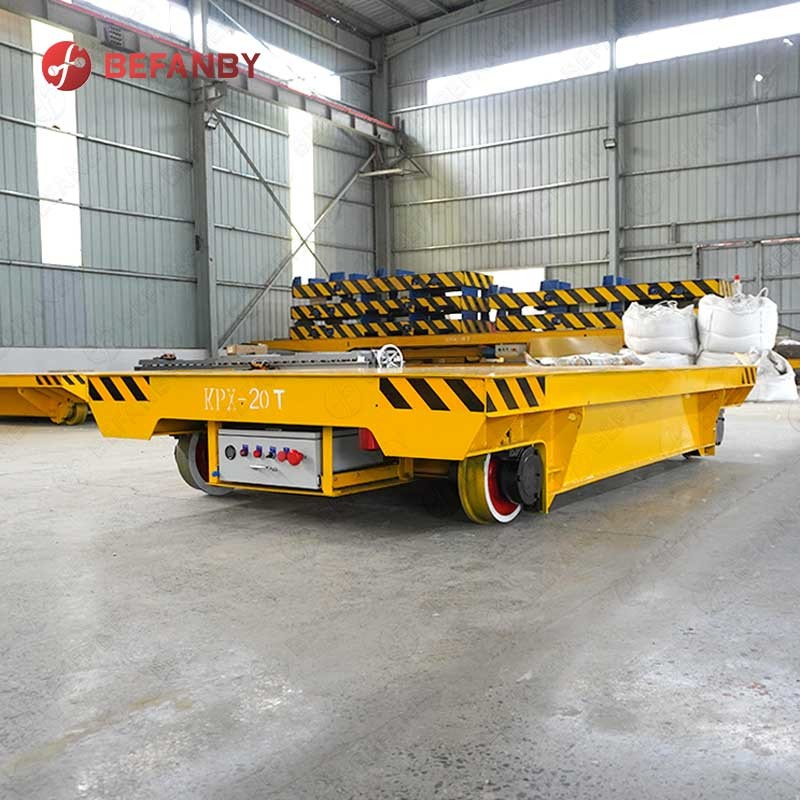

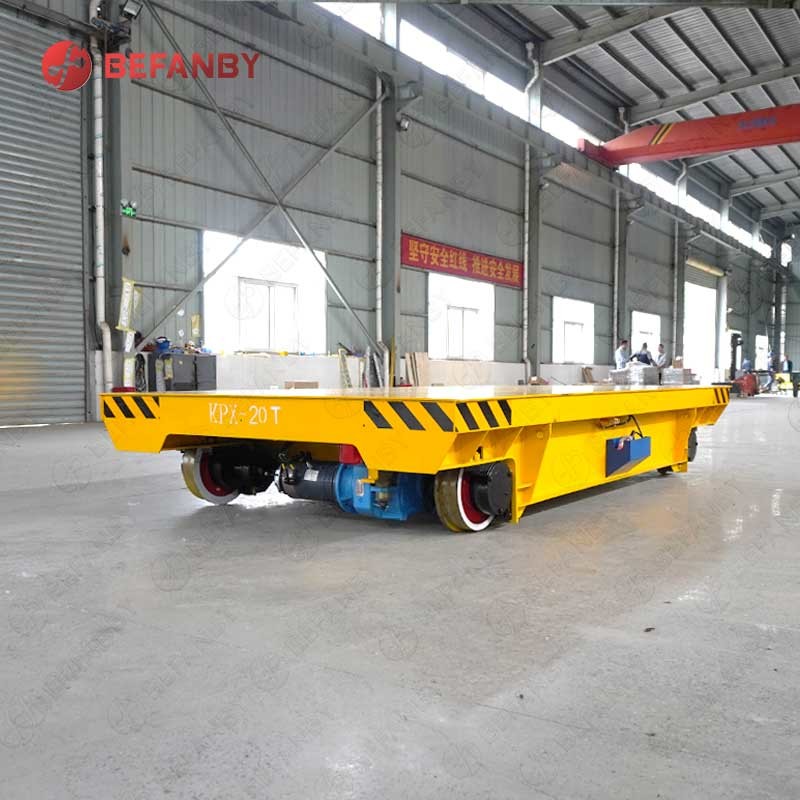

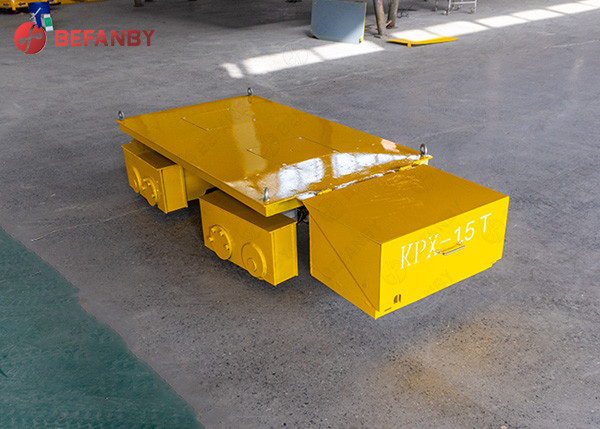

Rails Hydraulic Powered Transfer Cart 30 Ton For Workshop

  • Rails Hydraulic Powered Transfer Cart 30 Ton For Workshop
  • Rails Hydraulic Powered Transfer Cart 30 Ton For Workshop
  • Rails Hydraulic Powered Transfer Cart 30 Ton For Workshop
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX-30 Ton
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The transfer car 30 ton will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1500 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Customized Application Industrial Field, Steel Plant
Warranty 24 Months Port Qingdao/Tianjin/Shanghai
Load Capacity 1-1500 Ton Payload Power Supply Battery Powered
High Light

Hydraulic Powered Rail Transfer Trolley 30T

,

Workshop Hydraulic Powered Transfer Cart

,

Industrial Battery Transfer Cart 30 Ton
Leave a Message
Product Description
Workshop Hydraulic Powered Transfer Car 30 Ton On Rails



Hydraulic powered transfer car is a kind of heavy-loading transportation and handling equipment driven by electricity running on the steel rails, generally handling 1-1300 tons. Materials include: drying room, painting room, paper mill, railway, brick factory, etc. It is composed of electrical control system, walking wheel system, power supply system, drive system and frame, etc.


Due to the use of power supply motor drive operation, the speed and efficiency are greatly improved. The equipment is designed to carry hundreds of tons and is a common equipment in industrial production activities



Technique Parameter

Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8



Application



Transporting Goods: the hydrauliac power transfer car is suitable for various industries, steel mill, transfer steel products such as steel billets, steel ladle steel structure, steel pipe and coil, etc.



From one location to another; roll plant: transfer  coil painting shops: transfer work piece into the painting room sand blasting room other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc

Workshop Hydraulic Powered Transfer Car 30 Ton On RailsWorkshop Hydraulic Powered Transfer Cars 30 Ton On Rails

All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

Workshop Hydraulic Powered Transfer Cart 30 Ton On RailsWorkshop Hydraulic Powered Transfer Car 30 Ton On Rails

Workshop Hydraulic Powered Transfer Carts 30 Ton On Rails



Workshop Hydraulic Powered Transfer Trolley 30 Ton On Rails



battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
Our Company


Workshop Hydraulic Powered Transfer Cars 30 Ton On Rails


Workshop Hydraulic Powered Transfer Car 30 Ton On Rails

Workshop Hydraulic Powered Transfer Car 30 Tons On Rails
