30 Tons Motorised Rail Transfer Trolley For Vacuum Oven
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-30 Tons |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The transfer trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40 days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Application | Industrial Field, Vacuum Oven |
|---|---|---|---|
| Running Speed | 0-20m/min | Warranty | 18 Months |
| Port | Qingdao/Tianjin/Shanghai | Load Capacity | 1-1000T |
| Power Supply | Battery Powered | Operation Type | Hand Pendant+ Remote Control |
| High Light | Motorised Rail Transfer Trolley 30 Tons,Vacuum Oven Rail Transfer Trolley,20m/Min Motorised Transfer Trolley |
||
Product Description

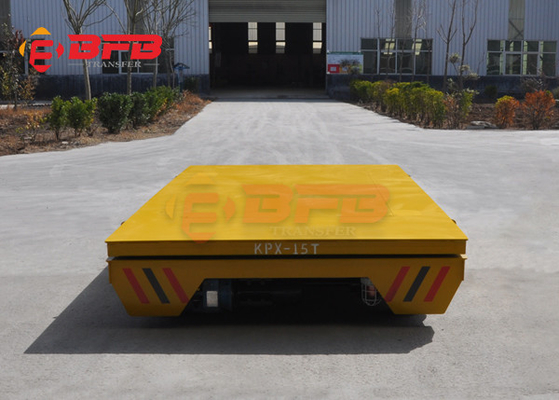

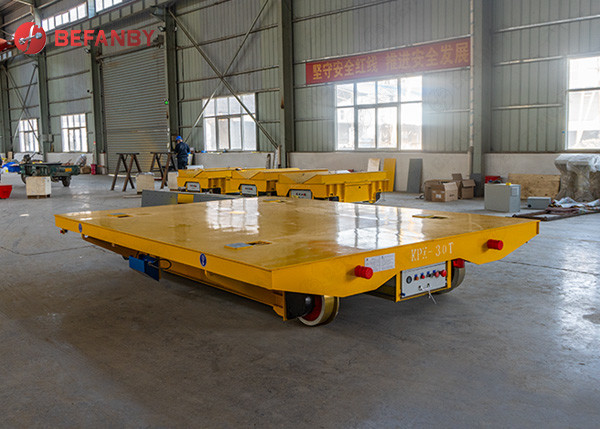

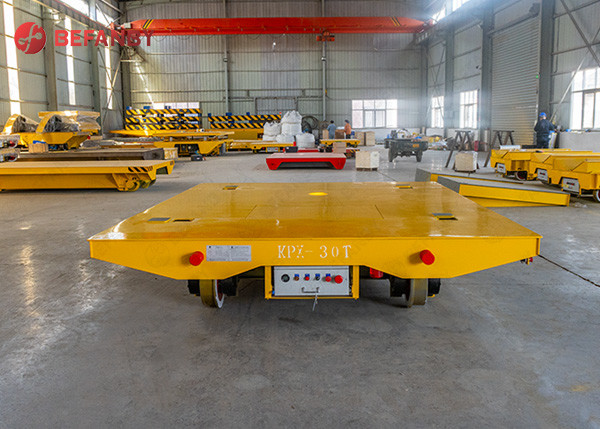

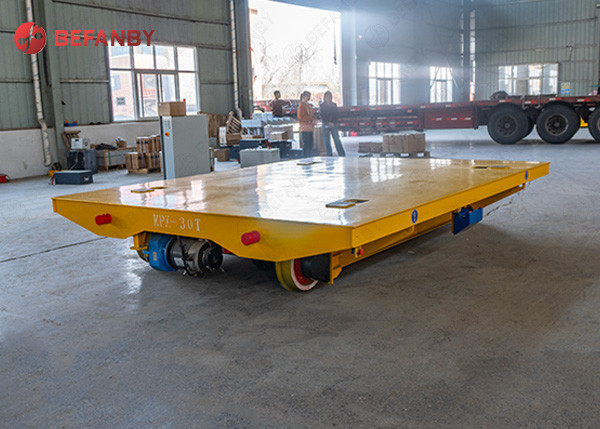

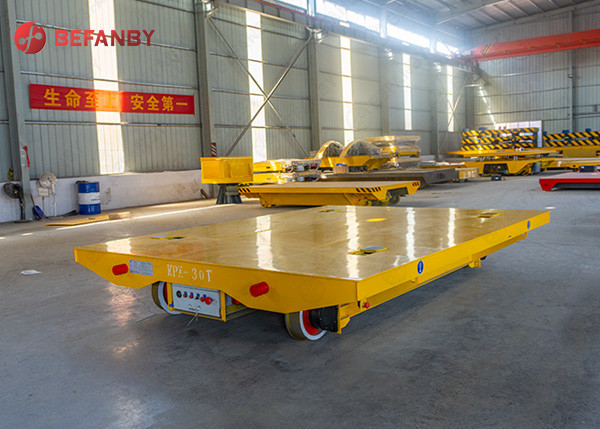

30 Tons Motorised Rail Transfer Trolley For Vacuum Oven
1. Product Introduction
The 30 tons motorised rail transfer trolley is one of our hot sale material handling products between factory, it is powered by battery. The battery is installed in the inner of the transfer trolley. The direct-current machine gets its power from the electric control system, which make the transfer trolley to start, stop, move forward and move backward. It could run on straight line, L-form track or curved steel rails. We can also fit hydraulic lifting system if it is necessary.
2. Why choose electric transfer trolley to instead of the manpower transfer trolley
a. Low noise the transfer trolley causes low noise level.
b. Maximum safety Offers guarantee of maximum safety for workers and for the material handled. BEFANBY really care about the safety of everbody involved in the job.
c. Easy to operation These transfer trolleys are easy to drive, so as soon as you get it you will be able to use it to transport your loads. BEFANBY will support you to make the best out of your heavy load transporter.
d. Customized 1-1500t capacity The electric transfer trolley is super for transporting both small and extremely heavy loads for its modular fabrication and its high payloads: up to 1500 ton for each trolley.
e. To Increase Output The battery powered transfer trolley minimizes forklifts and cranes usage, due to the lifting deck which allows to these poly directional battery transfer trolleys to lift and move the loads where needed.
f. No limits for the Spaces Themotorised rail transfer trolley is rather compact and with all the different types of steering: 90 degree, carousel, diagonal, compass and so on. And it can operate even in very narrow spaces.
3. Technique Parameter
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 1 | 1.2 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 180 | 180 | 160 | 180 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
4. Packing and delivery
BRFANBY have fixed fowarder with long term cooperation. and we will as per the true situation to provide proper transportation solution to save teh cost.
