Electric Railway Flat Transfer Trailer Battery Operated 10t 20m/Min
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The railway flat transfer trailer will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 24 Months | Port | Qingdao/Tianjin/Shanghai |
|---|---|---|---|
| Load Capacity | 1-1500 Ton， Customized 10t Trailer | Operation Type | Hand Pendant + Remote Control |
| Power Supply | Battery Operated | Advantage | More Than 20 Years' Experience For Transfer Trailer |
| High Light | Flat Transfer Trailer 10t,Electric Railway Flat Transfer Trailer,Flat Battery Transfer Cart 20m/Min |
||
Product Description
Electric Railway Flat Transfer Trailer 10t
The battery operated transfer trailer in the factory. It has the superiority of simple structure, easy use, good maintenance, large carrying capacity, environmental protection, and safe use. It can be widely applied in factorys. Warehouses and inplants are used for transportation in workshops or with cranes to transport heavy goods across. Such as: raw materials, castings and forgings, mold, girder, valve and welded parts, machined workpieces and finished products, etc..
Application range: suitable for transportation in various environments, widely used in metallurgy, coal, electromechanical, heavy industry, shipbuilding, light industry and other enterprises.
About the safety
Its safety performance is very high. It uses a frame made of Q235B steel, the wheels are specially cast, and the power supply adopts explosion-proof and high-temperature resistant lead-acid batteries. It also has safety alarm equipment, which fully protects operators and Personal safety of on-site personnel. Ideal for use inside factories. railway flat transfer trailer has passed IS09001 quality system certification, CE certification, SASO and SGS successively.
Technical Parameter
1. Model: KPX
2. Capacity: 10t
3. Table Size: 5500*2000*600mm
4. Power: Battery Powered
5. Running Speed: 0-20m/min
6. Operation: Hand Pendant + Remote Control
Customized Manufacturer
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

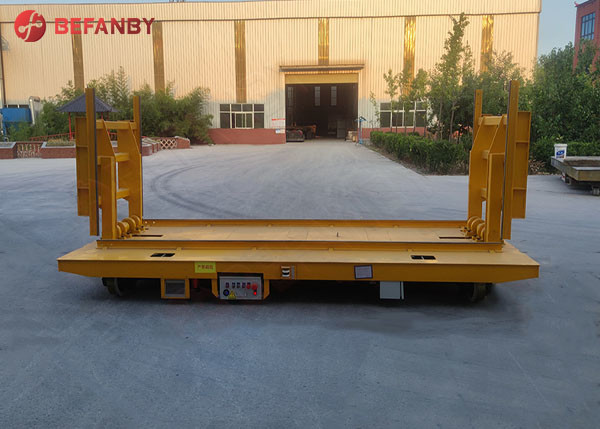

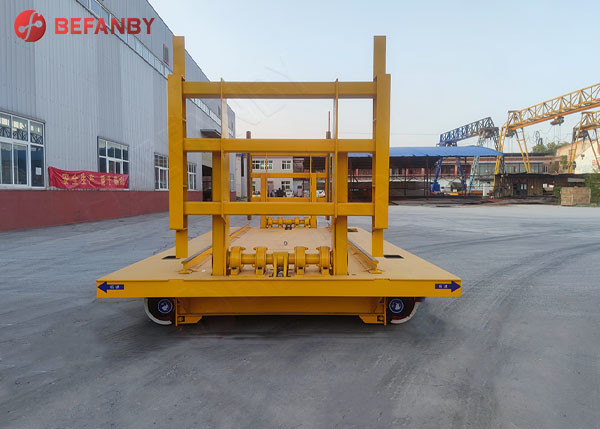

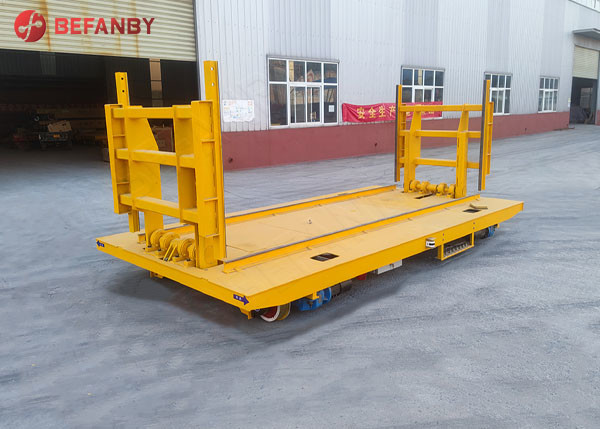

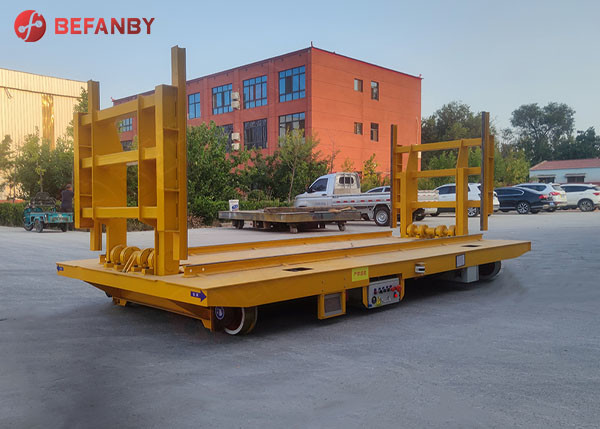

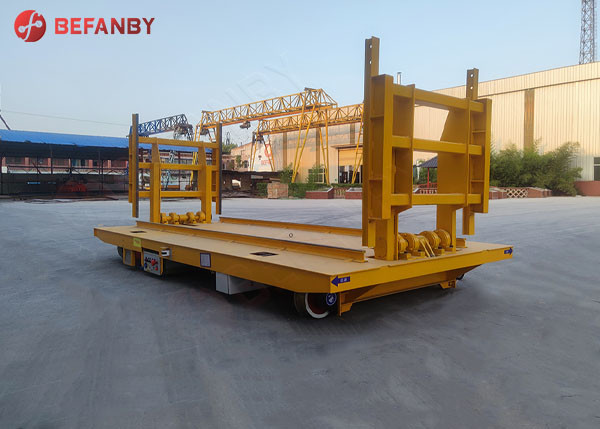

Detailed Images of factory rail trailer manufacturer
