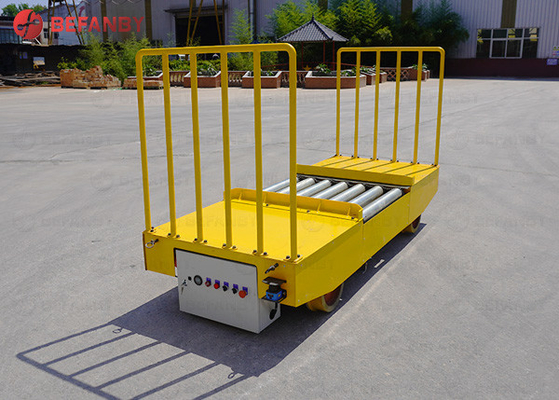

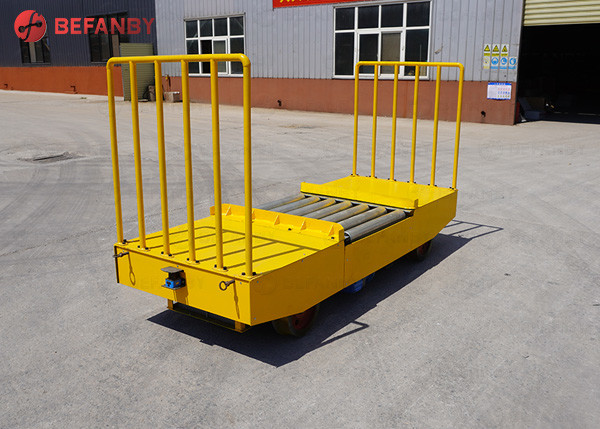

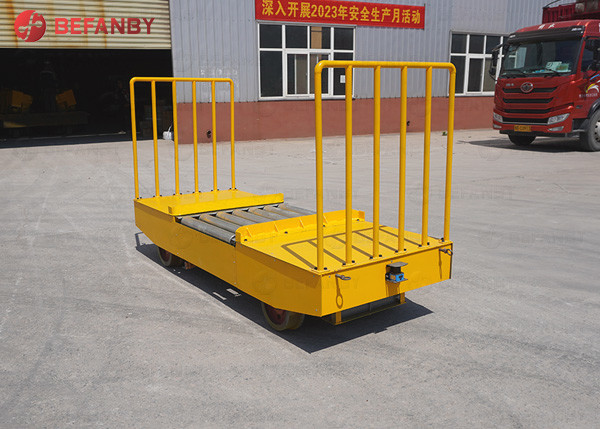

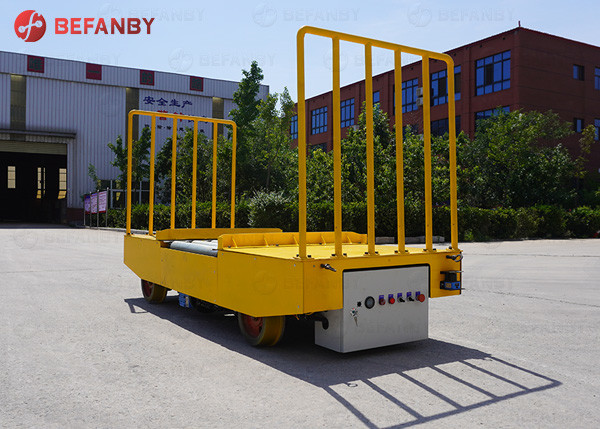

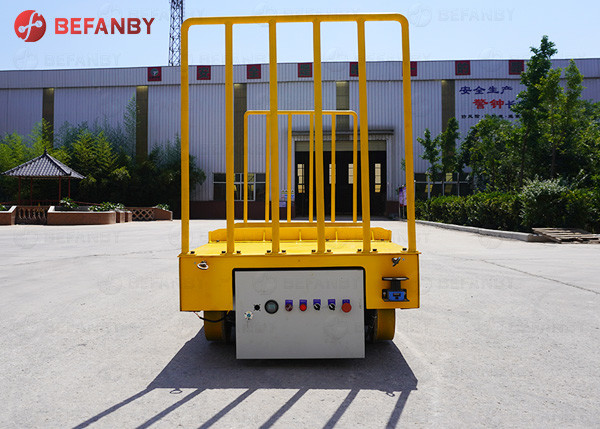

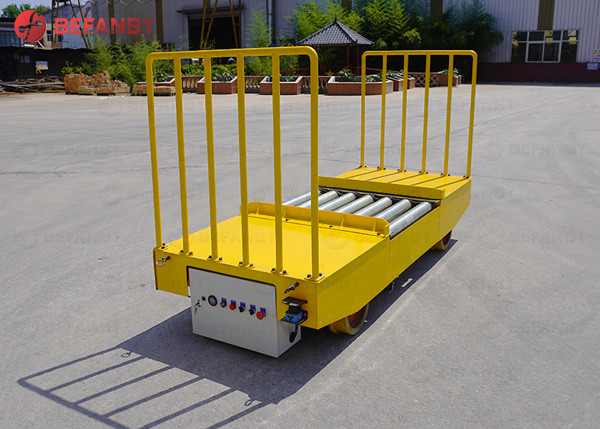

20t Battery Transfer Cart 0 - 20m/Min Motorized Rail Cart Lift Table
Place of Origin | Henan,China |
---|---|
Brand Name | BEFANBY |
Certification | CE,SGS,ISO9001 |
Model Number | KPX |
Minimum Order Quantity | 1 set/sets |
Price | Negotiation |
Packaging Details | The battery power rail cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 1500 set/sets, per year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColor | Customized | Running Speed | 0-20m/min |
---|---|---|---|
Function | Lifting System Customization | Port | Qingdao/Tianjin/Shanghai |
Load Capacity | 1-1500 Ton Payload | Power Supply | Battery Powered |
High Light | 20t Battery Power Rail Cart,Battery Transfer Cart Lift Table,20m/Min Motorized Rail Cart |
The battery power rail cart is mainly suitable for transporting workshop machines, hollow and other concrete products, and the lifting system is configured to match the workshop equipment. The power supply mode is configured according to the work site, such as battery type, cable type, low-voltage rail type, etc. Rail cart lift tables have the advantages of safety and flexibility, not limited by distance, adjustable speed, stable start, low voltage, long service life, etc. . There is no high requirement for rail laying, and it is suitable for occasions with low frequency and long transportation distance.
Application Guidance
The motorized rail cart can be widely applied in many fields, such as steel industries (steel coil, steel pipes, steel pates, steel bars and other steel parts transport), heavy industry(hot metal ladle, dies, molds,), paper making plants, coking plants, boiler plants, ship industries, petroleum industries, painting industries, precast concrete factories, textile plants, quarry plants, transformer plants, turbine plants, power station, cement factories, machinery factories, construction sites, production line, workshop, warehouse and other fields for materials, workpieces, machines transport from one bay to another.
Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 |
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
