Q235 Material Transfer Carts Flatbed Heavy Duty Industrial Trailer For Workshop
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE, SGS, ISO9001 |
| Model Number | KP/BWT |
| Minimum Order Quantity | 1 set/sets |
| Price | $1500-$2000/ Per Set |
| Packaging Details | The transfer trailer will be packed by the tarp, the parts will be packed y the high quality wooden case. |
| Delivery Time | 15-20 working days for usual delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 600 sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 2 Year | Application | Material Transfer, Workshop ,production Line |
|---|---|---|---|
| Capacity | 1-1500t For Industrial Trailer | Power Supply | No Powered/munual |
| Material | Q235 | Operation Type | Winch, Forklift, Manual Towing |
| Color | Yellow, Gray, Red Or As Your Demands | Company Type | Manufacturer For Material Handling Equipment Since 2003 |
| High Light | Flatbed Heavy Duty Industrial Trailer,Q235 Heavy Duty Industrial Trailer,Workshop Material Transfer Flat Bed Trailer |
||
Product Description

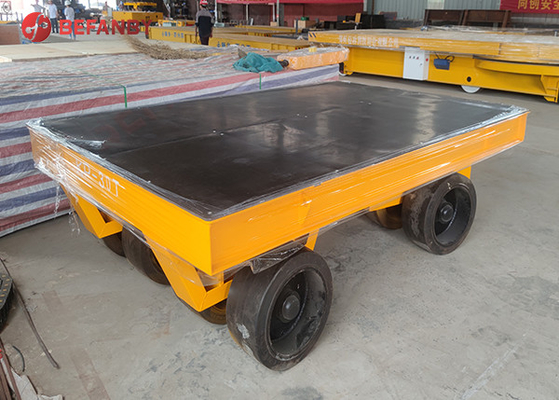

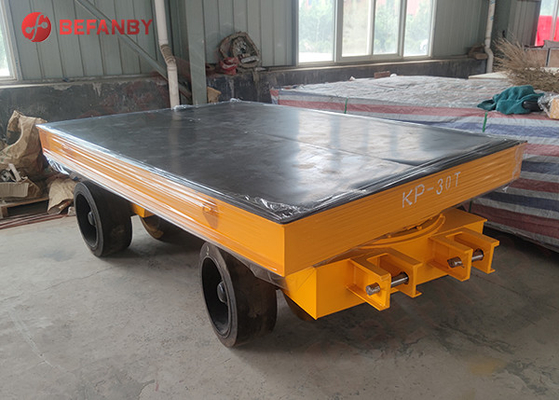

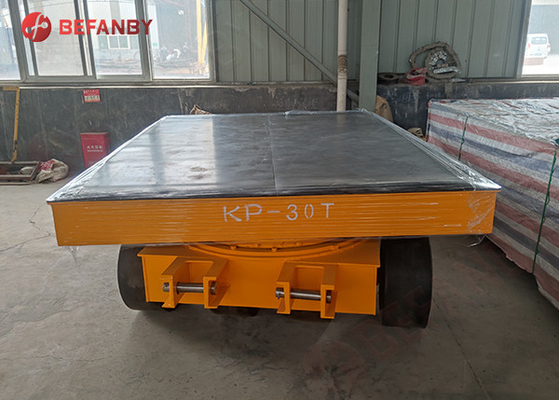

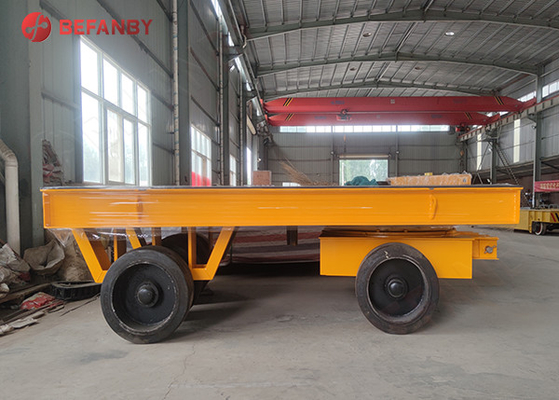

Flatbed Heavy Duty Industrial Trailer
1. Product Description
The heavy-duty industrial trailer is composed of a chassis, a lifting device, a hydraulic system, an electronic control system, a lifting traction device, a car body and a toolbox, etc. It has multiple functions such as lifting, towing, and lifting traction. Flatbed trailers, also known as flatbed trucks, full trailers, full trailers, flatbed trailers, etc., are important tools for modern logistics and transportation.
Features of heavy trailers
1. The double-spring buffer traction mechanism of the heavy-duty trailer has a buffer to avoid damage to the cargo when the vehicle starts or brakes suddenly.
2. The steering mechanism is Shanghai Gongji rotary assembly (excavator hook arm rotary assembly) and there is no need to worry about damage for ten years.
3. The traction cage can be adjusted and fixed up and down, and it only needs to be adjusted simply when traction heads or forklifts of different tonnages are towed.
4. Compared with the traditional hard connection (welding), the suspended frame reduces the long-term stress damage of the car body and has a long service life.
5. The wheel axle is automatically oscillating and adjustable, and the uneven ground ensures that the board surface is level and the tires are evenly stressed.
6. The front and rear wheel sets can be equipped with spring steel shock absorbers to reduce the damage to the goods caused by bumps.
2. Main of manual industrial cargo transport forklift towing trolley
A. The main parts of the forklift transfer trolley includes cart frame, towed hook, cast wheel, control box, etc.
a. The Parts of the rail type towing trolley
b. The Parts of the no rail type towing trolley
3.The parameter of 1-500t customized industrial trolley
| Model | KP-2t | KP-20t | KP-50t | KP-100t | KP-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
4. Company Introduce
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 60 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
5. Design Requirement Of Forklift Towing Trolley
The load capacity, table size, color of the roller bed trailers all can be customized.
1. The rated load capacity: BEFANBY will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trolley plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.
