Battery Operated Lift Table Transfer Cart Hand Pendant Remote Control
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX+lifting |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The rail trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 24 Months | Port | Qingdao/Tianjin/Shanghai |
|---|---|---|---|
| Load Capacity | 1-1500 Ton， Customized Transfer Cart | Operation Type | Hand Pendant + Remote Control |
| Power Supply | Battery Operated | Advantage | More Than 20 Years' Experience For Transfer Cart |
| High Light | Battery Operated Lift Table Transfer Cart,Remote Control Electric Transfer Cart,Hand Pendant Battery Transfer Cart |
||
Product Description
Battery Operated Lift Table Transfer Cart Manufacturer
The use of rail transfer carts has grown in popularity in recent years as businesses seek to simplify operations and reduce costs. A transfer cart is an industrial device that allows an operator to easily move heavy objects from one location to another. They come in many different shapes and sizes, allowing flexibility in their use. For example, some transfer vans are designed for transporting large items like pallets or containers, while others are designed for smaller items like boxes or crates.
Application range: suitable for transportation in various environments, widely used in metallurgy, coal, electromechanical, heavy industry, shipbuilding, light industry and other enterprises.
Technical Parameter
1. Model: KPX
2. Capacity: 10t
3. Table Size: 5500*2000*600mm
4. Power: Battery Powered
5. Running Speed: 0-20m/min
6. Operation: Hand Pendant + Remote Control
Customized Manufacturer
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

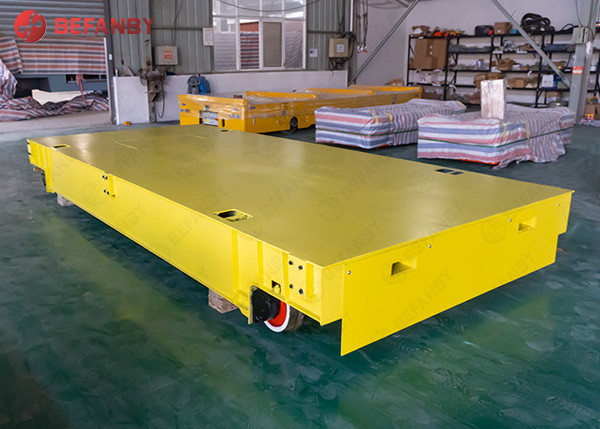

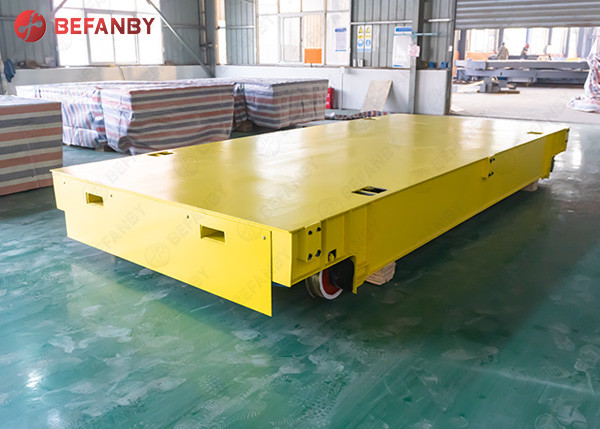

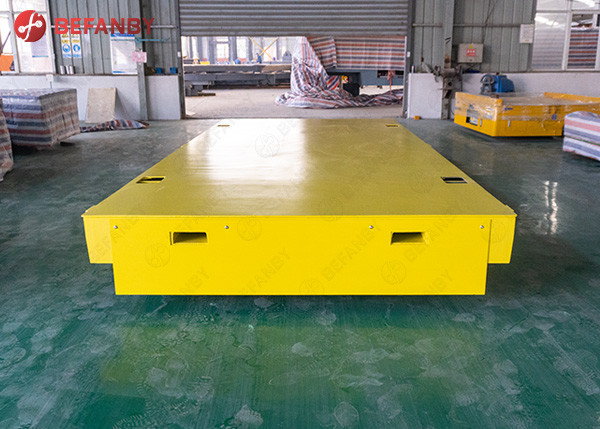

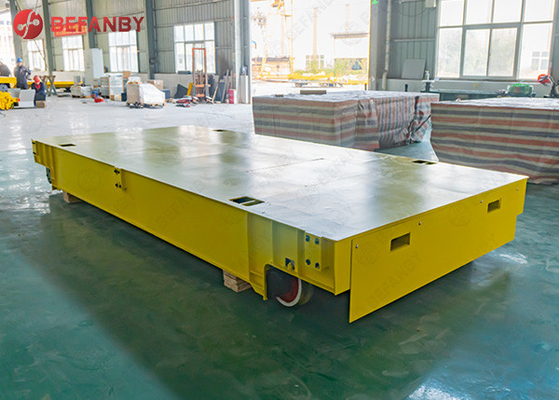

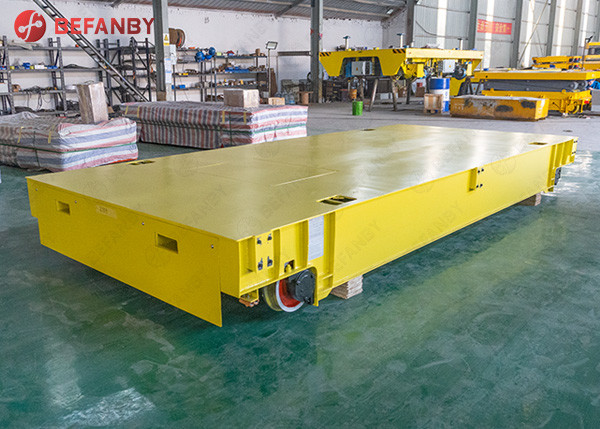

Detailed Images of factory transfer cart manufacturer
