Lithium Battery Electric Agv Steerable Lift Transfer Cart
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | AGV battery |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The automatic self propelled cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | Battery Powered | Warranty | 24 Months |
|---|---|---|---|
| Load Capacity | 1-1500 Ton | Application | Workshop, Production Line,factory |
| Running Ways | On Rails | Power Supply | Lithium Battery Power, Optional Power Supply |
| Characteristic | Automatic | Function | Lift |
| High Light | Steerable Lift Transfer Cart,Electric Agv Transfer Cart,Workshop Agv Cart |
||
Product Description

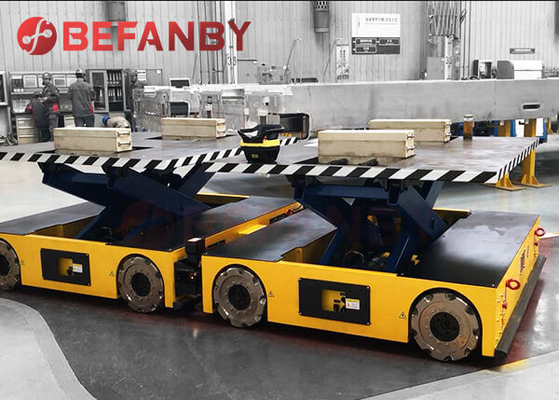

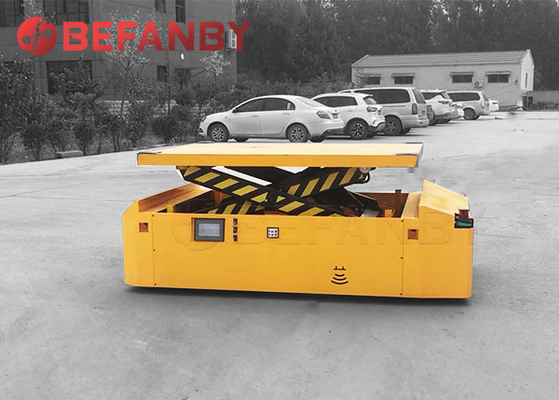

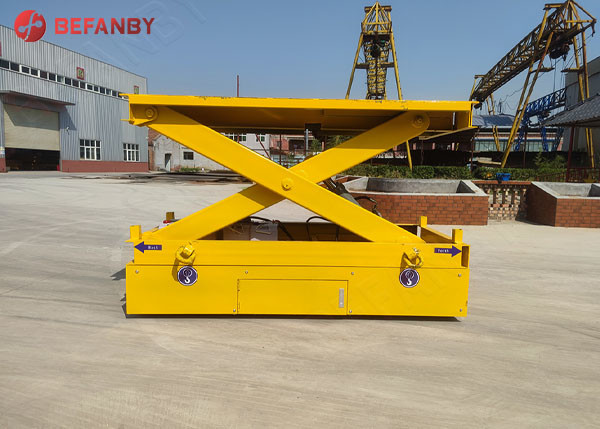

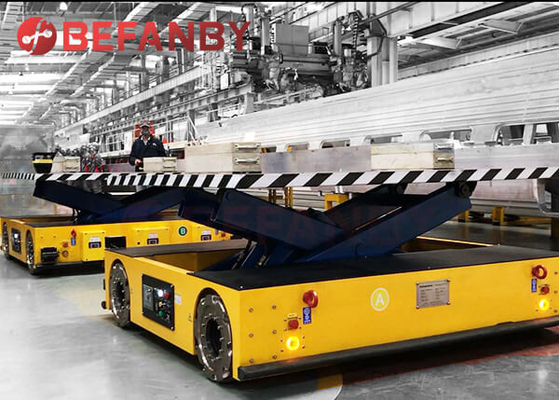

Lithium Battery Electric Agv Steerable Lift Transfer Cart
Our steerable lift transfer cart has a fully automatic system, can be set according to the program automatically to complete the handling task. This electric agv is equipped with hydraulic lifting device, which has strong bearing capacity. Automated guided vehicle uses mecanum wheel and can run in all directions.
At the forefront of factory automation, our agv factory automation solution is engineered to eliminate human intervention, ensuring complete safety and avoiding any chances of damage to products. Our AGV system enables inter-site transportation of materials, minimizing downtime and improving productivity. Our reliable unmanned, self-driving omnidirectional transfer cart provides a level of automation, precision, and safety never seen before in the material handling industry.
Application
Parts Details
Product Parameter
| Model | AGV-2T | AGV-5T | AGV-10T | AGV-20T | AGV-30T | AGV-40T | AGV-50T | |
| Rated load(t) | 2 | 5 | 10 | 20 | 30 | 40 | 50 | |
| Table Size | Length(mm) | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | 5500 |
| Widthmm) | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | |
| Heigth(mm) | 450 | 550 | 600 | 800 | 1000 | 1200 | 1300 | |
| Wheel Base(mm) | 1080 | 1650 | 1650 | 1650 | 1650 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ200 | Φ280 | Φ350 | Φ410 | Φ500 | Φ500 | Φ550 | |
| Battery Voltage(V) | 48 | 48 | 48 | 72 | 72 | 72 | 72 | |
| Weel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 142.8 | 174 | |
| Reference Wight(t) | 2.3 | 3.6 | 4.2 | 5.9 | 6.8 | 7.6 | 8 | |
Customized manufacture all kinds of transfer cart
