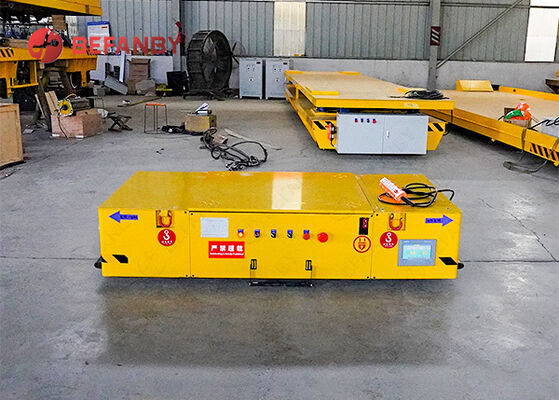

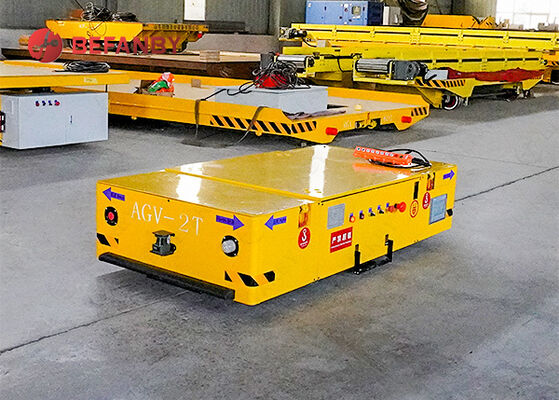

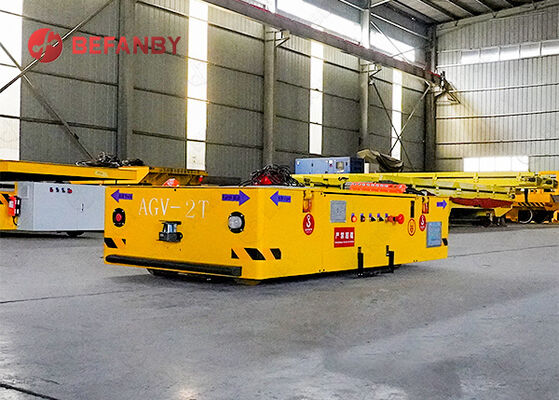

Professional AGV Trackless Transfer Cart with Intelligent Navigation and Customized Load Capacity Battery Operated
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | AGV |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The motorized slab trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Warranty | 24 Months |
|---|---|---|---|
| Load Capacity | Customized | Power Supply | Battery Operated |
| Port | Qingdao/Tianjin/Shanghai | Application | Heavy Industry,outdoor,construction |
| Materials | Steel | ||
| Highlight | Intelligent Navigation AGV,Customized Load Capacity AGV Trackless Transfer Cart,Battery Operated AGV Automatic Guided Vehicle |
||
Product Description
Professional AGV Trackless Transfer Cart With Intelligent Navigation
The AGV intelligent rail-guided vehicle is a highly flexible and customizable automated handling solution. Its greatest advantage lies in its intelligent navigation system, which supports multiple navigation methods such as laser navigation, magnetic strip navigation, and visual navigation. It can provide the optimal navigation mode based on different working environments and requirements. Through precise positioning and path planning, it can operate efficiently in complex environments such as production workshops, warehouses, and parts transportation, ensuring the stability and safety of material handling.
Products Details
Our Company
Customized Support
Product Specifications
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Length L (mm) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Width W (mm) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Height H (mm) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 |
| Motor Power (kW) | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 |
| Battery Capacity (Ah) | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Max Wheel Load (kN) | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight (t) | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 |
Key Features
AGV intelligent rail-guided vehicles not only improve work efficiency but also significantly reduce labor costs. With their autonomous navigation and path planning capabilities, they can automatically complete transportation tasks without human intervention, greatly enhancing the level of intelligent manufacturing in businesses. Whether in high-temperature environments, confined spaces, or complex layouts, AGV intelligent rail-guided vehicles can be customized in terms of body size and parameters. They are adaptable to various work environments, helping businesses achieve intelligent production and warehouse management.
Production Process
Related Products
Frequently Asked Questions
How can I operate the transfer cart?
Please don't worry, dear friend. The English user manual and parts manual will be delivered with your items together.
How to ensure your product quality?
We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary, our installation engineer will go to your factory to guide the installation.
Whether you can offer customized transfer car?
Yes, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
Whether there is professional technician assist our installation?
Yes. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance so that we can arrange technicians.
