Logistics Electric Automated Transfer Robot 30 Ton AGV
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | AGV battery |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The automatic self propelled cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | Battery Powered | Warranty | 24 Months |
|---|---|---|---|
| Load Capacity | 1-1500 Ton | Application | Workshop, Production Line,factory |
| Running Ways | On Rails | Power Supply | Lithium Battery Power, Optional Power Supply |
| Characteristic | Automatic | ||
| High Light | Logistics Electric Automated Transfer Robot,30 Ton AGV Transfer Robot,Production Line AGV Automatic Guided Vehicle |
||
Product Description

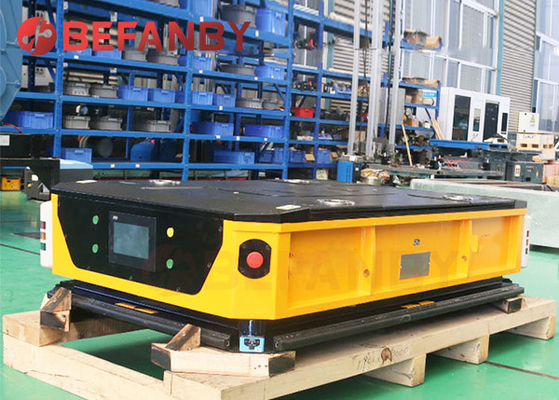

Logistics Electric Automated Transfer Robot 30 Ton AGV
Automatic transfer vehicle is an automated program transportation equipment, there are a variety of navigation methods to choose from, such as laser navigation, magnetic navigation, QR code navigation, etc. Our automated transfer robot can carry up to 1500 tons. The transportation path of the intelligent electric flat cart is very flexible. It can drive in a straight line, turn and rotate in a full direction of 360 degrees. It can be realized whether it is driven in a straight line at two working positions or run at multiple working positions.
The electric power of the electric flat car comes from the battery, which has strong endurance. The battery can be selected according to the needs of customers. Since the electric flat car AGV is equipped with an automated program, the auto guide vehicle can automatically run to the charging position for charging.
Automatic transfer vehicle is often used in logistics warehousing, production lines and other places, is a good helper of material handling.
Application
Parts Details
Product Parameter
| Model | AGV-2T | AGV-5T | AGV-10T | AGV-20T | AGV-30T | AGV-40T | AGV-50T | |
| Rated load(t) | 2 | 5 | 10 | 20 | 30 | 40 | 50 | |
| Table Size | Length(mm) | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | 5500 |
| Widthmm) | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | |
| Heigth(mm) | 450 | 550 | 600 | 800 | 1000 | 1200 | 1300 | |
| Wheel Base(mm) | 1080 | 1650 | 1650 | 1650 | 1650 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ200 | Φ280 | Φ350 | Φ410 | Φ500 | Φ500 | Φ550 | |
| Battery Voltage(V) | 48 | 48 | 48 | 72 | 72 | 72 | 72 | |
| Weel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 142.8 | 174 | |
| Reference Wight(t) | 2.3 | 3.6 | 4.2 | 5.9 | 6.8 | 7.6 | 8 | |
Customized manufacture all kinds of transfer cart
