Billet Factory Electric Long Pallet Transfer Cart
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The long pallet transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Application | Workshop, Warehouse, Production Line |
|---|---|---|---|
| Running Speed | 0-20m/min | Load Capacity | 1-1500 Ton Payload |
| Power Supply | Battery Powered | Product Name | Billet Factory Electric Long Pallet Transfer Cart |
| Material | Steel | ||
| High Light | Long Pallet Transfer Cart,Billet Factory Transfer Cart,Electric Material Transfer Carts |
||
Product Description

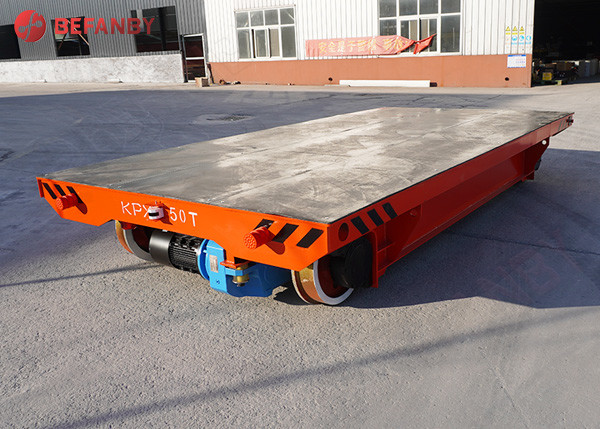

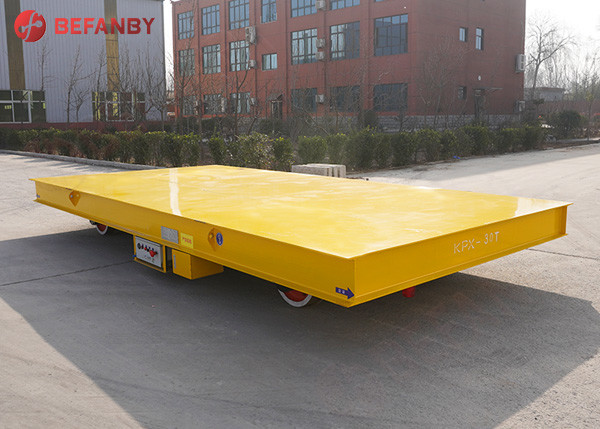

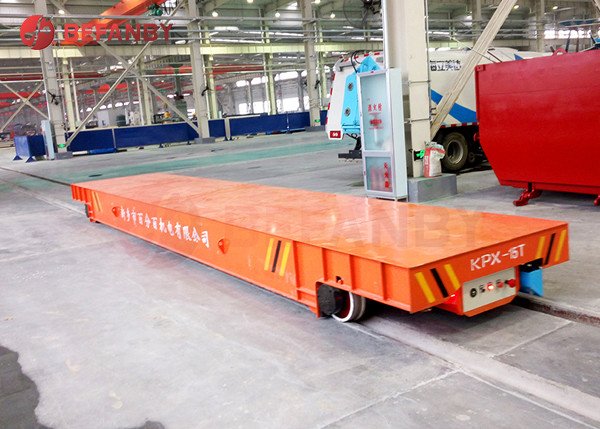

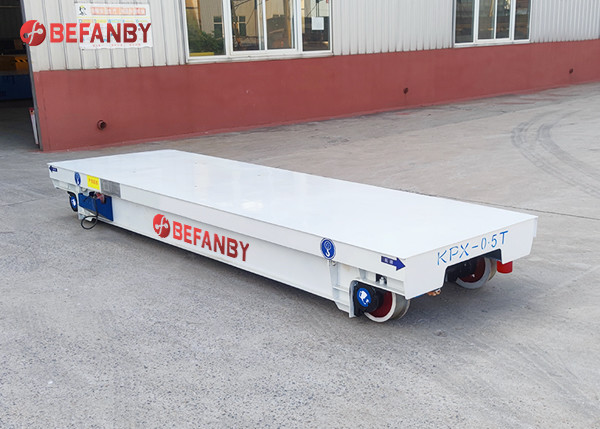

Billet Factory Electric Long Pallet Transfer Cart
Product Description
Long pallet electric transfer cart are widely used in factories, heavy industry, light industry, construction sites, warehouses and other occasions. As a kind of heavy material transportation equipment, electric flat cart can easily carry thousands of tons of goods, to meet the needs of enterprises in transportation.
The main components of electric transfer cart include: frame, cast steel wheels, motor, reducer, brake, safety protection device, battery (battery is optional), charging machine, remote control. The frame is made of thickened steel plate, which is not easy to sag even when carrying heavy loads. Cast steel wheel bearing capacity is strong, not easy to rust, not easy to wear. Our batteries are maintenance-free, saving costs for customers. We can provide portable chargers with a small footprint and easy charging. There are many options for safety devices, sound and light alarm lights are required, we will also install laser sensors and anti-collision buffers according to customer needs.
There are two ways to operate the electric flat cart, one is through the handle operation, one is through the remote control operation. Both modes of operation are easy to learn, and the staff can easily operate the forward, backward and turn of the electrical transfer cart.
Our advantage is that we can customize our solutions according to the needs of our customers. You just need to tell us your needs and we will have a professional design team to make the drawings.
Product Details
Product Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
