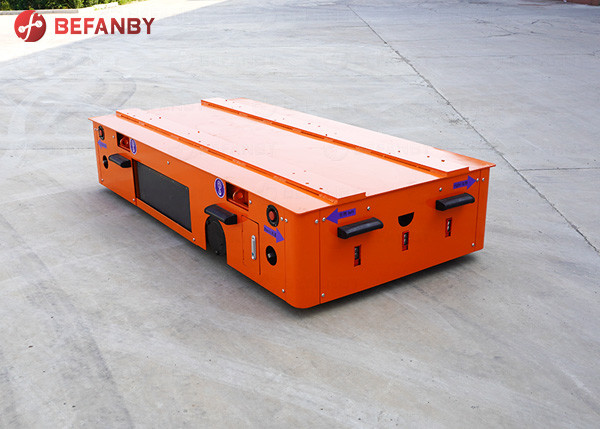

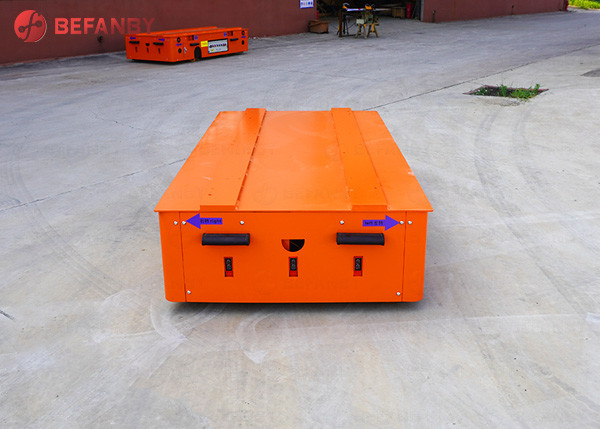

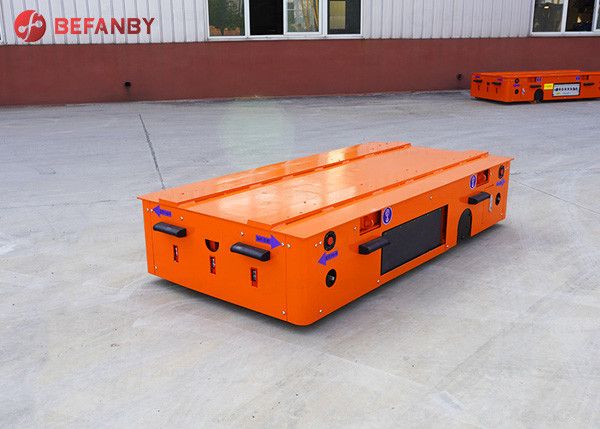

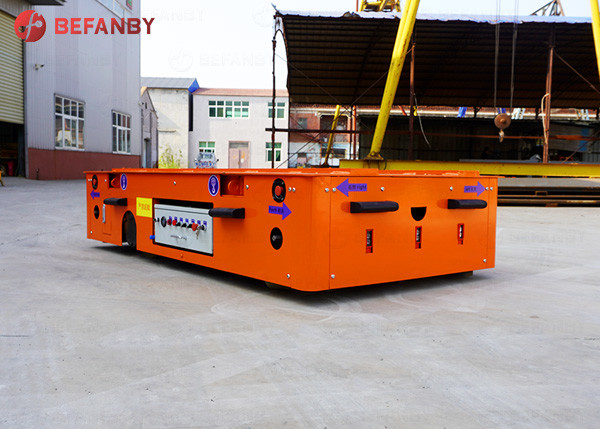

Battery Power Steerable Trackless Transfer Trolley 20 Ton

Product Description

In order to improve efficiency and save energy, various transportation equipment is constantly being developed and innovated. One of the most interesting trackless transfer trolley, with the help of battery power, has the ability to move in all directions, rotation and vertical and horizontal movement, greatly improving the flexibility of logistics operations.

This battery powered trackless trolley uses advanced electric technology, is not limited by rail, and can operate freely in a variety of different industrial scenarios. Its unique ability to move in all directions allows it to easily navigate tight Spaces and turn and rotate effortlessly. This is undoubtedly an important breakthrough for the narrow warehouse and production line, which greatly improves the efficiency of logistics operations. Of course, during the development phase, engineers also equipped this transport vehicle with advanced safety systems to ensure its safety when operating in small environments.

Even more exciting is that this battery-powered trackless transfer trolley also has the ability to move horizontally and horizontally. This ability to move horizontally and horizontally enables it to quickly adapt to different production needs and efficiently complete the transfer of materials. In modern industrial production, the rapid transfer and flexible allocation of materials is a key task, and the vertical and horizontal movement of this trackless transport vehicle undoubtedly brings great convenience and advantages to the supply chain management of enterprises.

In addition, this battery-powered trackless transport vehicle also has the characteristics of flexible rotation. It can rotate 360 degrees without backing up or turning around. This ability to rotate flexibly allows it to complete complex operations in small Spaces. Whether loading and unloading goods, handling materials, or making layout adjustments in a small work area, this trackless transporter is easily qualified. Not only that, it can also adjust the speed and sensitivity according to the needs of different scenarios to achieve higher operating efficiency.

The battery powered trackless transporter's ability to move in all directions, rotate, and move horizontally and horizontally has transformed the transportation industry. It not only improves the flexibility and efficiency of logistics operations, but also saves energy and reduces operating costs. With the continuous progress of science and technology, it is believed that this trackless transport vehicle will be more widely used in the future. Logistics and transportation will become more efficient, intelligent and sustainable, injecting new impetus into the development of various industries.

Application

Product Details

Product Parameter

Model		BWP-2T	BWP-5T	BWP-10T	BWP-15T	BWP-20T	BWP-25T	BWP-30T	BWP-40T	BWP-50T	BWP-60T	BWP-70T	BWP-80T	BWP-100
Rated load(t)		2	5	10	15	20	25	30	40	50	60	70	80	100
Table Size	Length(L)	2000	2200	2300	2400	2400	3500	3500	5000	5500	5600	6000	6500	6600
	Width(W)	1500	2000	2000	2100	2200	2200	2200	2500	2600	2500	2600	2800	3000
	Heigth(H)	450	500	550	600	600	700	700	800	800	850	900	950	1200
Wheel Base(mm)		1080	1650	1650	1600	1650	1650	1650	2000	2000	1800	1850	1950	2000
Axle Base(mm)		1380	1680	1700	1830	1850	2700	2700	3600	2850	2900	3500	3500	4000
Wheel Dia.(mm)		Φ250	Φ300	Φ350	Φ400	Φ400	Φ450	Φ450	Φ500	Φ600	Φ600	Φ600	Φ600	Φ600
Wheel Quantity(pcs)		4	4	4	4	4	4	4	4	4	4	6	6	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75	75	75	75
Running Speed(mm)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-18
Motor Power(kw)		2*1.2	2*1.5	2*2.2	2*3.5	2*4.5	2*5.5	2*5.5	2*6.3	2*7.5	2*10	2*12	30	40
Batter Capacity(Ah)		250	180	250	330	400	400	450	440	500	600	600	800	1000
Battery Voltage(V)		24	48	48	48	48	48	48	72	72	72	72	72	72
Running Time When Full Load		2.5	2.88	2.8	2.3	2.2	1.8	2	2.6	2.5	2.2	1.8	2	1.9
Running Distance for One Charge(Km)		3	3.5	3.4	2.8	2.7	2.2	2.4	3.2	3	2.7	2.2	2.4	2.3
Max Wheel load(KN)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	152	185	190
Reference Wight(t)		2.3	3.6	4.2	5.5	5.9	6.5	6.8	7.6	8	10.8	12.8	14.6	26.8



Product Feature
