Laser Detect Sensor Mold Factory Electric Transport Cart
Place of Origin | Henan,China |
---|---|
Brand Name | BEFANBY |
Certification | CE,SGS,ISO9001 |
Model Number | BWP |
Minimum Order Quantity | 1 set/sets |
Price | Negotiation |
Packaging Details | The trackless transport cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
Delivery Time | 30-40 days as usual delivery,20-30days for urgent delivery |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColor | Customized | Warranty | 12 Months |
---|---|---|---|
Load Capacity | Customized | Power Supply | Battery Operated |
Port | Qingdao/Tianjin/Shanghai | Application | Heavy Industry,mold Factory,workshop |
Materials | Steel | ||
High Light | Workshop Steel Trackless Transfer Cart,Trackless Electric Transport Cart,Sensor Mold Factory Transport Cart |

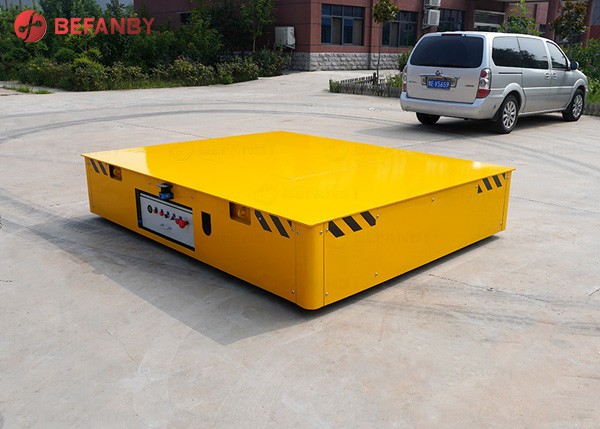

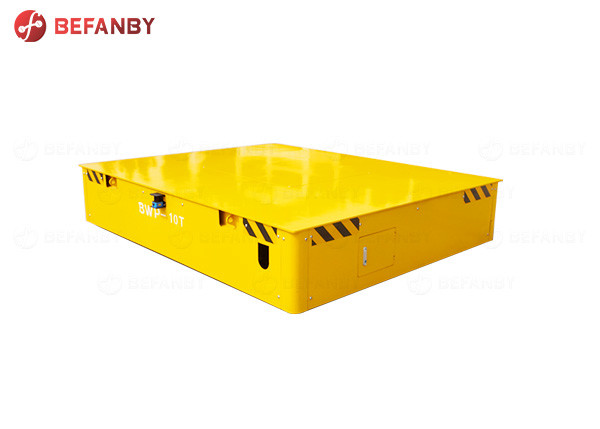

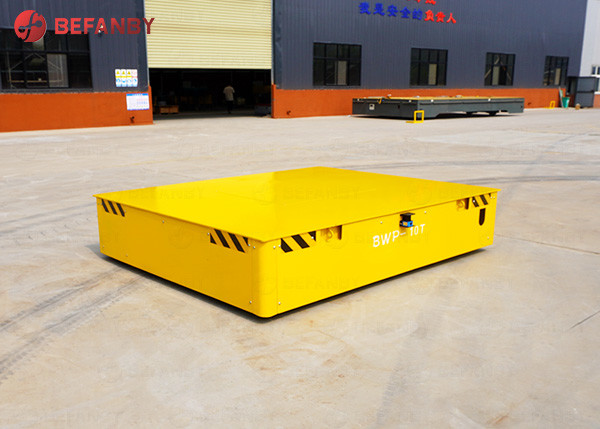

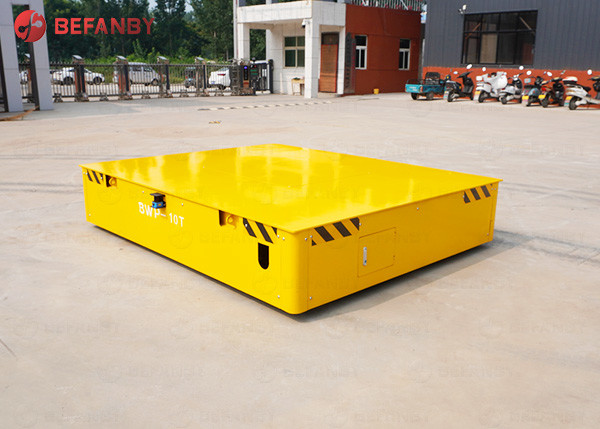

Laser Detect Sensor Mold Factory Electric Transport Cart
Product Description
The mold factory needs to move heavy loads, so we designed this trackless cart equipped with laser sensors.
These carts revolutionized the way we moved heavy molds around the factory. Their power source is more environmentally friendly and costs less than conventional gasoline cars. The laser detection sensor also ensures a higher level of safety, as it can detect any obstacles in the road and stop automatically.
Trackless electric flat carts allow us to move materials faster and more efficiently, resulting in higher productivity and faster turnaround times for our customers. We believe that by adopting new technologies and innovations, such as electric transporters, we can continue to improve our production efficiency and deliver better results for our customers.
Application
Product Details
Product Parameter
Model | BWP-2T | BWP-5T | BWP-10T | BWP-15T | BWP-20T | BWP-25T | BWP-30T | BWP-40T | BWP-50T | BWP-60T | BWP-70T | BWP-80T | BWP-100 | |
Rated load(t) | 2 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 100 | |
Table Size | Length(L) | 2000 | 2200 | 2300 | 2400 | 2400 | 3500 | 3500 | 5000 | 5500 | 5600 | 6000 | 6500 | 6600 |
Width(W) | 1500 | 2000 | 2000 | 2100 | 2200 | 2200 | 2200 | 2500 | 2600 | 2500 | 2600 | 2800 | 3000 | |
Heigth(H) | 450 | 500 | 550 | 600 | 600 | 700 | 700 | 800 | 800 | 850 | 900 | 950 | 1200 | |
Wheel Base(mm) | 1080 | 1650 | 1650 | 1600 | 1650 | 1650 | 1650 | 2000 | 2000 | 1800 | 1850 | 1950 | 2000 | |
Axle Base(mm) | 1380 | 1680 | 1700 | 1830 | 1850 | 2700 | 2700 | 3600 | 2850 | 2900 | 3500 | 3500 | 4000 | |
Wheel Dia.(mm) | Φ250 | Φ300 | Φ350 | Φ400 | Φ400 | Φ450 | Φ450 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | Φ600 | |
Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 6 | 6 | 8 | |
Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
Running Speed(mm) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
Motor Power(kw) | 2*1.2 | 2*1.5 | 2*2.2 | 2*3.5 | 2*4.5 | 2*5.5 | 2*5.5 | 2*6.3 | 2*7.5 | 2*10 | 2*12 | 30 | 40 | |
Batter Capacity(Ah) | 250 | 180 | 250 | 330 | 400 | 400 | 450 | 440 | 500 | 600 | 600 | 800 | 1000 | |
Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | 72 | 72 | 72 | |
Running Time When Full Load | 2.5 | 2.88 | 2.8 | 2.3 | 2.2 | 1.8 | 2 | 2.6 | 2.5 | 2.2 | 1.8 | 2 | 1.9 | |
Running Distance for One Charge(Km) | 3 | 3.5 | 3.4 | 2.8 | 2.7 | 2.2 | 2.4 | 3.2 | 3 | 2.7 | 2.2 | 2.4 | 2.3 | |
Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 152 | 185 | 190 | |
Reference Wight(t) | 2.3 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 |
