10T DC Motor Transfer Cart For Battery Powered
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-15T |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The material transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Application | Workshop,machinery Industry, Assembly Line,Billet Industry |
|---|---|---|---|
| Running Speed | 0-20m/min | Load Capacity | 1-1500 Ton |
| Power Supply | Battery Powered | Product Name | 10T DC Motor Transfer Cart For Battery Powered |
| Material | Steel | ||
| High Light | 10T DC Motor Transfer Cart,DC Motor Transfer Cart,Battery Powered Motor Transfer Cart |
||
Product Description

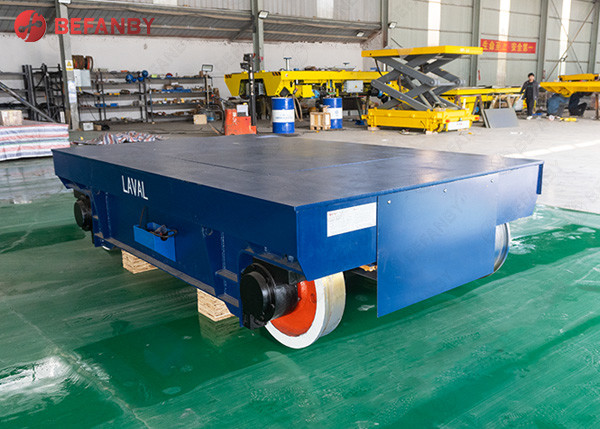

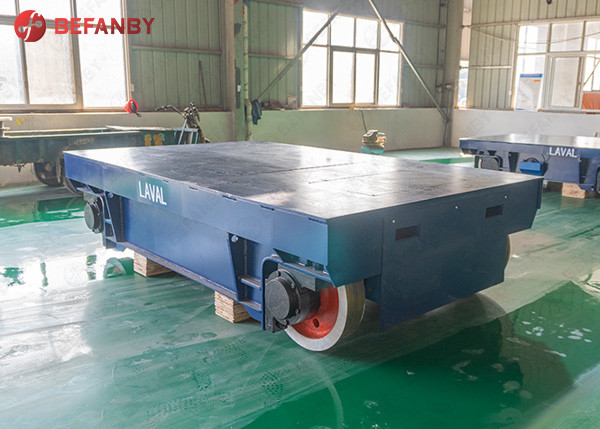

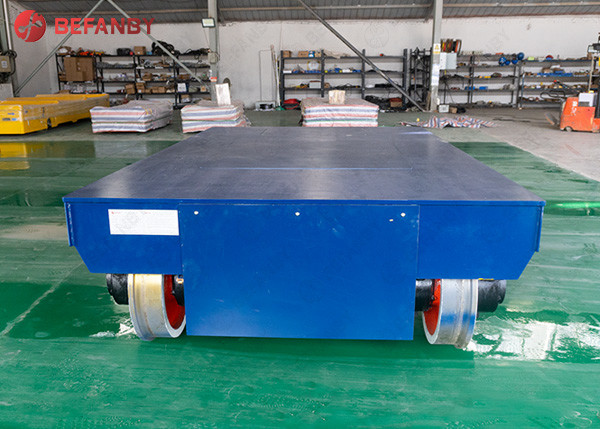

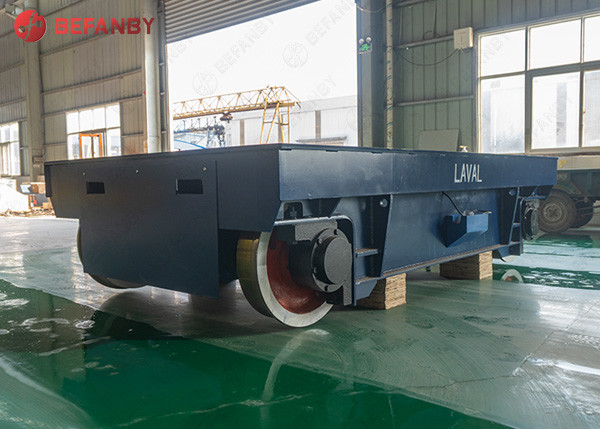

10T DC Motor Transfer Cart For Battery Powered
Product Description
Power supply: Rail electric trannsfer carts usually use batteries as power sources, usually DC batteries, which are stored in the battery pack of the electric transfer carts.
Control system: The electric transfer cart is equipped with a control system, which is responsible for monitoring and controlling the operation of the electric motor. The system receives instructions from an operator or automated system and controls the speed and direction of the motor accordingly.
Motor type: Rail electric transfer carts use DC motors or AC motors as driving devices. DC motors are simple and easy to control and are widely used in rail electric transfer carts, while AC motors have advantages in energy consumption utilization, load capacity, etc.
Power transmission and control signals: The electric motor transmits power to the wheels or rails through the transmission device, and the control system sends control signals to the electric motor to control the rotation speed and steering of the electric motor.
Product Details
Product Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
