Support Customized Battery Railway Transfer Trolley
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-15T |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The material transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Application | Workshop,machinery Industry, Assembly Line,Billet Industry |
|---|---|---|---|
| Running Speed | 0-20m/min | Load Capacity | 1-1500 Ton |
| Power Supply | Battery Powered | Product Name | Support Customized Battery Railway Transfer Trolley |
| Material | Steel |
Product Description

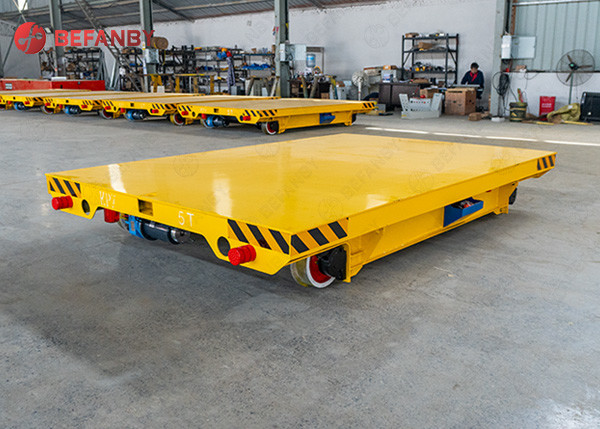

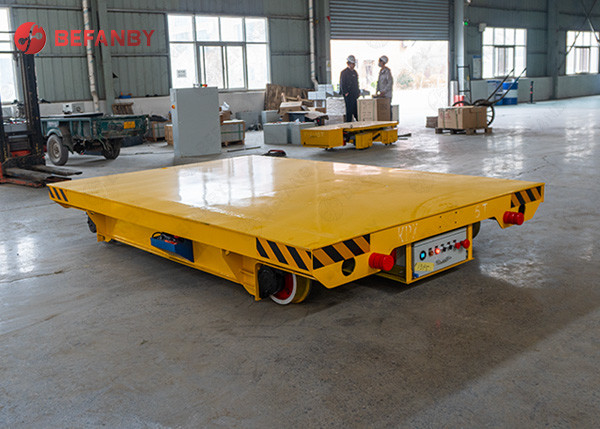

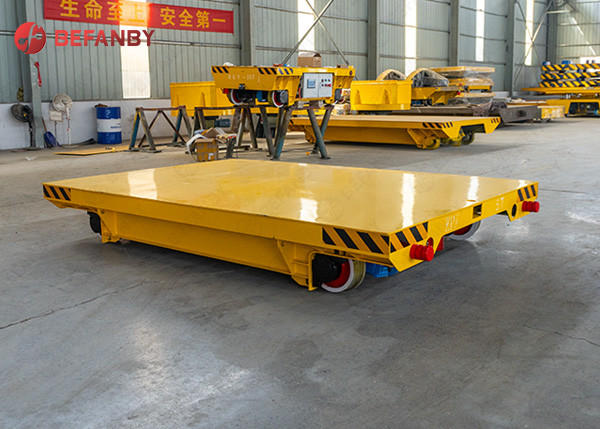

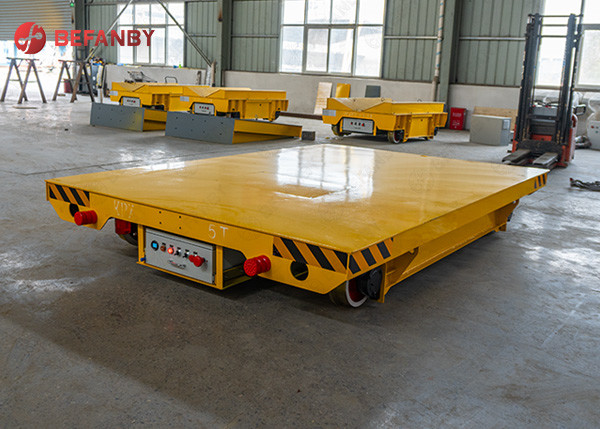

Support Customized Battery Railway Transfer Trolley
Product Description
The rail electric transfer cart is a convenient and practical means of transportation. It uses batteries as the power source, giving it the advantage of unlimited distance. It can be used flexibly in various situations, especially in explosion-proof and turning environments.
First of all, the battery power supply system of the rail electric transfer cart is very reliable. As a power source, the battery can continuously provide stable electrical energy to make the cart run smoothly. Unlimited running distance greatly improves work efficiency. Whether it is long-distance transportation or short-distance transportation, rail electric transfer carts can easily handle it.
Secondly, it is equipped with a multi-functional operating system to make it easy to operate. At the same time, the vehicle is also equipped with humanized safety facilities, such as anti-collision safety edges, emergency stop buttons, etc., to ensure personnel safety.
It not only improves work efficiency, but also ensures personnel safety and comfort. Whether in factories, warehouses or other places, rail electric transfer carts can play an excellent role!
Product Details
Product Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
