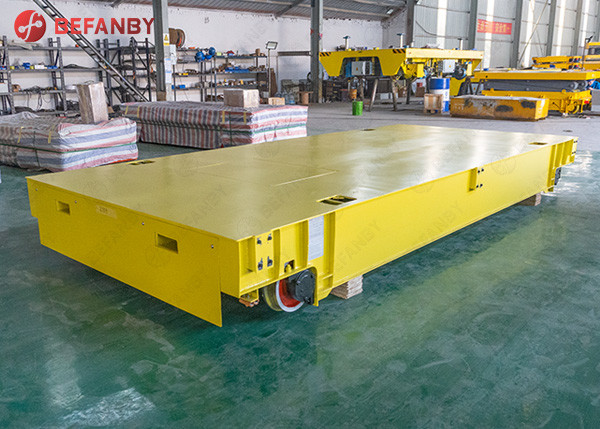

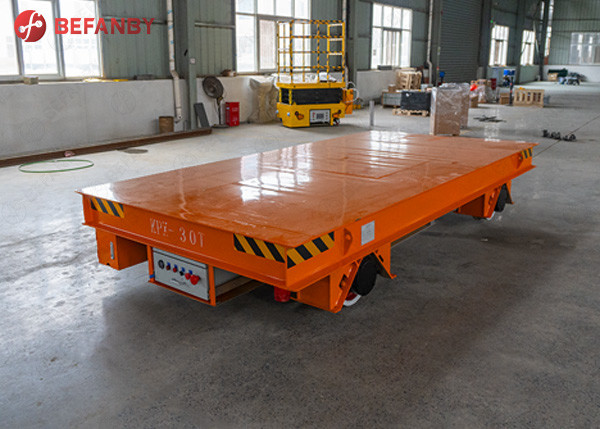

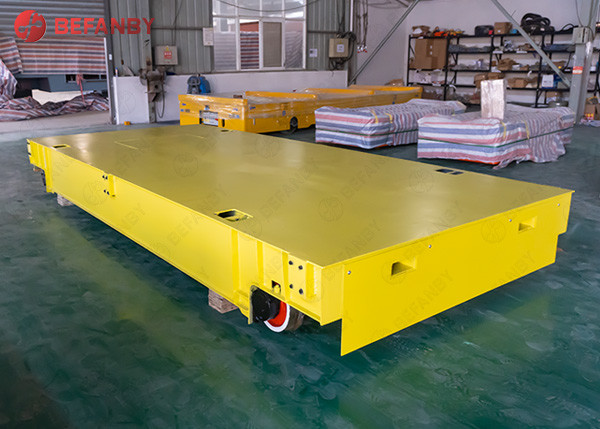

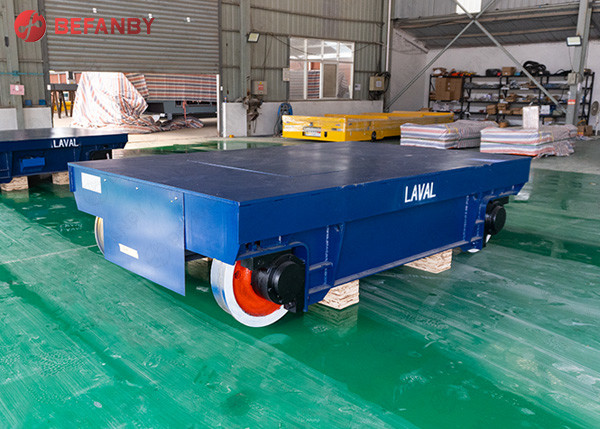

14 Ton DC Motor Battery Rail Transfer Cart
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-20T |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The material transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Application | Workshop,machinery Industry, Assembly Line,Billet Industry |
|---|---|---|---|
| Running Speed | 0-20m/min | Load Capacity | 1-1500 Ton |
| Power Supply | Battery Powered | Product Name | 14 Ton DC Motor Battery Rail Transfer Cart |
| Material | Steel | ||
| Highlight | DC Motor Battery Rail Transfer Cart,14 Ton Rail Transfer Cart,14 Ton Battery Rail Transfer Cart |
||
Product Description
14 Ton DC Motor Battery Rail Transfer Cart
Product Description
Rail laying
The rail laying of material transfer carts has an important impact on their performance. Due to the different weights of objects and the lengths of the objects being transported, the length of the rail laid for material transfer carts is not limited. At the same time, rail laying should also take into account environmental factors such as slope and ground flatness. Therefore, a reasonable rail design is conducive to improving the operating efficiency and life of material transfer carts.
Transfer cart DC motor
The power system of the material transfer cart adopts a transfer cart DC motor, which has a large and stable starting torque and can meet the starting and stopping requirements of objects. At the same time, the power of the motor is higher than that of other types of motors, and it is suitable for conveying long distances and heavy objects.
Safety control system
In order to ensure the safety of operators and the production environment, the safety control system of the material transfer cart is indispensable. The safety control system consists of multiple components, such as emergency stop switches, anti-collision devices, etc. During operation, if a safety hazard is detected, the control system can take quick action to avoid casualties and equipment damage.
In short, the rail laying, transfer cart DC motor and safety control system of the material transfer cart are important factors affecting its performance.
Product Details
Product Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
