Large Capacity Flatbed Material Track Transfer Carts

Place of Origin	Henan,China
Brand Name	BEFANBY
Certification	CE,SGS,ISO9001
Model Number	KPX-20T
Minimum Order Quantity	1 set/sets
Price	Negotiation
Packaging Details	The material transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time	40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms	L/C, T/T, Western Union
Supply Ability	1500 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Color	Customized	Application	Workshop,machinery Industry, Assembly Line,Billet Industry
Running Speed	0-20m/min	Load Capacity	1-1500 Ton
Power Supply	Battery Powered	Product Name	Large Capacity Flatbed Material Track Transfer Carts
Material	Steel
Highlight	Large Capacity Track Transfer Carts , Flatbed Material Track Transfer Carts

Leave a Message

Product Description

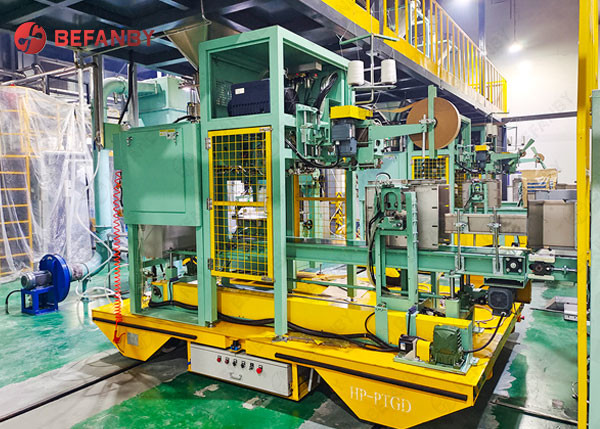

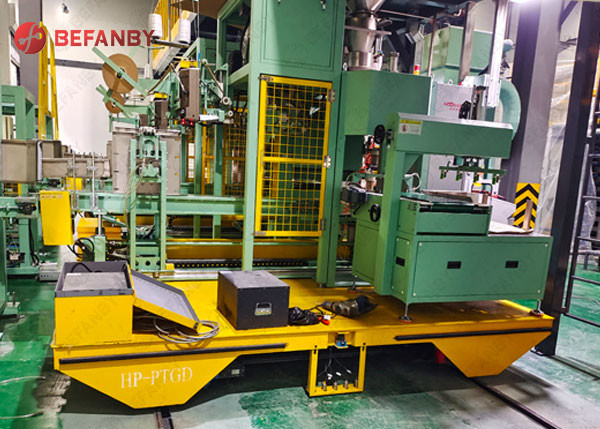

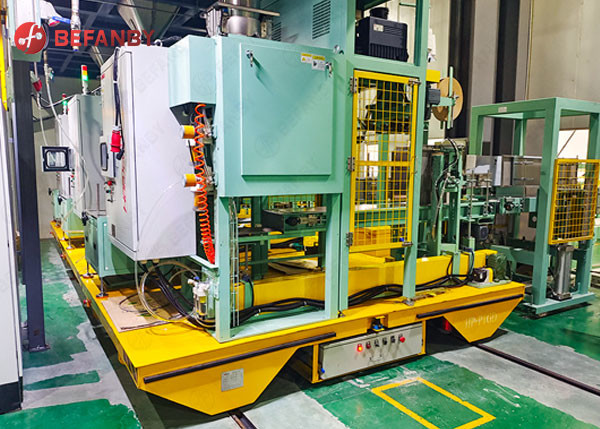

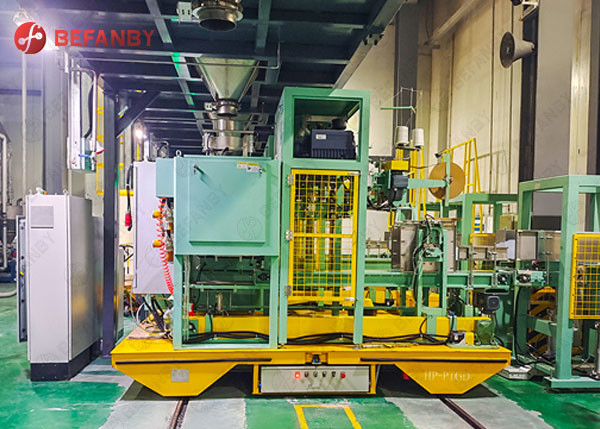

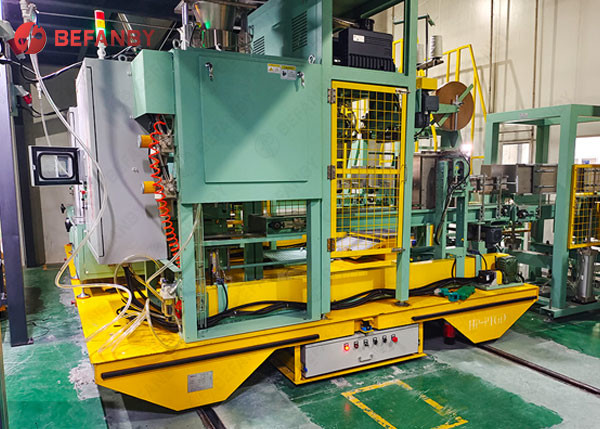

Large Capacity Flatbed Material Track Transfer Carts

Product Description

With the continuous development of the logistics industry, material handling vehicles are becoming more and more popular. Among them, rail-laid material handling vehicles have many advantages and excellent maneuverability. Become a handling assistant for corporate factories.

Using DC motors, this type of motor has the advantages of high energy efficiency and stable starting. With such motors, material handling vehicles not only operate smoothly during the process, but also save energy.

In addition, we can also provide customers with customized services. Different customers have different needs, such as different table sizes and body colors. Here, we promise excellent after-sales service quality and specially arrange technicians to be responsible for ensuring customer needs.

In general, our material handling vehicle is a high-performance product with many advantages. We are willing to provide comprehensive pre-sales and after-sales services, as well as formulate specific solutions to meet customer needs.

Large Capacity Flatbed Material Track Transfer Carts 0

Product Details

Product Parameter

Model		KPX-10t	KPX-16t	KPX-25t	KPX-30t	KPX-40t	KPX-50t	KPX-63t	KPX-80t	KPX-100t	KPX-150t
Rated Load		10	16	25	30	40	50	63	80	100	150
Table size	Length(L)	3600	4000	4500	4500	5000	5500	5600	6000	6500	10000
	Width(W)	2000	2000	2200	2200	2500	2500	2500	2600	2800	3000
	Height(H)	500	550	600	600	650	650	700	800	900	1200
Wheel Base		2600	2800	3200	3200	3800	4200	4300	4700	4900	7000
Rail Inner Gauage		1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel Diameter		300	350	400	400	500	500	600	600	600	600
Wheel Quantity		4	4	4	4	4	4	4	4	4	8
Ground Clearance		50	50	50	50	50	50	75	75	75	75
Running Speed		25	20	20	20	20	20	20	20	20	18
Motor Power		2	2.2	3.5	4	5	6.3	8	10	15	15
Battery Capacity		160	180	250	250	300	330	400	400	440	600
Battery Voltage		48	48	48	48	48	48	48	72	72	72
Max Wheel Load		42.6	64.5	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Reference Weight		4.2	5.5	6.5	6.8	7.6	8	10.8	12.8	14.6	26.8
