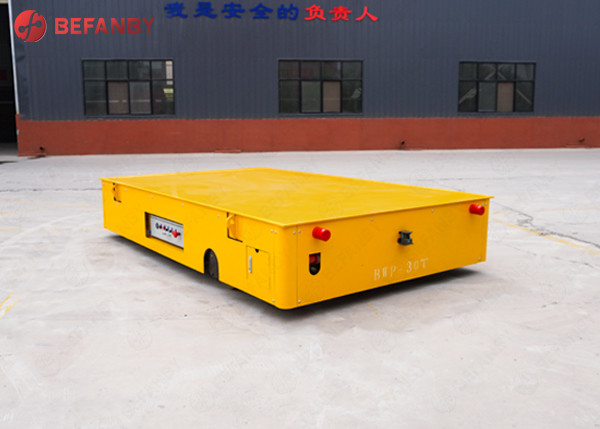

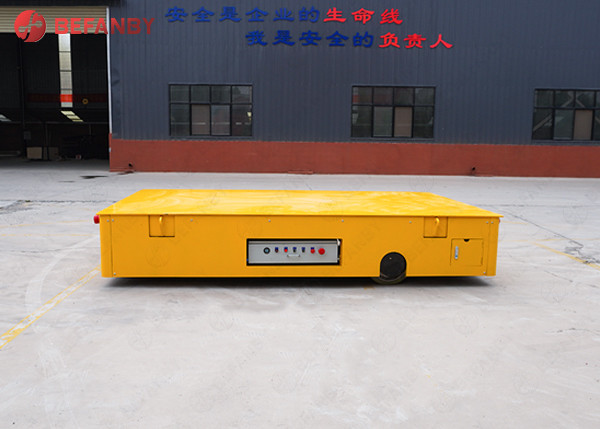

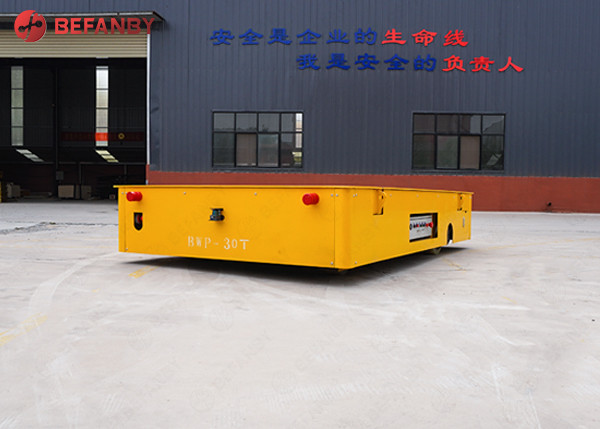

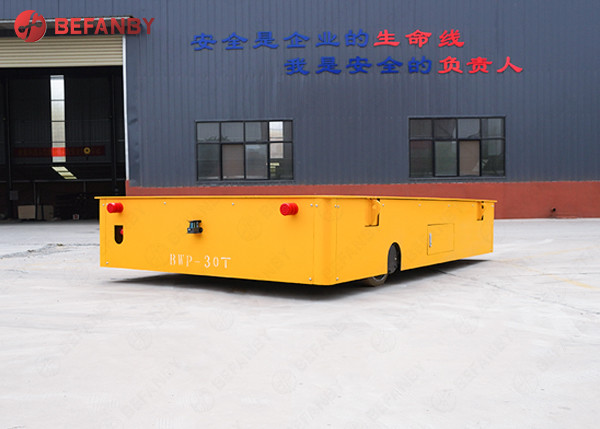

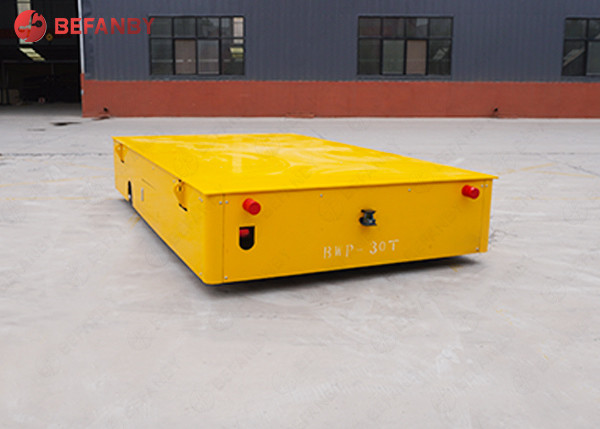

Large Capacity Steel Plant Battery Trackless Transfer Trolley
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | BWP |
| Minimum Order Quantity | 1 set/sets |
| Price | $4000-$7000/ Per Set |
| Packaging Details | The heavy duty plant trailer will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 600 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Color | Customized |
|---|---|---|---|
| Warranty | 12 Months | Load Capacity | 1-58T |
| Running Speed | 0-20m/min | Running Distance | Unlimited |
| Power Supply | Battery Powered | Port | Qingdao/Tianjin/Shanghai |
| Application | Industial Field | Advantage | Flexible,turnning Free |
| Operation Method | Hand Pendant + Remote Control | Product Name | Large Capacity Steeel Plant Battery Trackless Transfer Trolly |
| Highlight | Large Capacity trackless transfer trolley,Steel Plant trackless transfer trolley,Battery trackless transfer trolley |
||
Product Description
Large Capacity Steeel Plant Battery Trackless Transfer Troelly
The material transfer cart is an advanced transportation equipment. It has excellent characteristics such as no need to lay rails and can travel freely. The equipment uses a DC motor, which starts smoothly, is flexible and maneuverable, and can adapt to various working environments and scenarios. At the same time, the intelligent control system makes the vehicle's transportation work more efficient and faster, greatly improving work efficiency.
The material transfer cart has an unlimited running distance, allowing it to work in various occasions, such as factories, airports, ports, hospitals, etc. The design that does not require laying rails reduces damage to the ground environment and simplifies the maintenance and use costs of the equipment. As an efficient, environmentally friendly and energy-saving logistics equipment, the material transfer cart has become an indispensable part of the modern logistics field.
In short, the material transfer cart is a modern logistics equipment with good mobility and intelligent control system. Its use can not only improve work efficiency, but also reduce noise pollution and save energy, which is very important for achieving the goal of sustainable development.
BEFANBY could give some advice according to the plant site . Also give a reasonable solution for every client.
2. Parameter of the Chinese manufacturer electric orange color heavy duty plant trailer for cement floor
| Model | BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-63T | BWP-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Remark | The technical parameter of the Chinese manufacturer electric orange color heavy duty plant trailer for cement floor only can be make reference above.All can be customized manufacturing as per your true demand. please contact us if any doubt. Our professinal engineer will help you solve the transfer problems in any time. | |||||||
Get the competitive quotation, please do not hesitate to contact with us.
3. Processing details of the Chinese manufacturer electric orange color heavy duty plant trailer for cement floor
Brief introduction----Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd
How to choose the suitable transfer trailer?
All of our transfer trailer, all customized as client's requirement, for choose the most suitable handling trolley,please kindly providing the following information:
· Transfer or handling what material/cargo?
· What capacity do you need?
· This transfer trolley is running on rails or ground(floor)?
· Your requirement for table size:length,width and height?
· How about the running distance?
. How many hours does the transfer car work one day?
