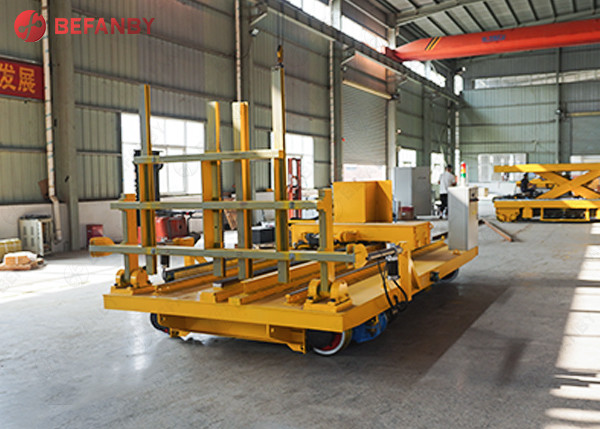

Pipe Factory Chain Plate Battery Handling Trolleys
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The material transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Application | Workshop,machinery Industry, Assembly Line,Billet Industry |
|---|---|---|---|
| Running Speed | 0-20m/min | Load Capacity | 1-50 Ton |
| Power Supply | Battery Powered | Product Name | Pipe Factory Chain Plate Battery Handling Trolleys |
| Material | Steel | ||
| Highlight | Chain Plate Battery Handling Trolleys,Pipe Factory Battery Handling Trolleys,Handling battery operated transfer trolley |
||
Product Description
Pipe Factory Chain Plate Battery Handling Trolleys
Product Description
The intelligent electric transfer cart is an advanced transportation equipment with many advantages. Its laying track can make it more stable during transportation, reduce friction and vibration during transportation, and play a good protective role in cargo transportation.
Secondly, the power system uses a DC motor, which can provide sufficient power to allow the transfer cart to maintain a stable and efficient operating speed when going up and down slopes and long-distance transportation, and its energy consumption is low, which is beneficial to environmental protection.
The safety system is also an indispensable part of the transfer cart. It can monitor the safety status of the cart during operation through sensors, safety monitoring devices and other means, prevent accidents during transportation, and protect the safety of carts and goods.
The control system can enable the transfer cart to realize automatic operation. During transportation, the operation status of the cart can be accurately controlled through the linkage of the computer system and sensors, thereby reducing manual intervention and improving transportation efficiency.
Secondly, when used in explosion-proof occasions, the intelligent electric transfer cart can reduce the possibility of dust and sparks from explosive materials in explosion-proof occasions by reducing friction and vibration, greatly increasing the safety of transportation.
In short, smart electric transfer carts have many advantages that can help us complete work tasks more effectively, improve work efficiency, and protect the safety of goods and personnel during transportation.
Product Details
Product Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
