Steel Factory Battery Traverser Transfer Cart With Rail
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The battery operated transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 24 Months | Port | Qingdao/Tianjin/Shanghai |
|---|---|---|---|
| Load Capacity | 1-1500 Ton Payload | Operation Type | Operation Handle + Remote Control |
| Power Supply | Battery Operated | Advantage | More Than 20 Years' Experience For Transfer Cart |
| High Light | Steel Factory Battery Transfer Cart,Rail Battery Transfer Cart,Battery Traverser Transfer Cart |
||
Product Description
Steel Factory Battery Traverser Transfer Cart With Rail
Rail electric transfer carts are a common type of transportation equipment in the current industrial transportation field. The most important point is that tracks need to be laid. This laying method can ensure that the transportation equipment can run stably and safely on the track, and can also improve the wear resistance and anti-skid ability of the equipment to a certain extent.
Cast steel wheels are one of the indispensable parts of rail electric transfer carts. They have high-strength anti-skid and wear resistance, and can fully play their role in the transportation process to ensure the transportation efficiency and safety of the equipment.
Of course, in addition to cast steel wheels, the safety system, power system and control system of rail electric transfer carts are also very important. These three systems work together to ensure that the equipment always maintains an efficient, stable and safe transportation state during operation.
Therefore, in the process of using rail electric transfer carts, it is necessary to conduct comprehensive inspection and maintenance of the equipment to ensure that the equipment can operate normally and reduce the occurrence of equipment failures and accidents.
Rail electric transfer carts play an important role in modern industrial transportation and provide efficient power for the development of industrial production.
Application range: suitable for transportation in various environments, widely used in metallurgy,electromechanical, heavy industry, shipbuilding, light industry and other enterprises.
Technical Parameter
1. Model: KPX
2. Capacity: 20ton
3. Table Size: 3500*1200*600mm
4. Power: Battery Powered
5. Running Speed: 0-20m/min
6. Operation: Hand Pendant + Remote Control
Customized Manufacturer
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

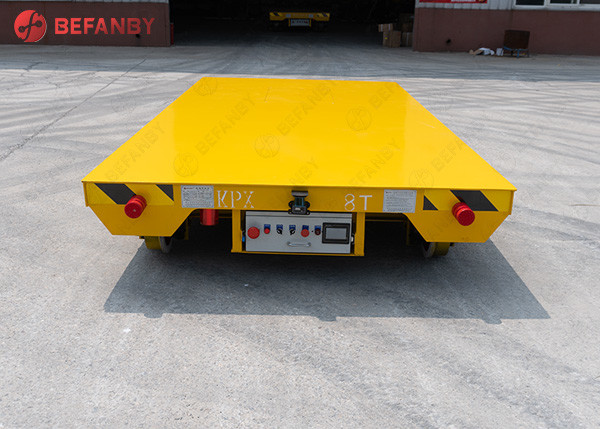

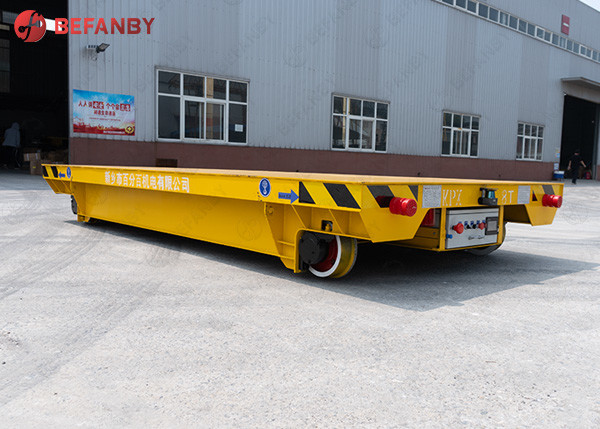

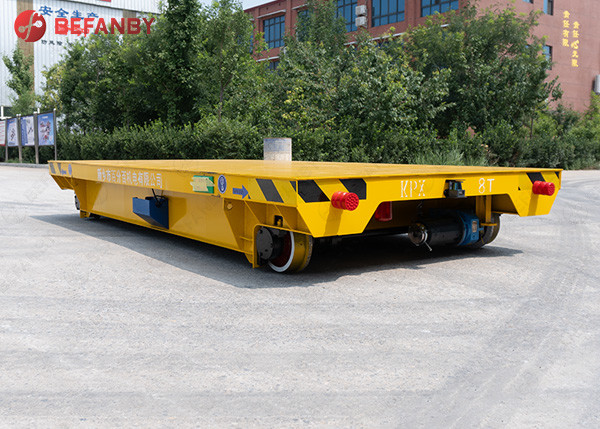

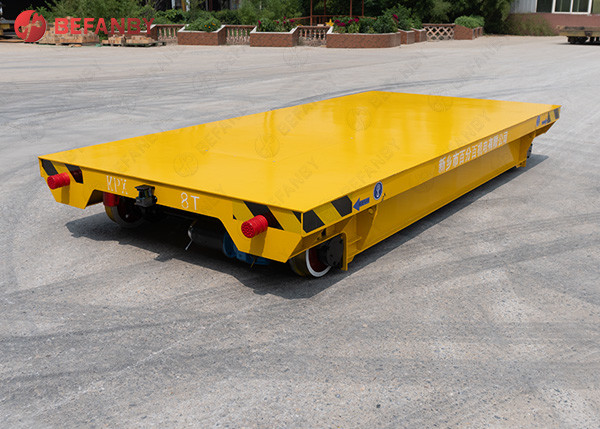

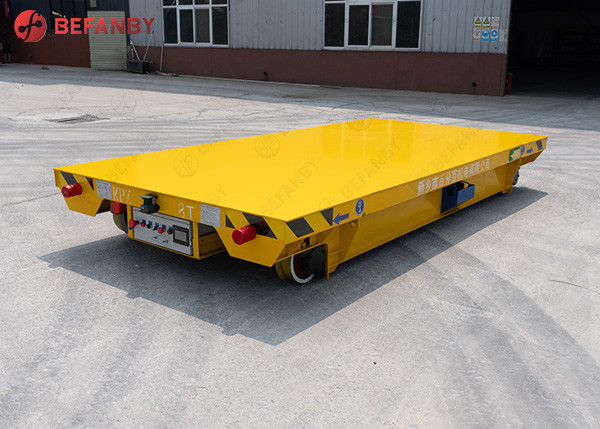

Detailed Images of factory rail cart manufacturer
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
