Intelligent Control System 28 Ton Rail Transfer Cart

  • Intelligent Control System 28 Ton Rail Transfer Cart
  • Intelligent Control System 28 Ton Rail Transfer Cart
  • Intelligent Control System 28 Ton Rail Transfer Cart
  • Intelligent Control System 28 Ton Rail Transfer Cart
  • Intelligent Control System 28 Ton Rail Transfer Cart
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The battery operated transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1500 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 24 Months Port Qingdao/Tianjin/Shanghai
Load Capacity 1-1500 Ton Payload Operation Type Operation Handle + Remote Control
Power Supply Battery Operated Advantage More Than 20 Years' Experience For Transfer Cart
High Light

Intelligent Control System Rail Transfer Cart

,

28 Ton Rail Transfer Cart

,

28 Ton rail transfer trolley
Leave a Message
Product Description
Intelligent Control System 28 Ton Rail Transfer Cart


The battery operated transfer cart in the factory. It has the superiority of simple structure, easy use, good maintenance, large carrying capacity, environmental protection, and safe use. It can be widely applied in factorys. Warehouses and inplants are used for transportation in workshops or with cranes to transport heavy objects across. Such as: raw materials, castings and forgings, mold, girder, valve and welded parts, machined workpieces and finished products, etc., can be used in special occasions without power supply or long-distance transportation (AC power supply is difficult) It is powered by batteries, and the service life of the battery is about 5 years .
Application range: suitable for transportation in various environments, widely used in metallurgy, coal, electromechanical, heavy industry, shipbuilding, light industry and other enterprises.



Technical Parameter



1. Model: KPX

2. Capacity: 5t

3. Table Size: 3500*1200*600mm

4. Power: Battery Powered

5. Running Speed: 0-20m/min

6. Operation: Hand Pendant + Remote Control

Intelligent Control System 28 Ton Rail Transfer Cart 0



Customized Manufacturer


Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8



All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

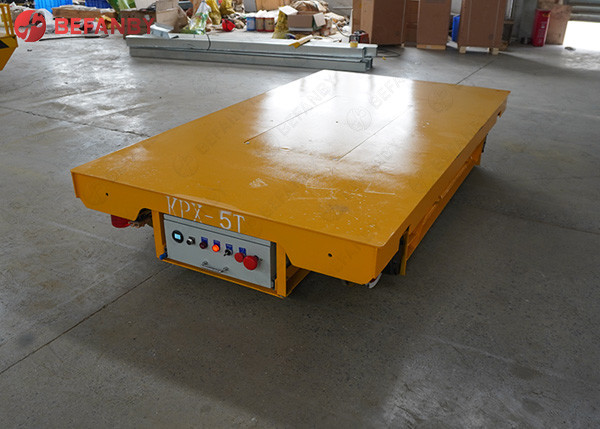

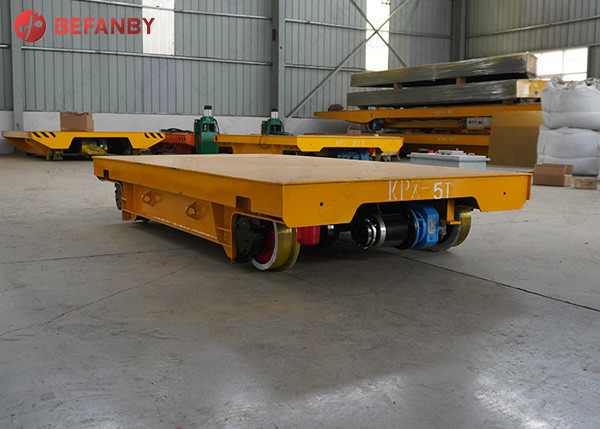

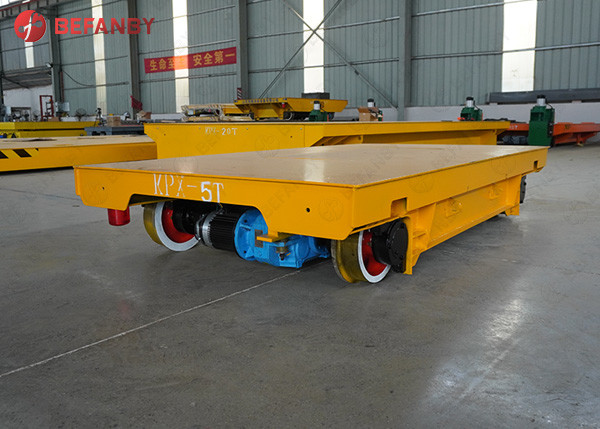

Intelligent Control System 28 Ton Rail Transfer Cart 1Intelligent Control System 28 Ton Rail Transfer Cart 2Intelligent Control System 28 Ton Rail Transfer Cart 3





Detailed Images of factory rail cart manufacturer

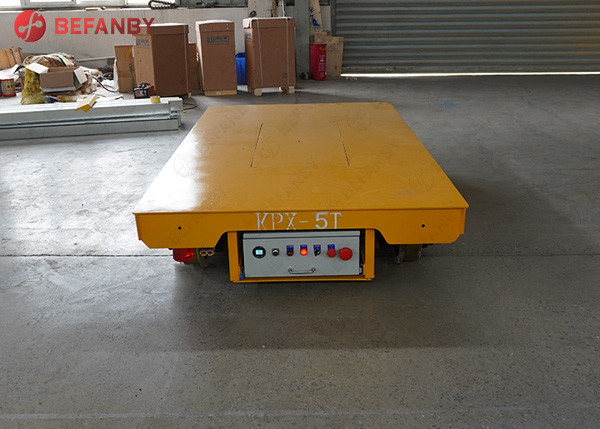

Intelligent Control System 28 Ton Rail Transfer Cart 4






battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
