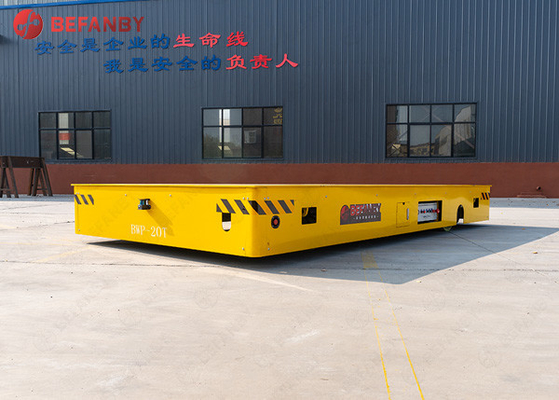

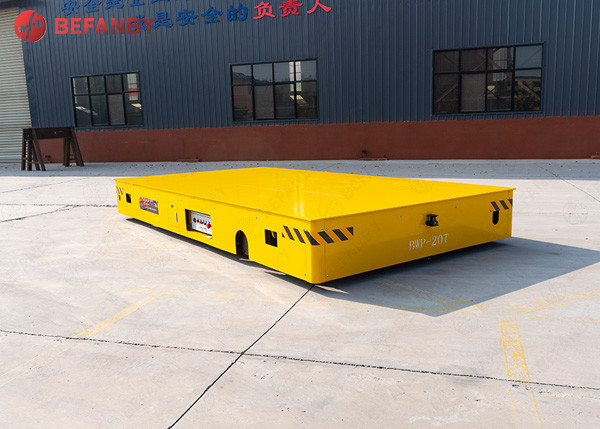

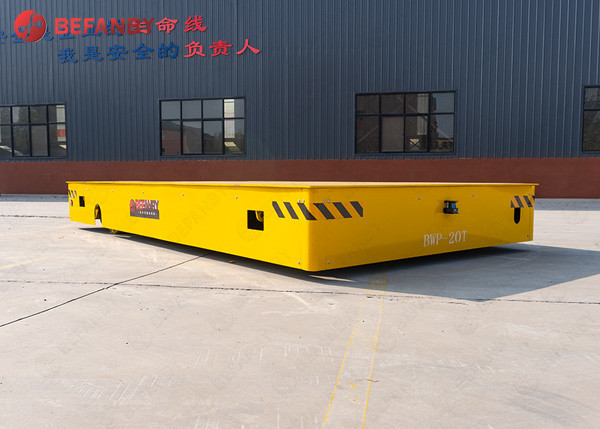

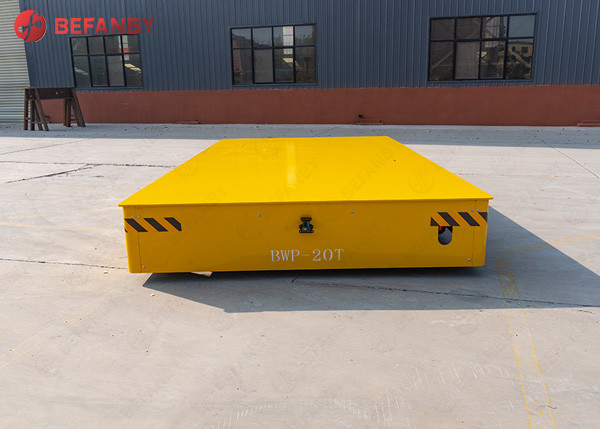

PU Wheels Trackless Battery Warehouse Carts

Product Description

Trackless electric transfer cart is a kind of transportation equipment commonly used in factories, production lines and other places, which greatly improves the efficiency of logistics transportation. In order to meet the various needs of different customers, we can customize the table size according to the specific requirements of customers, add parts and components to make it more in line with actual transportation needs.

Anti-skid and wear-resistant wheels are an important part of trackless electric transfer cart, which can ensure the safety and stability of the vehicle during operation. No matter what kind of road surface, anti-skid and wear-resistant wheels can play a good role, allowing the vehicle to run smoothly. And it can climb and drive steadily. At the same time, this kind of wheel also has a long durability, is not easy to wear in long-term use, and can greatly extend the service life of the vehicle.

Another very big advantage of trackless electric transfer cart is that its running distance is not limited. Whether it is short-distance transportation or long-distance transportation, it can be easily competent. This is very important for many factories and warehouses, because they need to constantly transfer goods from one place to another, and the transportation distance is different.

Trackless electric transfer cart can improve work efficiency, reduce labor costs, and be green and environmentally friendly. Therefore, we should actively promote and apply this equipment.

Application

Product Details

Product Parameter

Model		BWP-2T	BWP-5T	BWP-10T	BWP-15T	BWP-20T	BWP-25T	BWP-30T	BWP-40T	BWP-50T	BWP-60T	BWP-70T	BWP-80T	BWP-100
Rated load(t)		2	5	10	15	20	25	30	40	50	60	70	80	100
Table Size	Length(L)	2000	2200	2300	2400	2400	3500	3500	5000	5500	5600	6000	6500	6600
	Width(W)	1500	2000	2000	2100	2200	2200	2200	2500	2600	2500	2600	2800	3000
	Heigth(H)	450	500	550	600	600	700	700	800	800	850	900	950	1200
Wheel Base(mm)		1080	1650	1650	1600	1650	1650	1650	2000	2000	1800	1850	1950	2000
Axle Base(mm)		1380	1680	1700	1830	1850	2700	2700	3600	2850	2900	3500	3500	4000
Wheel Dia.(mm)		Φ250	Φ300	Φ350	Φ400	Φ400	Φ450	Φ450	Φ500	Φ600	Φ600	Φ600	Φ600	Φ600
Wheel Quantity(pcs)		4	4	4	4	4	4	4	4	4	4	6	6	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75	75	75	75
Running Speed(mm)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-18
Motor Power(kw)		2*1.2	2*1.5	2*2.2	2*3.5	2*4.5	2*5.5	2*5.5	2*6.3	2*7.5	2*10	2*12	30	40
Batter Capacity(Ah)		250	180	250	330	400	400	450	440	500	600	600	800	1000
Battery Voltage(V)		24	48	48	48	48	48	48	72	72	72	72	72	72
Running Time When Full Load		2.5	2.88	2.8	2.3	2.2	1.8	2	2.6	2.5	2.2	1.8	2	1.9
Running Distance for One Charge(Km)		3	3.5	3.4	2.8	2.7	2.2	2.4	3.2	3	2.7	2.2	2.4	2.3
Max Wheel load(KN)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	152	185	190
Reference Wight(t)		2.3	3.6	4.2	5.5	5.9	6.5	6.8	7.6	8	10.8	12.8	14.6	26.8



Product Feature

Production Procedure

Our Advantages

Shipping

Company Profile

Related Products

Product Tap: Material Handling Cart , Rail Transfer Cart
