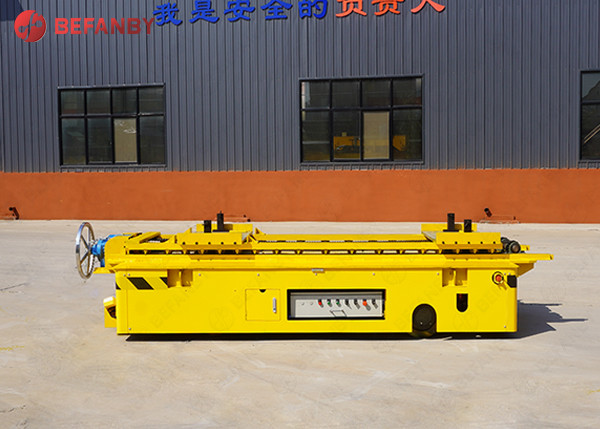

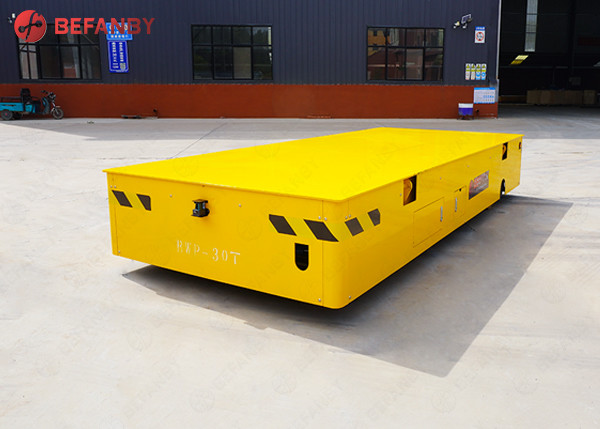

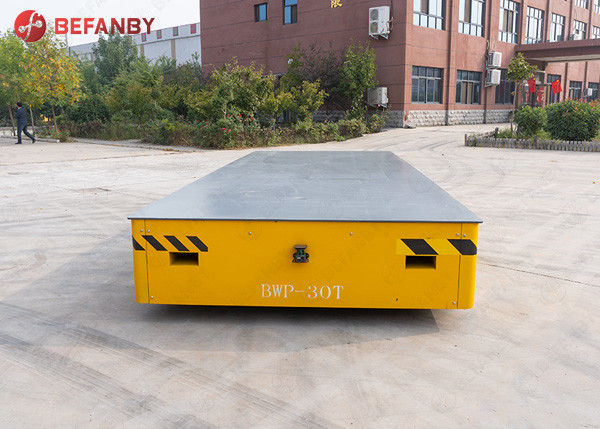

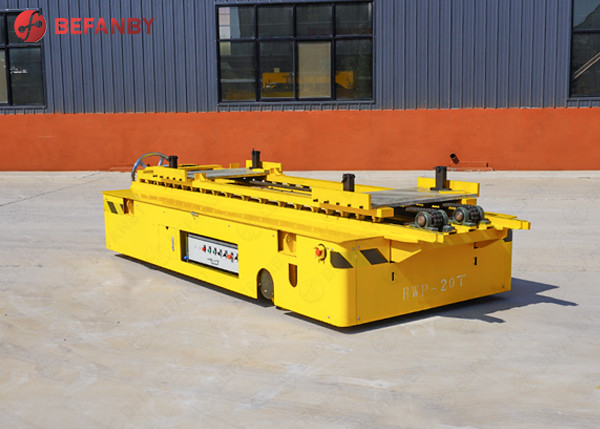

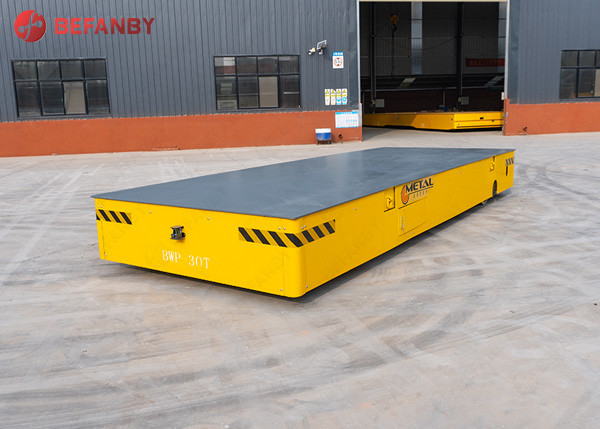

Stable PU Rubble Wheel Railless Transfer Carts

Product Description

The material transfer cart is a very convenient handling tool with many advantages. First of all, it does not require the laying of tracks, which makes it widely used and can be used for handling in many different occasions. Secondly, the running distance of the material transfer cart is not limited, and it can be carried out in short or long distances, which is very convenient. Moreover, the polyurethane wheels used in the vehicle have high anti-slip and wear resistance, which makes it very stable during the handling process and will not cause damage to the ground.

The use of material transfer carts has many benefits, which can improve work efficiency, reduce handling costs, reduce labor intensity, avoid human injuries and other problems, and has been widely used in all walks of life. At the same time, it uses maintenance-free batteries, which is also very environmentally friendly and energy-saving, reducing pollution to the environment.

Therefore, the use of material transfer carts has many advantages. Applying it to more fields can promote the improvement of work efficiency and achieve a win-win situation of economic and social benefits. I believe that with the continuous advancement and innovation of science and technology, the performance and application areas of material transfer carts will continue to expand and improve.

Application

Product Details

Product Parameter

Model		BWP-2T	BWP-5T	BWP-10T	BWP-15T	BWP-20T	BWP-25T	BWP-30T	BWP-40T	BWP-50T	BWP-60T	BWP-70T	BWP-80T	BWP-100
Rated load(t)		2	5	10	15	20	25	30	40	50	60	70	80	100
Table Size	Length(L)	2000	2200	2300	2400	2400	3500	3500	5000	5500	5600	6000	6500	6600
	Width(W)	1500	2000	2000	2100	2200	2200	2200	2500	2600	2500	2600	2800	3000
	Heigth(H)	450	500	550	600	600	700	700	800	800	850	900	950	1200
Wheel Base(mm)		1080	1650	1650	1600	1650	1650	1650	2000	2000	1800	1850	1950	2000
Axle Base(mm)		1380	1680	1700	1830	1850	2700	2700	3600	2850	2900	3500	3500	4000
Wheel Dia.(mm)		Φ250	Φ300	Φ350	Φ400	Φ400	Φ450	Φ450	Φ500	Φ600	Φ600	Φ600	Φ600	Φ600
Wheel Quantity(pcs)		4	4	4	4	4	4	4	4	4	4	6	6	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75	75	75	75
Running Speed(mm)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-18
Motor Power(kw)		2*1.2	2*1.5	2*2.2	2*3.5	2*4.5	2*5.5	2*5.5	2*6.3	2*7.5	2*10	2*12	30	40
Batter Capacity(Ah)		250	180	250	330	400	400	450	440	500	600	600	800	1000
Battery Voltage(V)		24	48	48	48	48	48	48	72	72	72	72	72	72
Running Time When Full Load		2.5	2.88	2.8	2.3	2.2	1.8	2	2.6	2.5	2.2	1.8	2	1.9
Running Distance for One Charge(Km)		3	3.5	3.4	2.8	2.7	2.2	2.4	3.2	3	2.7	2.2	2.4	2.3
Max Wheel load(KN)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	152	185	190
Reference Wight(t)		2.3	3.6	4.2	5.5	5.9	6.5	6.8	7.6	8	10.8	12.8	14.6	26.8
