7 Tonne Battery Powered Rail Transfer Carts
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The transport rail cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 800 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Application | Industrial Field |
|---|---|---|---|
| Running Speed | 0-20m/min | Warranty | 24 Months |
| Port | Qingdao/Tianjin/Shanghai | Load Capacity | 1-1000 Ton Payload |
| Highlight | 7 Tonne Rail Transfer Carts,Battery Powered Rail Transfer Carts,7 Tonne battery operated transfer trolley |
||
Product Description
7 Tonne Battery Powered Rail Transfer Carts
As an important logistics equipment, material transfer carts are widely used in factories, workshops and other occasions. It is powered by batteries and can travel freely on the preset track without being restricted by time and distance, which greatly improves the efficiency and quality of material handling.
In order to ensure the rapid, safe and accurate transportation of materials, material transfer carts are mainly composed of three systems working together: electrical system, control system and safety system. Among them, the electrical system is responsible for providing power to the vehicle and controlling the vehicle's driving, lifting, turning and other operations; the control system is composed of remote control, handle, electrical box, etc., which can be operated over a long distance; the safety system has automatic stop, anti-collision buffer, etc. to ensure the safety of the working environment and workers.
Material transfer carts can not only improve work efficiency, but also reduce manpower and material costs and reduce safety risks. It can be used in a variety of handling occasions, such as steel mills, production lines, construction sites, etc. Therefore, it is widely welcomed and favored by enterprises. Looking to the future, material transfer carts will be further intelligent and automated, bringing greater convenience and benefits to industrial manufacturing.
Technique Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Application
Transporting Goods: the rail transfer cart is suitable for various industries, steel mill, transfer steel products such as steel structure, steel rolls, steel pipe, steel billets, steel ladle and coil, etc.
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

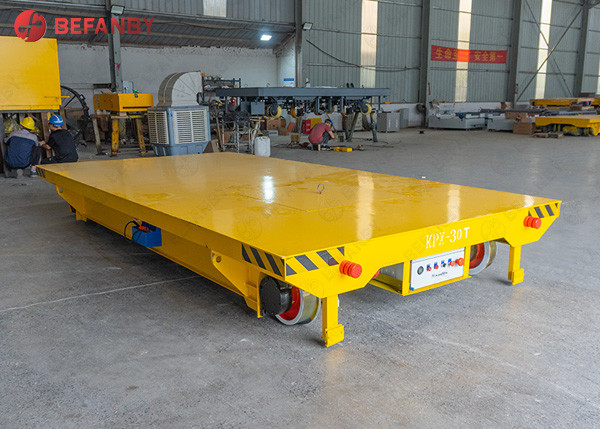

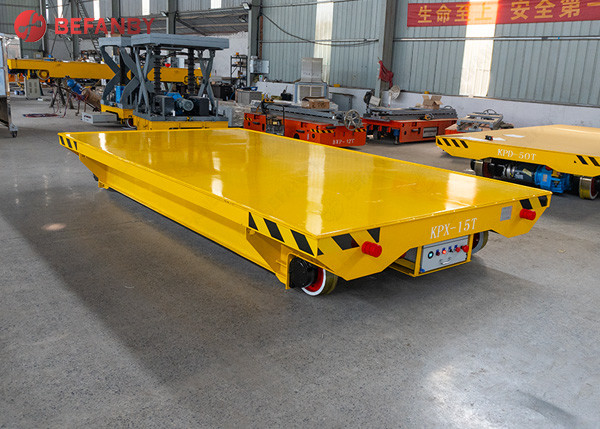

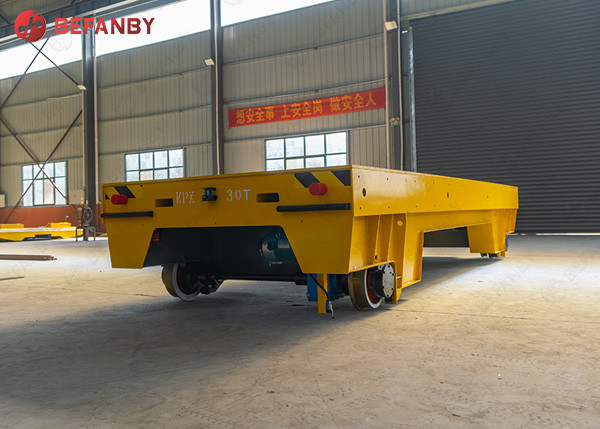

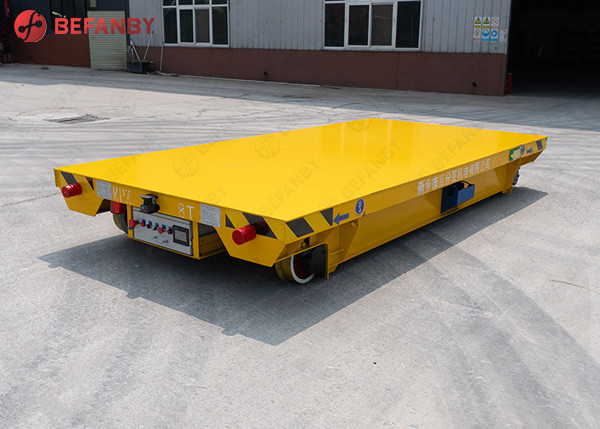

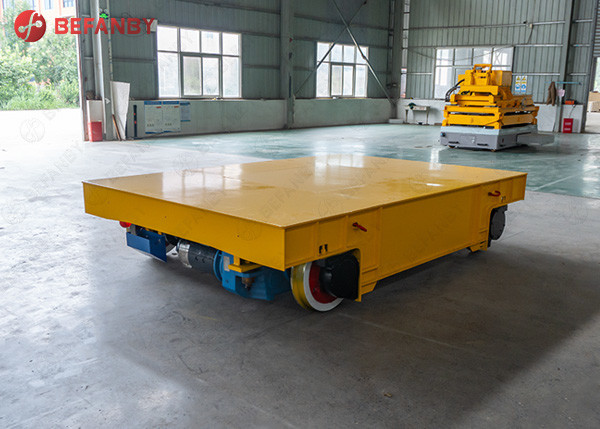

Detailed Images of transport rail cart
