Professional Factory AGV Robot Handling Vehicle
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | Automatic AGV |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The Automatic Guided Cart AGV will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Professional Factory AGV Robot Handling Vehicle | Power | Battery Powered |
|---|---|---|---|
| Warranty | 24 Months | Load Capacity | 1-40 Ton |
| Application | Workshop, Production Line,factory | Running Ways | Trackless,no Rail |
| Power Supply | Lithium Battery Power, Optional Power Supply | Characteristic | Automatic |
| Highlight | Professional Factory AGV Robot Handling Vehicle,Professional Factory AGV Robot,Professional Factory AGV |
||
Product Description

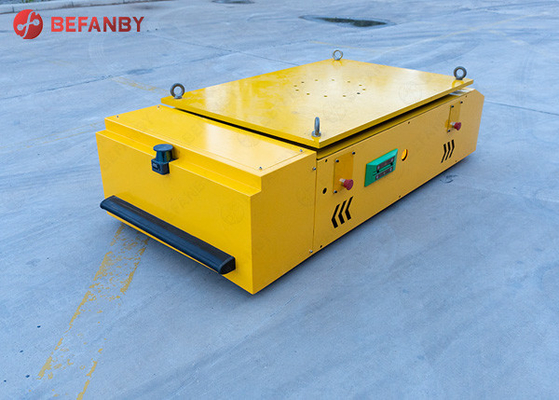

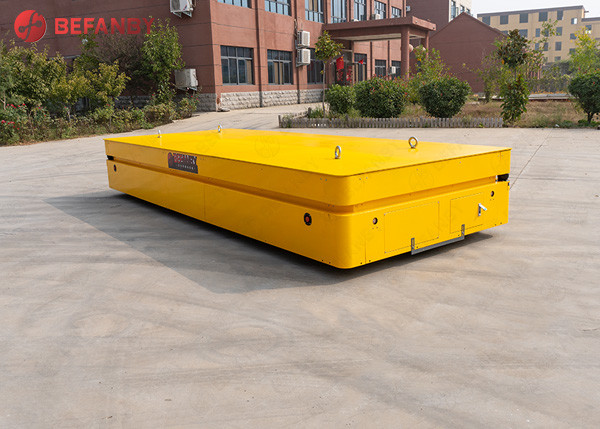

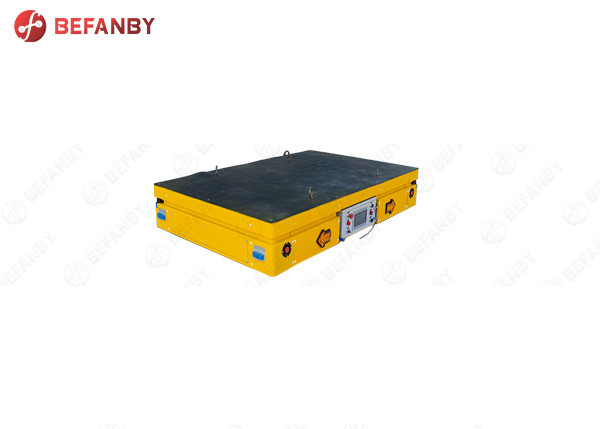

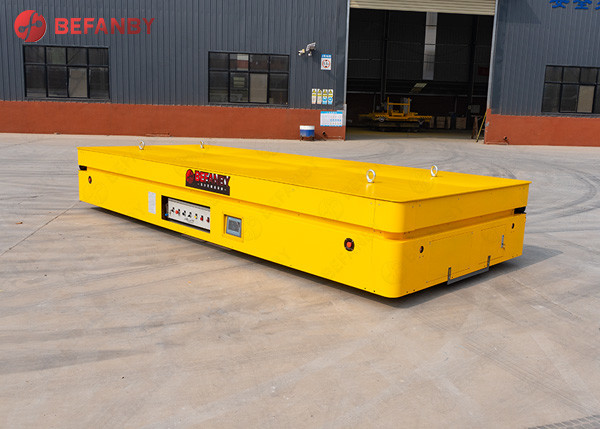

Professional Factory AGV Robot Handling Vehicle
Product Description Of Transfer Cart AGV
As a widely used intelligent equipment, AGV intelligent rail transfer cart is very popular due to its intelligent, efficient and safe features.
AGV intelligent rail transfer cart is mainly powered by lithium batteries, which can not only reduce energy consumption, but also greatly improve the working efficiency of the equipment. At the same time, the equipment is equipped with a PLC intelligent control system, which can automatically complete various operations during operation, greatly reducing the manpower burden.
In addition, the equipment can also be remotely controlled to achieve remote control, making it safer. By remotely controlling the transfer cart, it can not only complete more complex operations, but also keep operators away from dangerous environments and improve work efficiency.
The three major systems of safety system, control system and power system work together. AGV has built-in multiple sensors and safety devices, which can sense the environment in real time during work, avoid collisions with obstacles or personnel, and thus improve work safety.
Application Of Transfer Cart AGV
Parts Details
Advantages
Product Parameter
| Model | AGV-2T | AGV-5T | AGV-10T | AGV-20T | AGV-30T | AGV-40T | AGV-50T | |
| Rated load(t) | 2 | 5 | 10 | 20 | 30 | 40 | 50 | |
| Table Size | Length(mm) | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | 5500 |
| Widthmm) | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | |
| Heigth(mm) | 450 | 550 | 600 | 800 | 1000 | 1200 | 1300 | |
| Wheel Base(mm) | 1080 | 1650 | 1650 | 1650 | 1650 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ200 | Φ280 | Φ350 | Φ410 | Φ500 | Φ500 | Φ550 | |
| Battery Voltage(V) | 48 | 48 | 48 | 72 | 72 | 72 | 72 | |
| Weel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 142.8 | 174 | |
| Reference Wight(t) | 2.3 | 3.6 | 4.2 | 5.9 | 6.8 | 7.6 | 8 | |
Running Route
Product Feature
Company Profile
Related Products
FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
