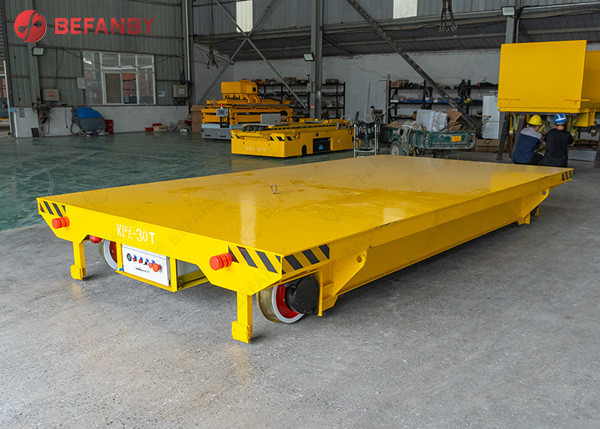

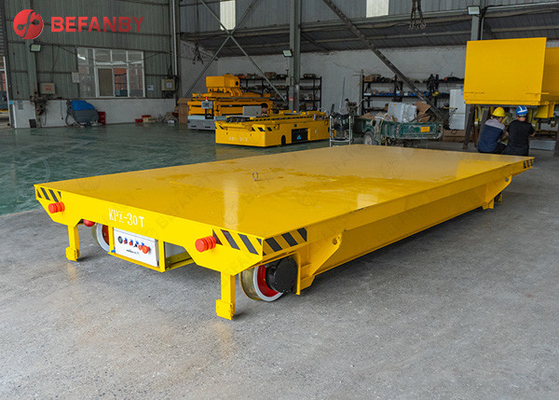

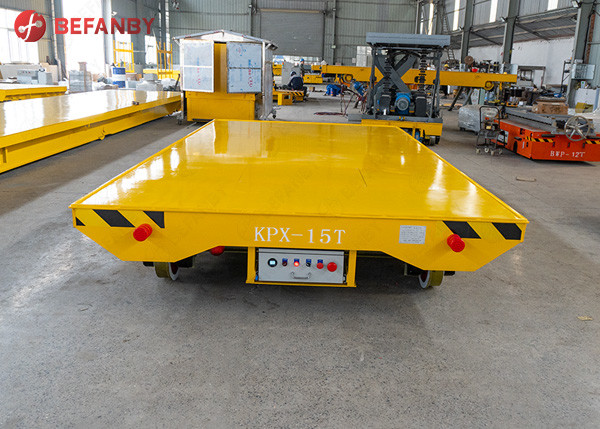

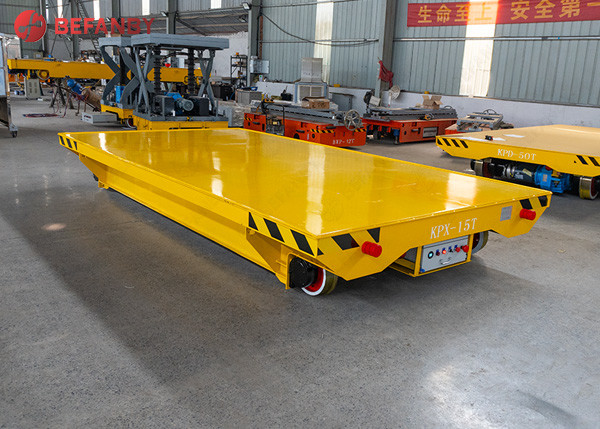

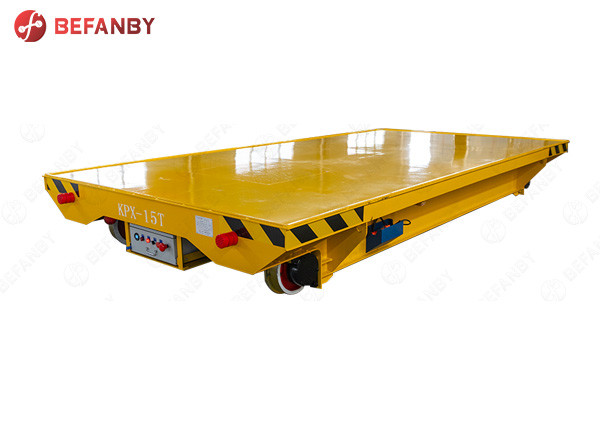

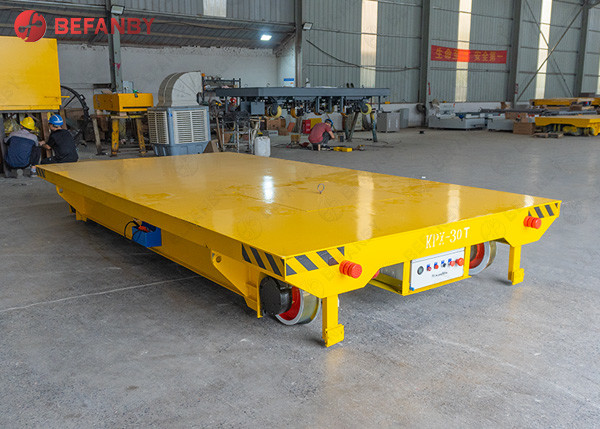

Steel Cast Wheel Battery Track Transport Trolley
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-30 Tons |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The tranfer trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Application | Industrial Field, Gearmotor Transfer |
|---|---|---|---|
| Warranty | 24 Months | Port | Qingdao/Tianjin/Shanghai |
| Load Capacity | 1-1000Tons | Operation Type | Hand Pendant + Remote Control |
| Highlight | Steel Cast Wheel Transport Trolley,Battery Track Transport Trolley,Track battery powered transfer carts |
||
Product Description
Hot-Sale Cast Steel Wheel Transfer Cart On Rail
The rail electric transfer cart is a handling tool used to run on rails. It is mainly used for material handling and can be customized according to customer requirements to adapt to long-distance or short-distance transportation. It usually consists of multiple important components, each of which has its own unique function.
1. Frame
The frame is the main structure of the electric transfer cart, usually made of steel, with a strong load-bearing capacity. It supports the weight of the entire transfer cart and ensures the fixation and connection of each component.
2. Motor
The power source of the electric transfer cart usually has an AC or DC motor. The motor drives the transfer cart forward through electricity. The common motor power range ranges from a few kilowatts to tens of kilowatts.
3. Braking system
Common braking methods include electric braking and mechanical braking. Electric braking is to achieve deceleration through the reverse operation of the motor, while mechanical braking is decelerated through a friction device.
4. Control system
The control system of the electric transfer cart is responsible for the start, stop and speed regulation of the motor. The control system of modern electric transfer carts is usually controlled by a microprocessor, which can realize functions such as automatic operation and timing control.
These components work together to ensure that the electric transfer cart can run on the track efficiently, smoothly and safely. Electric transfer carts are widely used in railway transportation, factory workshops, airports, mines and other occasions.
All can be customized as per customers’ requirement. And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
Shipping
Product Features
Technique Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
NOTES:
1. Flat deck table for transporting payload;
2. Custom configurations may include lifting, tilting, or rotating function;
3. Payload from 1 ton to 1500 tons;
4. Fixed speed or variable speed capabilities;
5. On board charging is available if battery drives;
6. With forward or backing driving, turning drive;
7.Options for automatic control system;
8. Available safety system includes horn, lights, emergency stop, bumpers and detector.
