50t Handling Machine Parts Industrial Rail Battery Transfer Carts

  • 50t Handling Machine Parts Industrial Rail Battery Transfer Carts
  • 50t Handling Machine Parts Industrial Rail Battery Transfer Carts
  • 50t Handling Machine Parts Industrial Rail Battery Transfer Carts
  • 50t Handling Machine Parts Industrial Rail Battery Transfer Carts
  • 50t Handling Machine Parts Industrial Rail Battery Transfer Carts
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The motorized slab trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 20-30 days as usual delivery
Payment Terms L/C,T/T,Western Union
Supply Ability 1500 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Q235 Color Customized
Application Industrial Field,motorized Slab Transfer Running Speed 0-20m/min
Running Distance 60m, Customized On Demand Warranty 24 Months
Port Qingdao/Tianjin/Shanghai Load Capacity 1-1000 Ton Payload
Power Supply Battery Powered Operation Type Hand Pendant + Remote Control
Advantage More Than 19 Years' Experience For Motorized Slab Transfer Option Power Cable Power Supply, Trolly Line, Low Voltage Rail, Diesel, Etc.
Leave a Message
Product Description
50t Handling Machine Parts Industrial Rail Battery Transfer Carts


  • Working principle: This transfer cart uses batteries as its power source. The batteries convert chemical energy into electrical energy to provide power output for the DC traction motor. The DC motor drives the wheels to rotate, thereby realizing the vehicle's forward, backward, and steering movements. Some advanced battery transporters are also equipped with intelligent control systems that can achieve automated operation and precise control.

Technical Parameter


1. Model: KPX

2. Capacity: 10mt

3. Table Size: 3500*1800*600mm

4. Power: Battery Powered

5. Running Speed: 0-20m/min

6. Operation: Hand Pendant + Remote Control

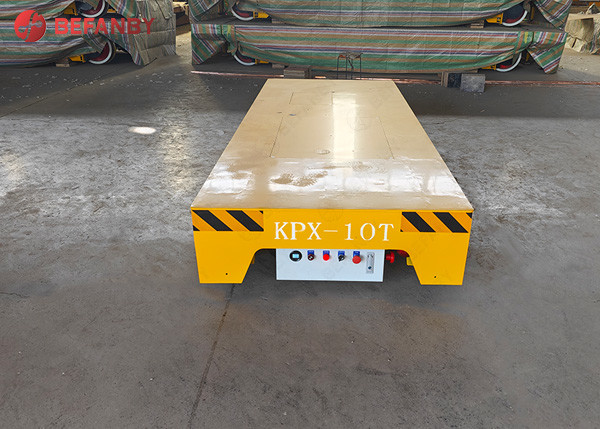

50t Handling Machine Parts Industrial Rail Battery Transfer Carts 0

Customized Manufacturer

Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8


All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.

battery powered transfer 50t Handling Machine Parts Industrial Rail Battery Transfer Carts 1cart rail power supply trolley line motorized rail cart cable power supply

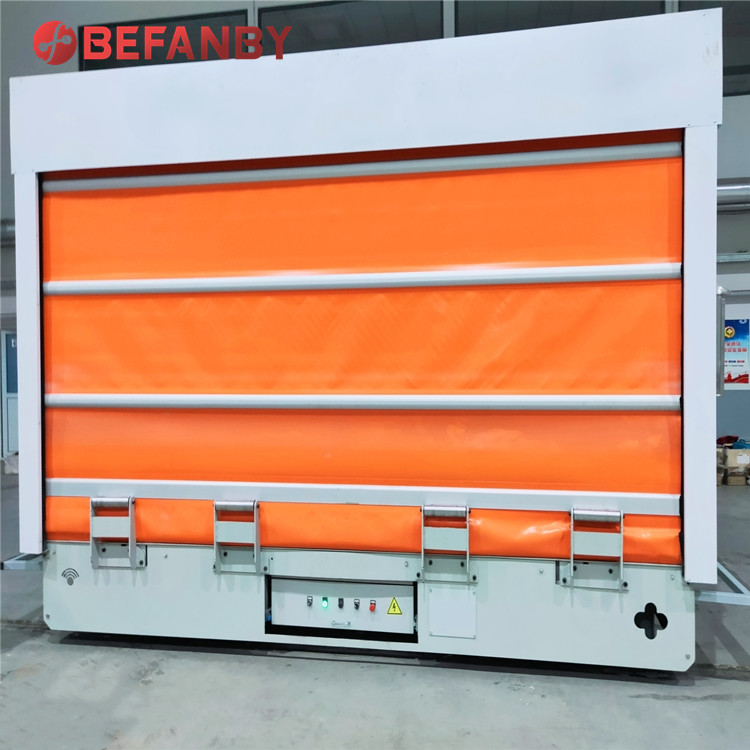

50t Handling Machine Parts Industrial Rail Battery Transfer Carts 2



Detailed Images

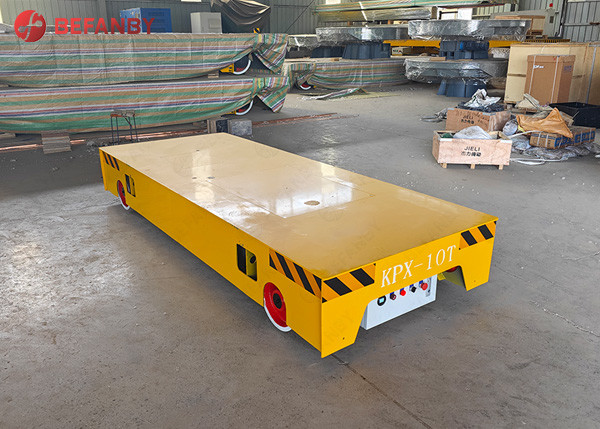

50t Handling Machine Parts Industrial Rail Battery Transfer Carts 3

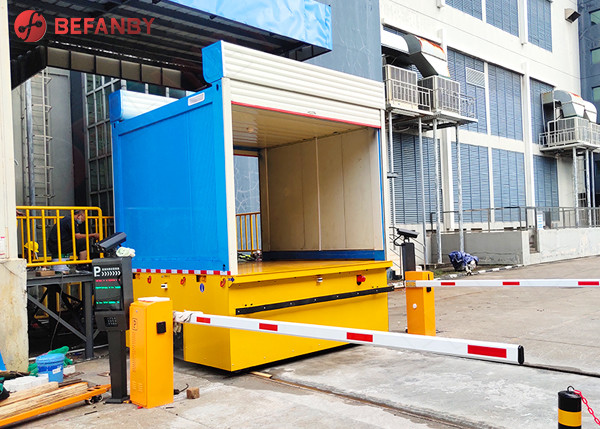

50t Handling Machine Parts Industrial Rail Battery Transfer Carts 4


battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
Our Company

50t Handling Machine Parts Industrial Rail Battery Transfer Carts 5


50t Handling Machine Parts Industrial Rail Battery Transfer Carts 6

Advantages

✔ Higher load capacity – Depending on the design, it can carry from 1 ton to more than 100 tons.
✔ Precise movement – ​​Fixed tracks prevent deviation and ensure accurate positioning.
✔ Low maintenance costs – Simple structure and optional custom accessories.
✔ Customizable – Can be installed with turntable, lifting structure or V-frame device.

50t Handling Machine Parts Industrial Rail Battery Transfer Carts 7
