Customized Safety Sensors Control AGV For Injection Mould Handling

  • Customized Safety Sensors Control AGV For Injection Mould Handling
  • Customized Safety Sensors Control AGV For Injection Mould Handling
  • Customized Safety Sensors Control AGV For Injection Mould Handling
  • Customized Safety Sensors Control AGV For Injection Mould Handling
Place of Origin Henan, China
Brand Name BEFANBY
Certification CE, SGS, ISO9001
Model Number AGV
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The transfer cart will be packed by the tarp, the parts will be packed y the high quality wooden case.
Delivery Time 20-30 working days for usual delivery
Payment Terms L/C,T/T,Western Union
Supply Ability 600 sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Engineers Available To Service Machinery Overseas Warranty 2 Years
Application Die Mold Transfer, Bay To Bay Transfer Capacity 1-1000 Ton For Mold Transfer Car
Power Supply Battery Power/customized Product Name Customized Safety Sensors Control AGV For Injection Mould Handling
Material Q235 Operation Type Hand Pendant + Remote Control
Color Yellow, Gray, Red Or As Your Needs Port Qingdao, Tianjin, Shanghai
Highlight

Customized Safety AGV

,

Customized Safety Sensors Control AGV

,

Handling AGV
Leave a Message
Product Description

Customized Safety Sensors Control AGV For Injection Mould Handling

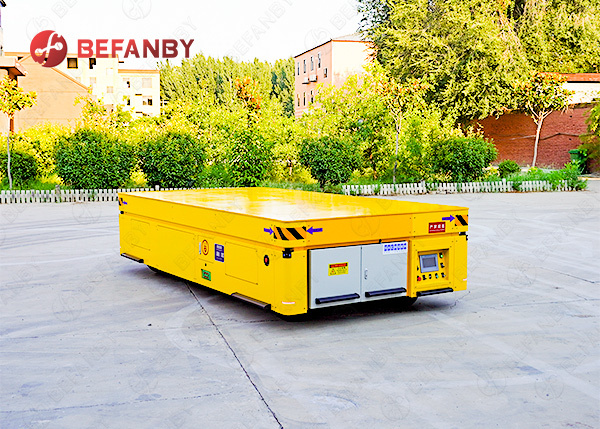

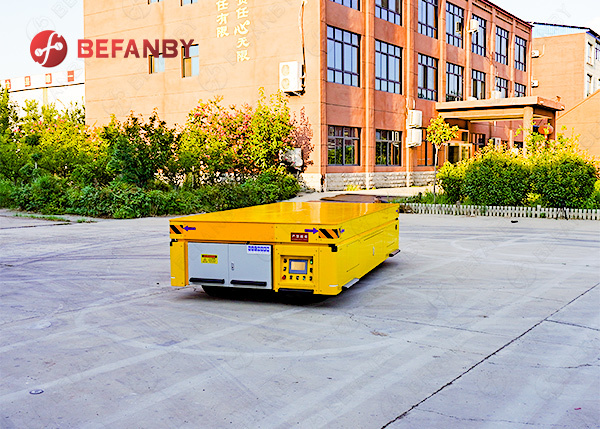

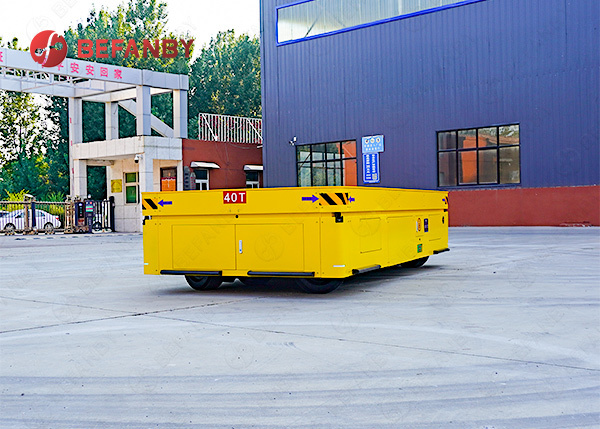

The 40T trackless transport vehicle is an intelligent material handling device designed for heavy-duty material transportation, boasting powerful load-bearing capacity and high-precision control performance. The entire vehicle adopts a high-strength steel splicing structure design, with a load-bearing capacity of up to 40 tons. It can stably transport large steel components, equipment parts, molds, and other heavy-duty materials, and is widely used in metallurgy, machinery manufacturing, energy equipment, port terminals, and warehousing logistics.

2019 China steerable battery powered material handling trackless electric transfer cart

Customized Safety Sensors Control AGV For Injection Mould Handling 0

The features as following:

  • The transfer cart is battery powered, they represent the best solution for all those appliances with delicate handling problems in limited places.(360 degree turning flexibly)
  • The trackless transfer cart is very flexible since it can move freely around the plant as indoor as outdoor.
  • It is equipped with non-marking wheels to avoid any mark on floor.(Imported PU wheel or customized)
  • Easy operation make transfer cart perfect to meet the most important requirements: where space is very limited and paths are strictly constrained.

Remark: Dimensions,capacity, loading platform superstructure, speed and many others features can be customized as per client request.

Technical Parameter


Model BWP-10t BWP-20t BWP-40t BWP-60t BWP-80t BWP-100T
Rated Load(t) 10 20 40 60 80 100
Table size(mm) Length(L) 2300 2400 5000 5600 6500 6600
Width(W) 2000 2200 2500 2500 2800 3300
Height(H) 550 600 800 850 950 1200
Wheel Base(mm) 1650 1650 2000 1800 1950 2000
Axle Base(mm) 1700 1850 3600 2900 3500 4000
Wheel Diameter(mm) 350 400 500 600 600 600
Wheel Quantity(pcs) 4 4 4 4 6 8
Ground Clearance(mm) 50 50 50 75 75 75
Running Speed(m/min) 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power(kw) 2*2.2 2*3.5 2*6.3 2*10 30 40
Battery Capacity(Ah) 250 330 440 600 800 1000
Battery Voltage(v) 48 48 72 72 72 72
Max Wheel Load(kn) 42.6 77.7 142.8 221.4 185 190
Reference Weight 4.2 5.9 7.6 10.8 14.6 26.8


Navigation methods


The vehicle is equipped with an intelligent AGV control system, enabling remote operation and precise path control. The system supports multiple navigation methods, including magnetic strip navigation, laser navigation, inertial navigation, and visual navigation, allowing for flexible selection based on different working conditions and workshop layouts to ensure operational stability and high precision.

Customized Safety Sensors Control AGV For Injection Mould Handling 1


Brief introduction----BEFANBY'S Advantage

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.


Customized Safety Sensors Control AGV For Injection Mould Handling 2

Customized Safety Sensors Control AGV For Injection Mould Handling 3


Brief introduction----BEFANBY'S Certificate



Customized Safety Sensors Control AGV For Injection Mould Handling 4

Customized Safety Sensors Control AGV For Injection Mould Handling 5


Our customers



Customized Safety Sensors Control AGV For Injection Mould Handling 6


Attend the trade fair every year


Customized Safety Sensors Control AGV For Injection Mould Handling 7


Brief introduction


Customized Safety Sensors Control AGV For Injection Mould Handling 8

Customized Safety Sensors Control AGV For Injection Mould Handling 9



You can copy the following options and click here to select your specific requirement for the transfer cart to send us. And then the proper solution and price will be sent to you.


1. The load capacity of the transfer cart is ( ) ton.


2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).


3. The voltage is ( ) V, ( ) HZ, 3 phase.


4. The running time is ( ) hours per day.


5. The running distance is ( ) m per time.


6. The transfer cart runs on the rails or common floor?


7. Whether exist turning?


8. Whether has other special requirement?


Our After Service
  • Our commitment:
  • The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
  • 16 hours engineering service and 24 hours internet service for our customers
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.


Customized Safety Sensors Control AGV For Injection Mould Handling 10
