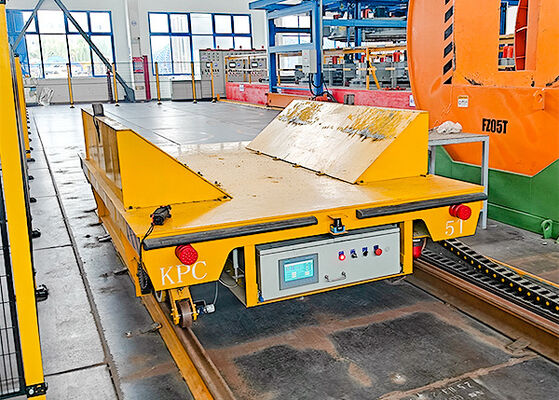

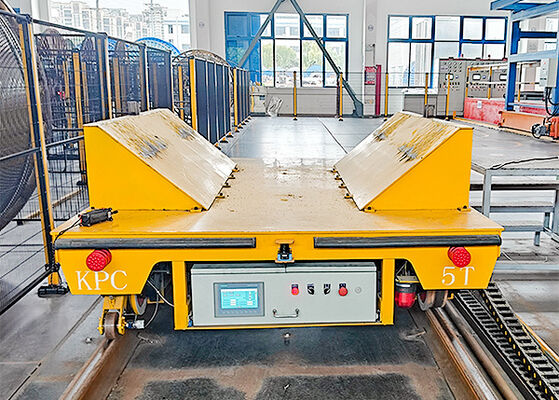

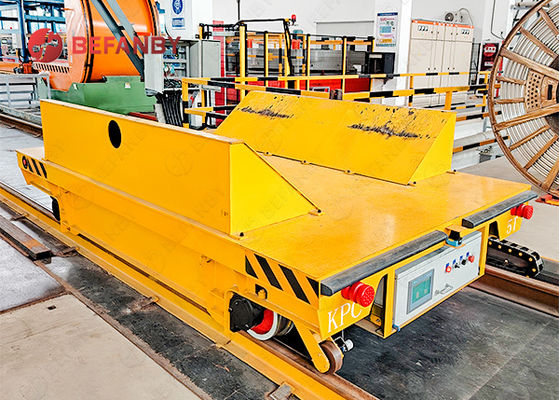

5T Load Capacity Rail Transfer Cart With V Frame Device And Battery Operated Power Supply
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPT |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The motorized slab trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Warranty | 24 Months |
|---|---|---|---|
| Load Capacity | Customized | Power Supply | Battery Operated |
| Port | Qingdao/Tianjin/Shanghai | Application | Heavy Industry,outdoor,construction |
| Materials | Steel | ||
| Highlight | 5T Load Capacity Rail Transfer Cart,V Frame Device Motorized Transfer Trolley,Battery Operated Transfer Cart |
||
Product Description
5T Cable Reel Pipe Plant Use Rail Transfer Cart With V Frame Device
In modern industrial environments, efficiency and precision are paramount, especially when handling large materials requiring precise alignment. Our 5-ton cable reel/conduit rail-mounted transporter, equipped with a V-shaped support system, is designed to meet these needs, providing an effective solution for transporting large, heavy items within production facilities.
Product Details
Our Company
Customized Support
Product Specifications
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Length L (mm) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Width W (mm) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Height H (mm) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 |
| Motor Power (kW) | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 |
| Battery Capacity (Ah) | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Max Wheel Load (kN) | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight (t) | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 |
Production Process
Related Products
Frequently Asked Questions
How can I operate the transfer cart?
We provide comprehensive English user manuals and parts documentation that will be delivered with your equipment.
How to ensure your product quality?
We provide rail installation drawings, rail foundation construction drawings, and technical guidance at no additional cost. If needed, our installation engineers can visit your facility to guide the installation process.
Whether you can offer customized transfer cart?
Yes, we are a manufacturer with our own engineering team that can create customized designs according to your specific requirements. Please share your needs with us.
Whether there is professional technician assist our installation?
Yes, we have a professional installation team with international experience. If you require on-site technical assistance, please inform us in advance so we can arrange for our technicians.
