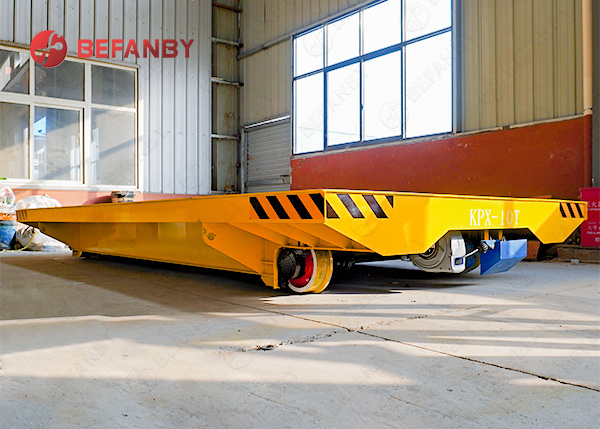

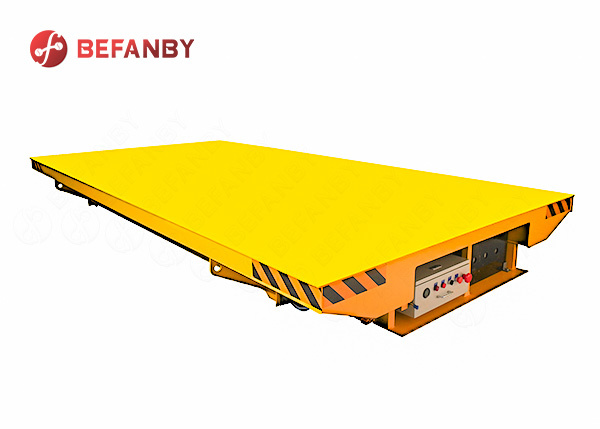

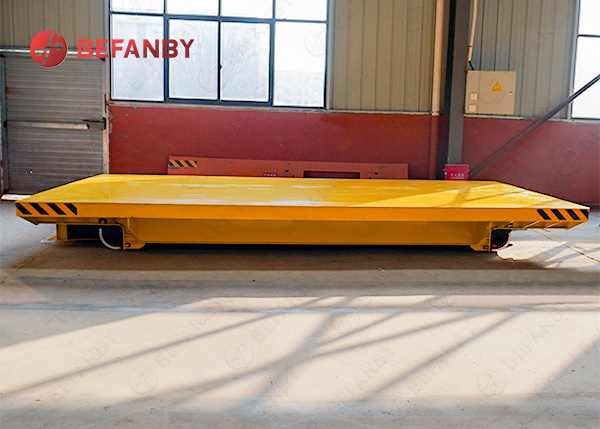

Battery Operated Rail Transfer Trolley with Customized Load Capacity and Steel Construction
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The motorized slab trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Warranty | 24 Months |
|---|---|---|---|
| Load Capacity | Customized | Power Supply | Battery Operated |
| Port | Qingdao/Tianjin/Shanghai | Application | Heavy Industry,outdoor,construction |
| Materials | Steel | ||
| Highlight | Battery Operated Rail Transfer Trolley,Customized Load Capacity Battery Transfer Cart,Steel Construction Material Transfer Cart |
||
Product Description
Battery-Powered Rail Transfer Trolley
The battery-powered rail-mounted material transfer trolley is an industrial transport device that operates on fixed tracks. Powered by batteries and driven by a DC motor, it delivers stable, safe, and reliable performance for factory workshops, warehousing logistics, and heavy-duty material handling applications.
This self-powered trolley operates without external power supply and provides extended runtime, meeting material handling requirements across multiple workstations and processes. The DC motor drive system ensures responsive operation and smooth starts, minimizing operational shock and maintaining stability under heavy loads.
Product Overview
Manufacturing Facility
Custom Engineering Solutions
Technical Specifications
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Length L (mm) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Width W (mm) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Height H (mm) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 |
| Motor Power (kW) | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 |
| Battery Capacity (Ah) | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Max Wheel Load (kN) | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight (t) | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 |
Key Features
This transfer trolley features a compact design with a frame constructed from high-strength steel, delivering exceptional load-bearing capacity. It is ideal for transporting molds, steel structures, metal parts, and other heavy materials. The platform configuration can be customized to specific operational requirements, including flatbed, roller-type, roll-up, or dedicated steel ladle platforms, ensuring seamless integration with production lines and enhanced handling efficiency.
Production Process
Related Products
Frequently Asked Questions
How do I operate the transfer cart?
Complete English user manuals and parts documentation are included with your shipment for straightforward operation.
Complete English user manuals and parts documentation are included with your shipment for straightforward operation.
How is product quality ensured?
We provide comprehensive rail installation drawings, foundation construction drawings, and complimentary technical guidance. When required, our installation engineers can visit your facility to supervise the installation process.
We provide comprehensive rail installation drawings, foundation construction drawings, and complimentary technical guidance. When required, our installation engineers can visit your facility to supervise the installation process.
Do you offer customized transfer carts?
Yes, as a manufacturer with an in-house engineering team, we create custom designs tailored to your specific requirements. Please share your detailed needs with us.
Yes, as a manufacturer with an in-house engineering team, we create custom designs tailored to your specific requirements. Please share your detailed needs with us.
Is technical installation assistance available?
Yes. Our professional installation team has international experience. For on-site technical support, please notify us in advance to arrange appropriate assistance.
Yes. Our professional installation team has international experience. For on-site technical support, please notify us in advance to arrange appropriate assistance.
