Customized Rail Coil Transfer Trolley With Produce Line

  • Customized Rail Coil Transfer Trolley With Produce Line
  • Customized Rail Coil Transfer Trolley With Produce Line
  • Customized Rail Coil Transfer Trolley With Produce Line
  • Customized Rail Coil Transfer Trolley With Produce Line
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The movable lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 20-30 days as usual delivery
Payment Terms L/C,T/T,Western Union
Supply Ability 1500 set/sets, per year
Product Details
Rated Load 2-150 Tons Table Size 2000-10000mm (L), 1500-3000mm (W), 500-1200mm (H)
Wheel Diameter Φ270-Φ600mm Running Speed 18-25 M/min
Motor Power 0.8-15 KW Ground Clearance 50-75mm
Leave a Message
Product Description
Customized Rail Coil Transfer Trolley With Produce Line
Product Overview

This rail-mounted transporter features a roll-type structure design, allowing for the customization of V-shaped frames, arc-shaped support frames, or anti-slip brackets based on the mold dimensions of the materials, effectively preventing slippage and offset during transport. It can stably support and safely transport cylindrical, large steel molds, and special workpieces.

Furthermore, the platform can be customized to non-standard specifications, adding limit devices, guardrails, and buffer structures according to customer production line requirements to better meet the needs of complex working conditions.

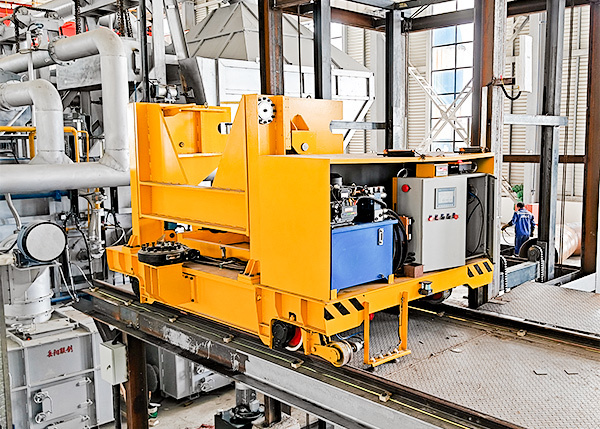

Customized Rail Coil Transfer Trolley With Produce Line 0
Technical Specifications
Model KPT-2T KPT-5T KPT-10T KPT-16T KPT-20T KPT-25T KPT-30T KPT-40T KPT-50T KPT-63T KPT-80T KPT-100T KPT-150
Rated load (t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size - Length (L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Table Size - Width (W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Table Size - Height (H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base (mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia. (mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity (pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power (kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running Distance (m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel Load (KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight (t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100
Key Features

The transfer trolley uses a rail-based system with a fixed route, enabling precise docking and transportation with production line equipment, mold stations, and automated equipment. The cart operates smoothly and is suitable for frequent starts and stops and long-distance round trips, significantly improving workshop logistics efficiency.

In terms of drive, multiple power options are available, including battery power, low-voltage rail power, and cable reel power, to meet the continuous operation needs of different production environments.

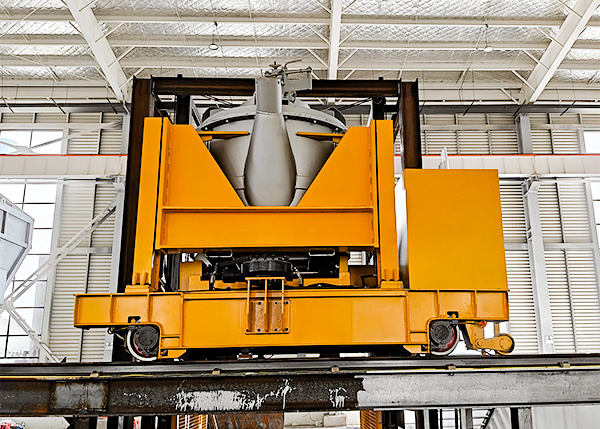

Customized Rail Coil Transfer Trolley With Produce Line 1
Frequently Asked Questions
How can I operate the transfer cart?
Please don't worry, dear friend. The English user manual and parts manual will be delivered with your items together.
How to ensure your product quality?
We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary, our installation engineer will go to your factory to guide the installation.
Whether you can offer customized transfer cart?
Yes, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
Whether there is professional technician to assist our installation?
Yes. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance so that we can arrange technicians.
Related Products
Material Handling Cart, Rail Transfer Cart

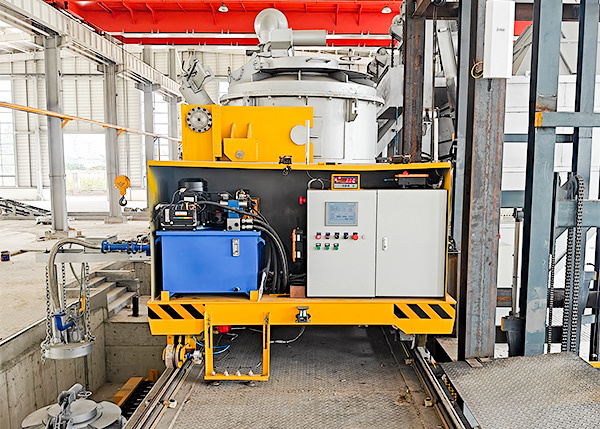

Customized Rail Coil Transfer Trolley With Produce Line 2
