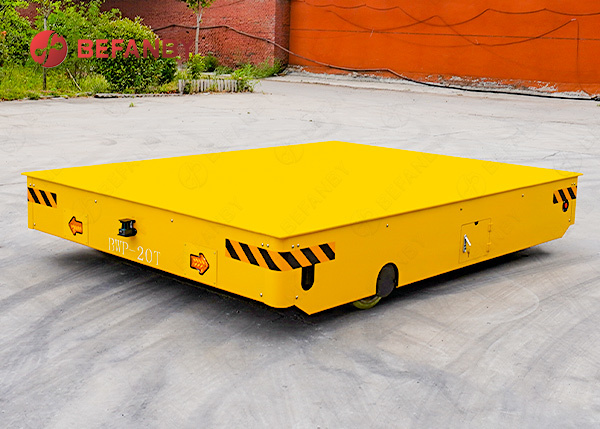

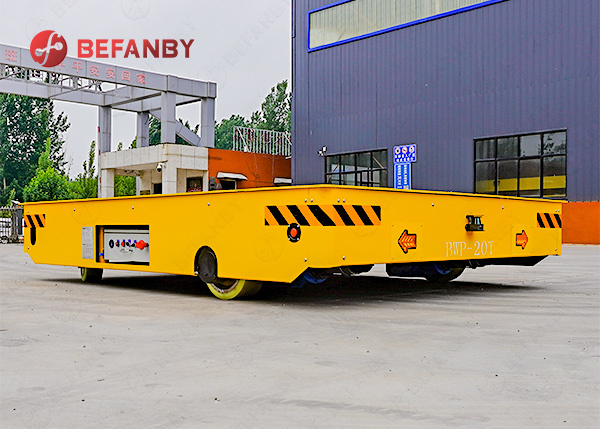

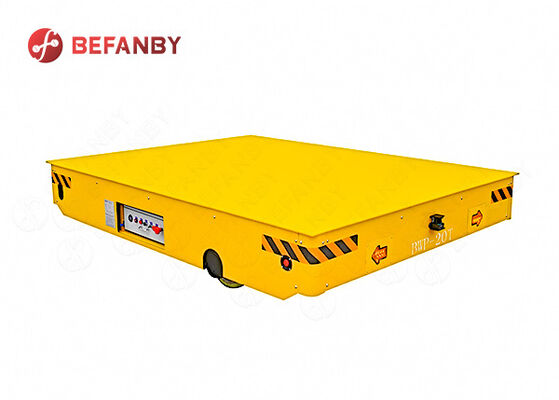

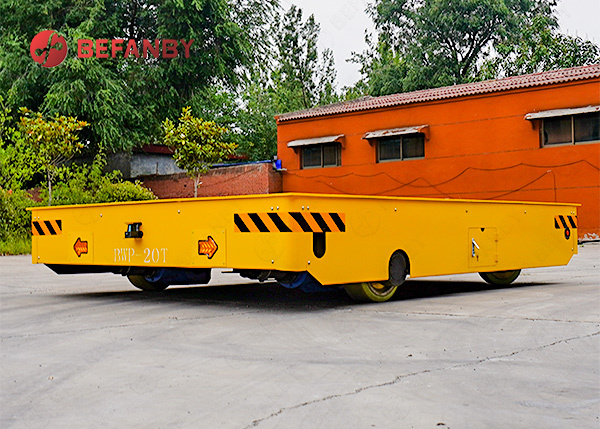

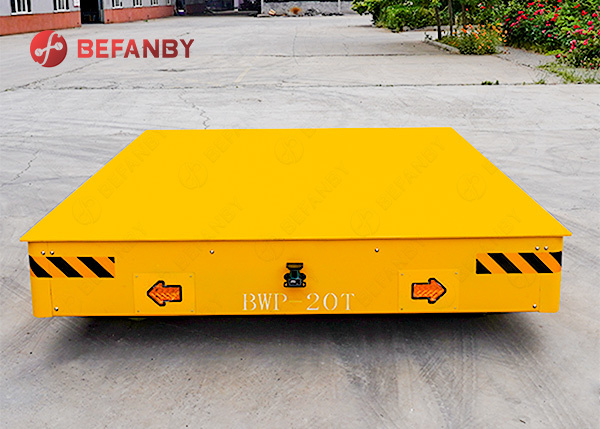

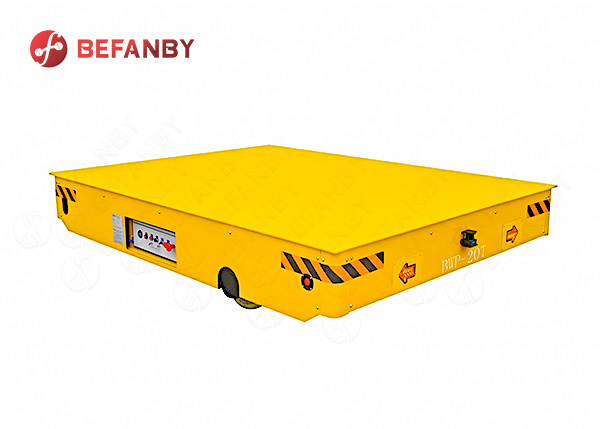

20 Ton Capacity Trackless Transfer Cart With PU Wheels
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | BWP |
| Minimum Order Quantity | 1 set/sets |
| Packaging Details | The railway transfer car will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1000 set/sets per year |
Product Details
| Material | Q235 | Load Capacity | 1-70T |
|---|---|---|---|
| Power Supply | Cable Reels Power | Table Length | 2000-5600 Mm |
| Table Width | 1500-2500 Mm | Motor Power | 1-6.3 KW |
Product Description
20 Ton Capacity Trackless Transfer Cart With PU Wheels
1. Product Introduce
The trackless transfer cart is a highly efficient and flexible modern material transport vehicle capable of moving freely within factory grounds and workshops without the need for installed rails. Powered by batteries and a DC motor drive system, and equipped with wear-resistant, non-slip rubber-coated wheels, it operates stably on various surfaces—such as concrete and epoxy flooring—and easily maneuvers forward, backward, and in multiple directions. It offers safe, reliable handling solutions for a wide range of loads, including large molds, steel structures, and machinery, as well as for semi-automated material transport. Key specifications—such as load capacity, platform dimensions, operating speed, and control methods—can be custom-engineered to suit specific operational conditions and meet the unique requirements of different enterprises.
2. Advantage
In terms of intelligent features, the trackless transfer cart can be equipped with remote control operation, laser obstacle avoidance devices, and automatic charging functions to achieve more efficient unmanned transportation. The cart body structure is welded from high-strength steel, featuring high load-bearing capacity, stable operation, and simple maintenance. Furthermore, specialized devices such as guardrails, V-shaped supports, lifting platforms, and roller conveyors can be designed according to the transported materials, effectively improving safety and operational efficiency during transportation. Widely used in various work environments, it is an important piece of equipment for enterprises to achieve intelligent logistics upgrades.
3. Technique Parameter
| Model | BWP-2t | BWP-5t | BWP-10t | BWP-16t | BWP-20t | BWP-25t | BWP-30t | BWP-40t | BWP-50t | BWP-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
4.Applications
5.BEFANBY Client
6.Our Company
7.FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
