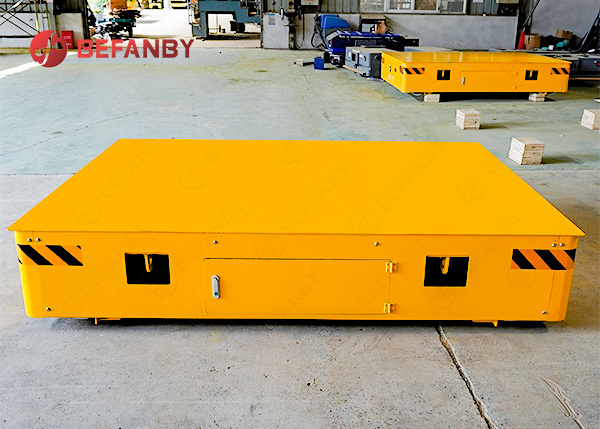

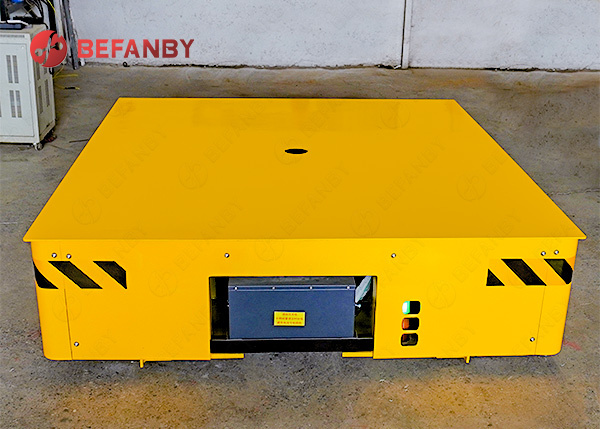

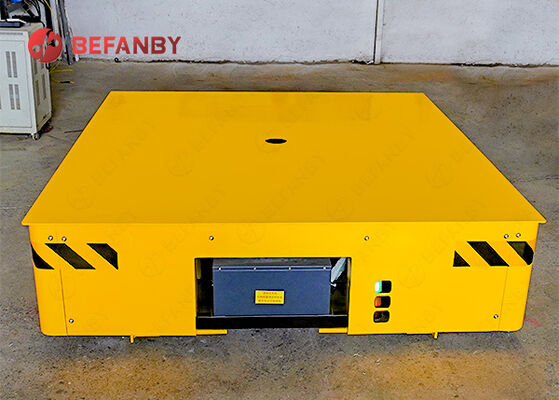

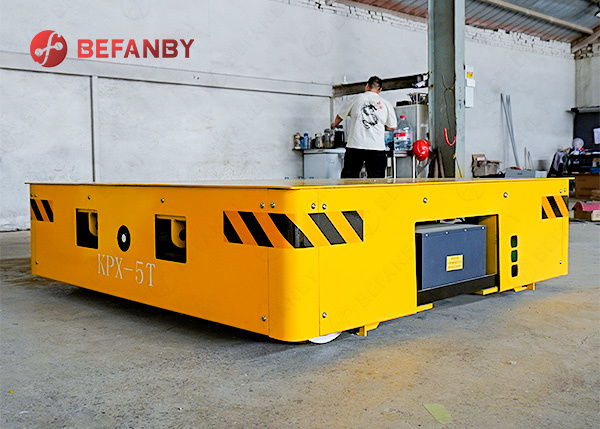

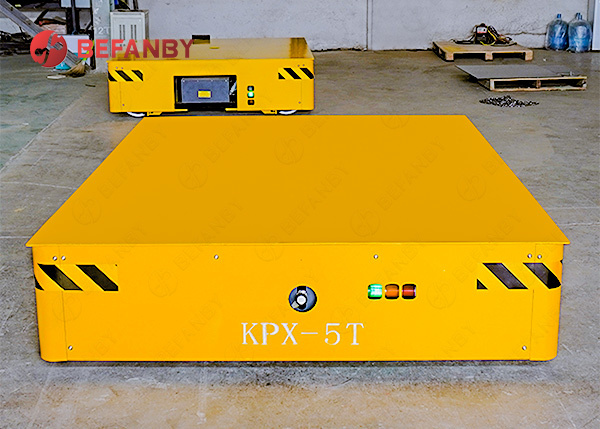

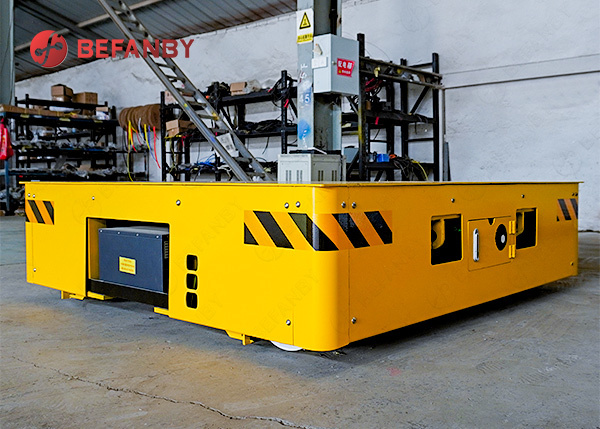

Good Quality Rail Battery Transfer Trolley With 4 Axles

  • Good Quality Rail Battery Transfer Trolley With 4 Axles
  • Good Quality Rail Battery Transfer Trolley With 4 Axles
  • Good Quality Rail Battery Transfer Trolley With 4 Axles
  • Good Quality Rail Battery Transfer Trolley With 4 Axles
  • Good Quality Rail Battery Transfer Trolley With 4 Axles
  • Good Quality Rail Battery Transfer Trolley With 4 Axles
Place of Origin Henan, China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The electric flat car factory will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C,T/T,Western Union
Supply Ability 1000 set/sets per year
Product Details
Wheel Material Insulated Running Speed 0-20m/min
Operation Type Hand Pendent + Remote Control Power Supply Mobile Reel
Load Capacity 1-1000T Material Q235
Leave a Message
Product Description
Good Quality Rail Battery Transfer Trolley With 4 Axles
1. Product Introduce

The battery-powered rail transfer cart utilizes a battery as its power source and features a DC motor drive system. DC motors offer smooth operation, high starting torque, and low noise levels. Operating independently of external power lines, these carts move freely along fixed rails, making them ideal for material transport across workshops, production lines, warehouses, and large industrial complexes. Depending on specific operational requirements, they can be equipped with remote controls, handheld controllers, or smart Bluetooth control systems to ensure highly efficient and safe transport operations.


Good Quality Rail Battery Transfer Trolley With 4 Axles 0

2. Successful Solution

Good Quality Rail Battery Transfer Trolley With 4 Axles 1


3. Befanby Material Handling Equipment Introduce

Good Quality Rail Battery Transfer Trolley With 4 Axles 2


Welcome to inquiry us if you'd like to learn more

4. Technique Parameter
Model KPX-2t KPX-5t KPX--10t KPX--16t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50
5.Our Advantages

Good Quality Rail Battery Transfer Trolley With 4 Axles 3

As a rail-mounted transfer trolley that supports non-standard customization, the battery-powered model can be tailored to specific requirements regarding load capacity, platform dimensions, travel speed, body color, and functional needs. It can also be equipped with various features such as hydraulic lifting, roller conveyors, protective frames, weighing systems, and automatic positioning. Whether transporting molds, steel coils, structural steel, large-scale equipment, or other heavy workpieces, it offers a stable and reliable handling solution—helping enterprises boost logistics efficiency, reduce labor costs, and meet the transport demands of modern smart factories.

6.Exported Company

Good Quality Rail Battery Transfer Trolley With 4 Axles 4
Good Quality Rail Battery Transfer Trolley With 4 Axles 5
Good Quality Rail Battery Transfer Trolley With 4 Axles 6
