Professional Rail Transport Carts With Roller Convey

  • Professional Rail Transport Carts With Roller Convey
  • Professional Rail Transport Carts With Roller Convey
  • Professional Rail Transport Carts With Roller Convey
  • Professional Rail Transport Carts With Roller Convey
Place of Origin Henan, China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Document KPX.pdf
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The electric flat car factory will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C,T/T,Western Union
Supply Ability 1000 set/sets per year
Product Details
Material Q235 Running Speed 0-20m/min
Load Capacity 1-1000T Power Supply Batttery Power
Operation Type Hand Pendent + Remote Control Wheel Material Insulated
Color Customized
Leave a Message
Product Description
Professional Rail Transport Carts With Roller Convey
1. Product Introduce

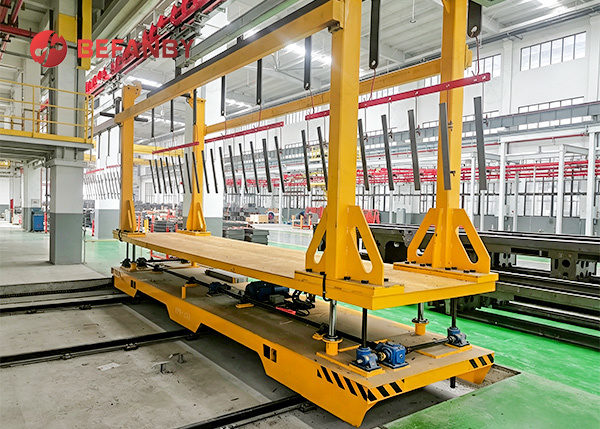

This hydraulic lifting rail transport vehicle uses a fixed rail operation mode, integrating a hydraulic lifting platform, customized tooling brackets, and heavy-duty transport capabilities. It can complete multiple tasks such as material transport, precise positioning, and height adjustment according to different working conditions, providing enterprises with a more efficient and safer transportation solution.


2. Technique Parameter
Model KPX-2t KPX-5t KPX-10t KPX-16t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50
3.Hydraulic Lifting

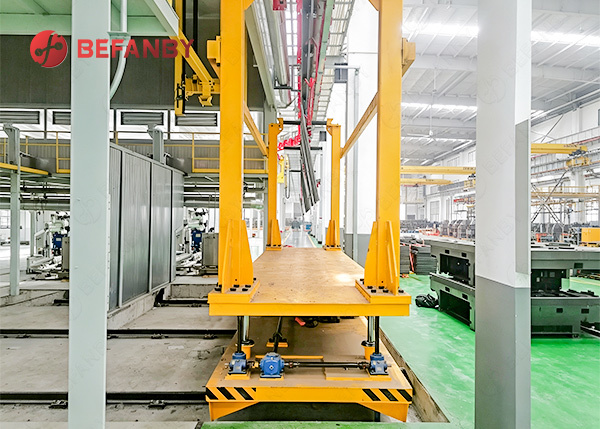

The transfer cart is equipped with a high-performance hydraulic lifting device, ensuring smooth lifting and reliable operation. The height of the equipment can be flexibly adjusted according to different transport conditions, achieving seamless connection between different workstations. Compared to traditional fixed platform transport methods, the hydraulic lifting function effectively reduces manual adjustment time and improves loading and unloading efficiency, making it particularly suitable for automated production lines, automated warehouses, and smart manufacturing workshops.

4.Customized Tooling Brackets

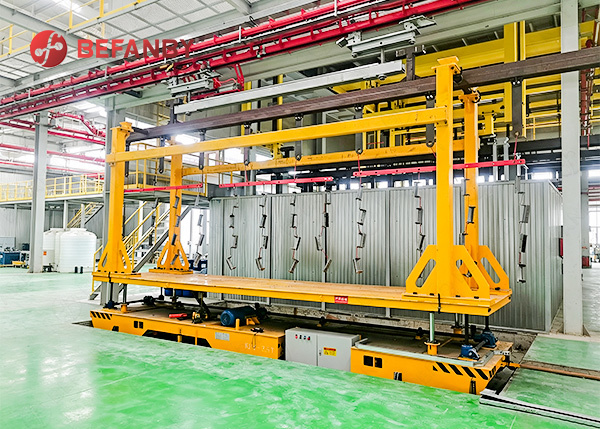

Furthermore, to better meet customers' transportation needs for different materials, the platform is equipped with dedicated tooling brackets, which can be non-standard designed according to the size, weight, and shape of the workpiece. The tooling brackets effectively secure transported materials, preventing accidents during operation and improving transport stability. Whether it's large mechanical parts, molds, steel structures, or irregularly shaped workpieces, safer and more reliable handling can be achieved.

Professional Rail Transport Carts With Roller Convey

5.FAQ

1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.


Professional Rail Transport Carts With Roller Convey

Professional Rail Transport Carts With Roller Convey
