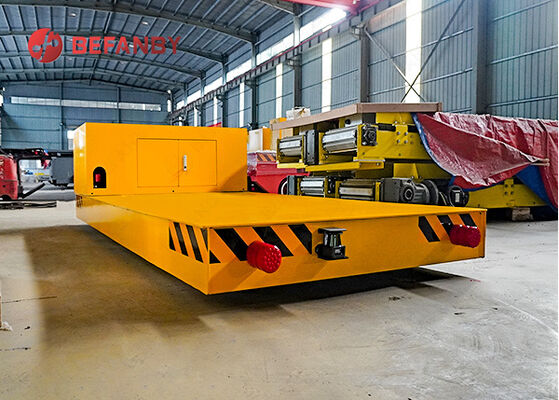

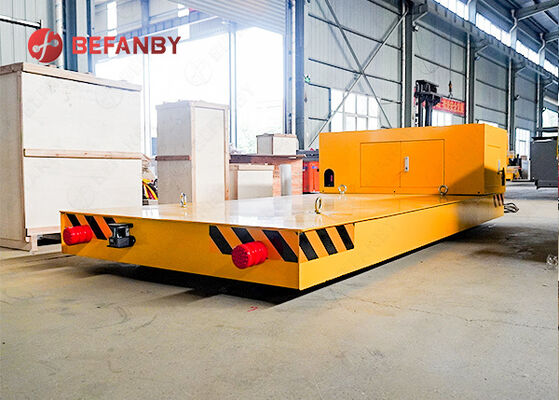

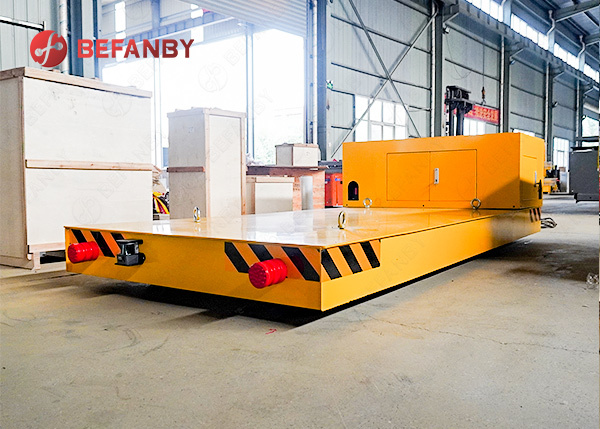

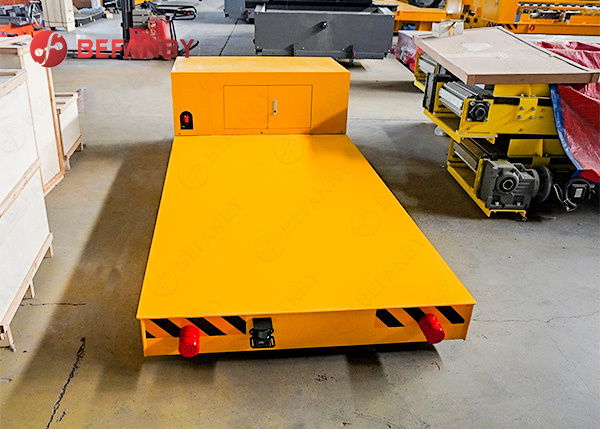

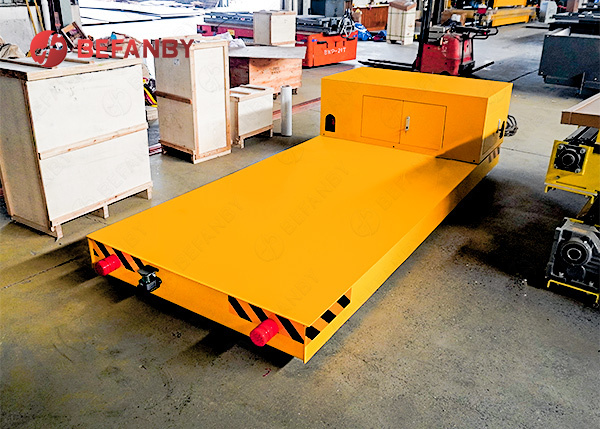

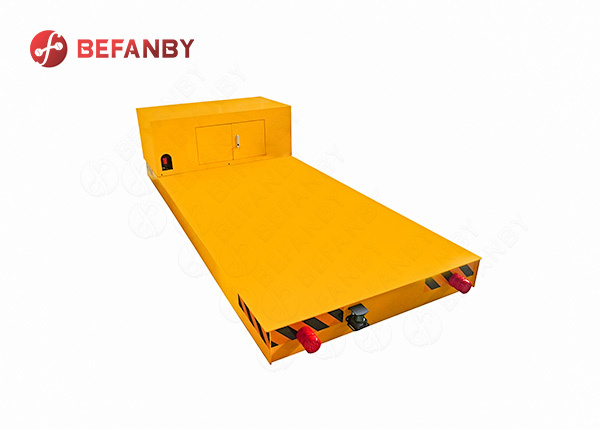

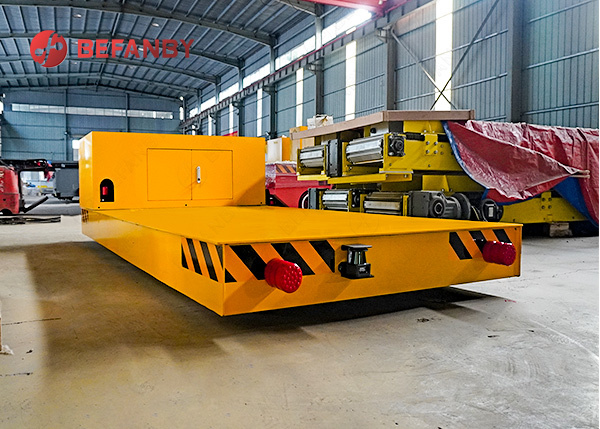

Customized Table Size Electrical Rail Transport Cart With Remote Control
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPT |
| Document | KPDZ.pdf |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The electric transfer cart factory will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1000 set/sets per year |
Product Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Load Capacity | 60T | Power Supply | Cable Reel |
| Operation Type | Hand Pendent + Remote Control | Wheel Material | Insulated |
Product Description
Customized Table Size Electrical Rail Transport Cart With Remote Control
1. Vehicle Body Design
Rail-mounted transfer carts typically feature a box-girder frame or a welded structural steel design, ensuring excellent load-bearing capacity and overall stability. The frame structure, number of wheelsets, and load-bearing layout can be tailored to the specific load capacity, enabling the equipment to handle transport tasks across a range of tonnages.
For heavy materials such as steel, molds, steel coils, machinery, and castings, the platform dimensions and load capacity can be customized based on the client's specific site conditions, ensuring the transfer cart is perfectly matched to actual transport requirements.
2. Technique Parameter
| Model | KPJ-2t | KPJ-5t | KPJ-10t | KPJ-16t | KPJ-20t | KPJ-25t | KPJ-30t | KPJ-40t | KPJ-50t | KPJ-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
3.Multiple Power Supply Options
Depending on the actual operating distance, track layout, and working environment, the rail transfer cart can be configured with various power supply systems—such as battery power, low-voltage rail power, cable reels, or mobile cable drag chains.
Battery power supports extended operation, making it suitable for transport scenarios requiring a degree of mobility; low-voltage rail power is ideal for fixed transport routes; and cable reels can be configured based on operating distance to provide a continuous power solution for medium- to long-range transport.
The specific power supply method can be selected based on the customer's site conditions and operational environment.
4.Comprehensive Safety Design
Transporting heavy loads places high demands on equipment safety and operational stability. These rail transfer carts can be equipped with safety features tailored to site requirements, such as anti-collision buffers, emergency stop buttons, audible and visual alarms, and limit switches.
For the transport of materials prone to shifting—such as steel coils or molds—side supports, positioning devices, and specialized securing structures can be added to minimize the risk of load displacement during transit.
5.FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
