Cable drum hydraulic lifting device electric steel rail material transfer wagon
|Place of Origin||Xinxiang|
|Minimum Order Quantity||1 set|
|Packaging Details||Electrical parts will add shields. As required by the customer, we can add a fixed packing.|
|Delivery Time||50-60 days as usual delivery,40-50days for urgent delivery|
|Payment Terms||30% deposit by T/T in advance, 70%balance by T/T before dispatch|
|Supply Ability||600 sets one year|
|Application||Production Line Or Shipyard||Rated Load||20t|
|Max. Capacity||Up To 300ton||Car Size||2000*2000*500mm|
|Electrical Equipment||Siemens, Schneider, Nord||Exported Countries||Mexico, Australia, Singapore|
|Material||Q235 Steel||Wheel Quantity||4 Pcs|
|Package||The Whole Railroad Trolley Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate||Delivery Time||45-60 Days After Received Advamced Payment|
|Payment Terms||T/T, L/C||Port||Qingdao/Tianjin/Shanghai/Ningbo|
electric material handling cart,
electric transport cart

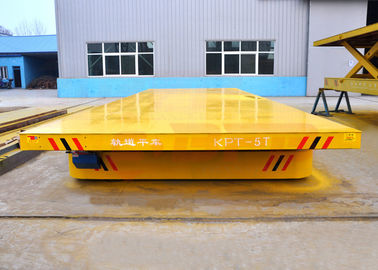

Detailed description of rail material transfer wagon
This kind of rail material transfer wagon is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.
The frame of rail material transfer wagon is welded by high quality steel, with the assistant of running mechanism, gears, AC motor, cable drum, the cart will function under the control system.
Frame Driving system Cable drum
KPJ series rail material transfer wagon is powered by cable drum. The power source 380V alternating-current is supplied to the traction motor by cable, which is collected and released by coiling device monted underneath the railroad trolley. The railroad trolley can realize full automatic operation by PLC system.
Features of rail material transfer wagon
- Anti-explosion,Anti-high temperature;
- Powered by cable;
- With lifting holes, convenient to shipment;
- Stable start, big starting power, long lifetime;
- Simple structure, low cost ;
- Running distance is limited;
- Safe and convenient operation ;
- High using frequency ;
- Unlimited load capacity
- Can be add hydraulic lifting device;
- Can be add dumping device;
- High efficiency, low energy consumption;
Technical parameters of rail material transfer wagon
|Rated load (T)||2||10||20||30||50||63||150|
|Wheel Base (mm)||1200||2600||2800||3200||4200||4300||7000|
|Rail Inner Gauge (mm)||1200||1435||1435||1435||1435||1435||2000|
|Ground Clearance (mm)||50||50||50||50||50||75||75|
|Running speed (min)||0-25||0-25||0-20||0-20||0-20||0-20||0-18|
|Motor Power (Kw)||1||1.6||2.2||3.5||5||6.3||15|
|Running Time When Full Load||4.32||4.8||4||3.5||3.3||3||2.9|
|Running Distance for one Charge(Km)||6.5||7.2||4.8||4.2||4||3.6||3.2|
|Max Wheel Load (KN)||14.4||42.6||77.7||110.4||174||221.4||265.2|
|Reference Weight (t)||2.8||4.2||5.9||6.8||8||10.8||26.8|
|Recommended Rail Model||P15||P18||P24||P38||P43||P50||QU100|
This kind of material transfer wagon is running on steel tracks or steel squre bars.It is commonly applied in shipyard, steel factory, warehouse to transfer heavy materials.
Long platform railroad trolley with cable drum power. It has narrow rail gauge.
The rail material transfer wagon is also applied in the following working station:
- Carry loads along assembly lines;
- transfer material from one work station to the next;
- store and transport an entire shift worth of production.
- They can even be used as a stable yet moveable machine base.
- Our commitment: The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
- 16 hours engineering service and 24 hours internet service for our customers.
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
