Explosion Proof 5T Electric Transfer Cart For Painting Booth Metal Part Transport

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPT-5T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year
Product Details
Application Industrial Blasting Room Or Painting Room Rated Load 5t
Max. Capacity Up To 300ton Car Size 5000*2000*500mm
Electrical Equipment Siemens, Schneider, Nord Exported Countries Mexico, Australia, Singapore
Material Q235 Steel Wheel Quantity 4 Pcs
Package The Whole Rail Flat Trolley Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate Delivery Time 45-60 Days After Received Advamced Payment
Payment Terms T/T, L/C Port Qingdao/Tianjin/Shanghai/Ningbo
High Light

electric material handling cart

,

electric transport cart

Leave a Message
Product Description

Explosion-proof 5T railway painting booth metal part transport proposal



Detailed description of painting booth metal part transport proposal



This kind of 5T railway painting booth metal part transport proposal is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.



The frame of 5T railway painting booth metal part transport proposal is welded by high quality steel, with the assistant of running mechanism, gears, AC motor, cable drum, the cart will function under the control system.

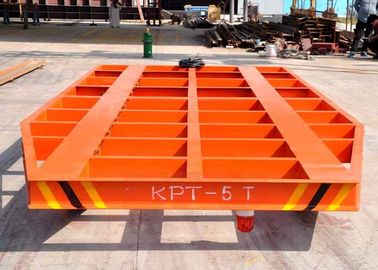

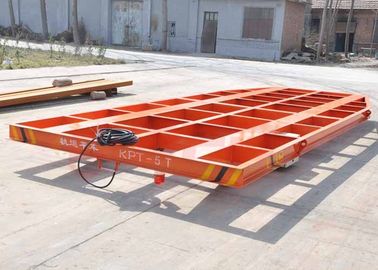

The main structure and frame of the flat trolley

 painting booth metal part transport proposal  painting booth metal part transport proposal



Main parts of 5T railway painting booth metal part transport proposal



5T railway painting booth metal part transport proposal 5T railway painting booth metal part transport proposal 5T railway painting booth metal part transport proposal

                  Frame                                              Driving system                                  Cable drum



5T railway painting booth metal part transport proposal



Painting for the rail coil car, the colour can be yellow, blue, red, grey,etc.



Working principle of painting booth metal part transport proposal


KPT painting booth metal part transport proposal is powered by towed cable The power source 380V alternating-current is supplied to the traction motor by cable.



Features of painting booth metal part transport proposal

  • Anti-explosion,Anti-high temperature;
  • Powered by cable;
  • With lifting holes, convenient to shipment;
  • Stable start, big starting power, long lifetime;
  • Simple structure, low cost ;
  • Running distance is limited;
  • Safe and convenient operation ;
  • High using frequency ;
  • Unlimited load capacity
  • Can be add hydraulic lifting device;
  • Can be add dumping device;
  • High efficiency, low energy consumption;

Technical parameters of painting booth metal part transport proposal



Model
KPT-2T KPT-10T KPT-20T KPT-30T KPT-50T KPT-63T KPT-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Application of painting booth metal part transport proposal


This kind of 5T railway painting booth metal part transport proposal is running on steel tracks or steel squre bars.It is suitable to high using frequency working condition without crossing rails, but the running distance is no more than 200m.



5T railway painting booth metal part transport proposal 5T railway painting booth metal part transport proposal



5T railway painting booth metal part transport proposal 5T railway painting booth metal part transport proposal



In order to the paints and sand is fall down from the platform conveniently, the platform is designed as steel structure.It can protect the trolley be damaged.



The steel structure painting booth metal part transport proposal is also applied in the following working station:

  • Carry loads along assembly lines;
  • transfer material from one work station to the next;
  • store and transport an entire shift worth of production.
  • They can even be used as a stable yet moveable machine base
  • It can be design as separately, 2 sets carts works together
Delivery of painting booth metal part transport proposal


5T railway painting booth metal part transport proposal industrial rail flat trolley for painting room



industrial rail flat trolley for painting room 5T railway painting booth metal part transport proposal


Generally the low bed rail coil cart on tracks is delivery through container, but if the platform is too large, it can be delivery through frame rack

Customer visit in our factory


5T railway painting booth metal part transport proposal 5T railway painting booth metal part transport proposal

Customer feedback

 5T railway painting booth metal part transport proposal

Quality control of rail coil car with lifting device


5T railway painting booth metal part transport proposal




Other rail coil car with lifting device in BEFANBY company


5T railway painting booth metal part transport proposal rail coil car with lifting device

Explosion Proof 5T Electric Transfer Cart For Painting Booth Metal Part Transport 20



Our company

5T railway painting booth metal part transport proposal

Our certificate
5T railway painting booth metal part transport proposal5T railway painting booth metal part transport proposal5T railway painting booth metal part transport proposal



Our service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
