Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPJ-20T
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Production Line Or Shipyard Rated Load 20t
Max. Capacity Up To 300ton Car Size 2000*2000*500mm
Electrical Equipment Siemens, Schneider, Nord Exported Countries Mexico, Australia, Singapore
Material Q235 Steel Wheel Quantity 4 Pcs
Package The Whole Railroad Trolley Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate Delivery Time 45-60 Days After Received Advamced Payment
Payment Terms T/T, L/C Port Qingdao/Tianjin/Shanghai/Ningbo
High Light

electric warehouse cart

,

electric material handling cart

Leave a Message
Product Description

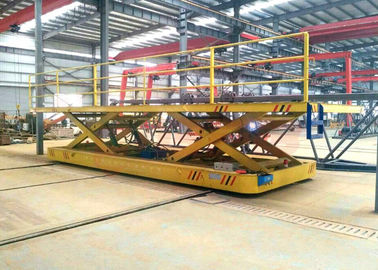

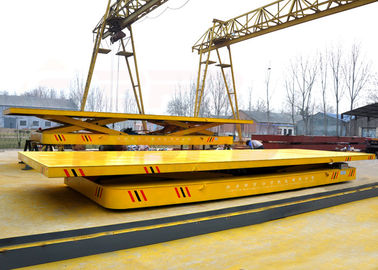

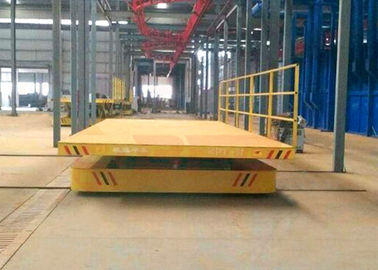

Cross bay rail mounted hydraulic vehicle with large platform and rail gauge





Detailed description of rail mounted hydraulic vehicle



This kind of cross bay rail mounted hydraulic vehicle is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.



The frame of cable drum powered rail mounted hydraulic vehicle is welded by high quality steel, with the assistant of running mechanism, gears, AC motor, cable drum, the cart will function under the control system.



railroad trolley railroad trolley

wide platform transport wagon Driving system of the rail wagon Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge 4

                  Frame                                              Driving system                                  Cable drum



Working principle of rail mounted hydraulic vehicle


KPJ series rail mounted hydraulic vehicle is powered by cable drum. The power source 380V alternating-current is supplied to the traction motor by cable, which is collected and released by coiling device monted underneath the railroad trolley. The railroad trolley can realize full automatic operation by PLC system.



Features of rail mounted hydraulic vehicle

  • Anti-explosion,Anti-high temperature;
  • Powered by cable;
  • With lifting holes, convenient to shipment;
  • Stable start, big starting power, long lifetime;
  • Simple structure, low cost ;
  • Running distance is limited;
  • Safe and convenient operation ;
  • High using frequency ;
  • Unlimited load capacity
  • Can be add hydraulic lifting device;
  • Can be add dumping device;
  • High efficiency, low energy consumption;

Technical parameters of rail mounted hydraulic vehicle



Model
KPJ-2T KPJ-10T KPJ-20T KPJ-30T KPJ-50T KPJ-63T KPJ-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Application of rail mounted hydraulic vehicle


This kind of rail mounted hydraulic vehicle is running on steel tracks or steel squre bars.It is commonly applied in shipyard, steel factory, warehouse to transfer heavy materials.



 Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge 5



Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge 6

Long platform railroad trolley with cable drum power. It has narrow rail gauge.





Small dimension railroad trolley, it equipped with bumper, to protect the trolley be damaged.



Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge 7 railroad trolley.



industrial railway trolley industrial railway trolley

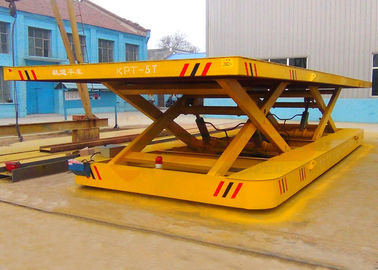

There is electric rail mounted hydraulic vehicle of the railway trolley, It can lift up and down materials freely.



The rail mounted hydraulic vehicle is also applied in the following working station:

  • Carry loads along assembly lines;
  • transfer material from one work station to the next;
  • store and transport an entire shift worth of production.
  • They can even be used as a stable yet moveable machine base.
Delivery of railway trolley


railway trolley. railway flat wagon



industrial steel coil railway trolley  large dimension railway trolley


Generally the rail mounted hydraulic vehicle on tracks is delivery through container, but if the platform is too large, it can be delivery through frame rack

Customer visit in our factory


railway flat wagon Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge 16

Customer feedback

 railroad trolley

Quality control of large dimension railroad trolley


railroad trolley




Other rail mounted hydraulic vehicle in BEFANBY company


Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge 19 Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge 20

Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge 21



Our company

railroad trolley

Our certificate
Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge 23railroad trolleyrailroad trolley



Our service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
