Rail guided manufacturing factory transformer machinery equipment transport

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPDZ-30T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Production Line Or Crossing Rails Workshop Rated Load 30t
Max. Capacity Up To 300ton Car Size 8000*3000*500mm
Electrical Equipment Siemens, Schneider, Nord Exported Countries Mexico, Australia, Singapore
Material Q235 Steel Wheel Quantity 4 Pcs
Package The Whole Cart Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate Delivery Time 45-60 Days After Received Advamced Payment
Payment Terms T/T, L/C Port Qingdao/Tianjin/Shanghai/Ningbo
High Light

heavy duty die carts

,

motorized rail cart

Leave a Message
Product Description

Rail guided manufacturing factory transformer machinery equipment transport


Description of transformer machinery equipment transport



The frame of machinery equipment transport is welded by high quality steel, with the assistant of running mechanism , gears, AC motor, current collector, the cart will function under the control system. The transfer cart is remote control, or PLC control.

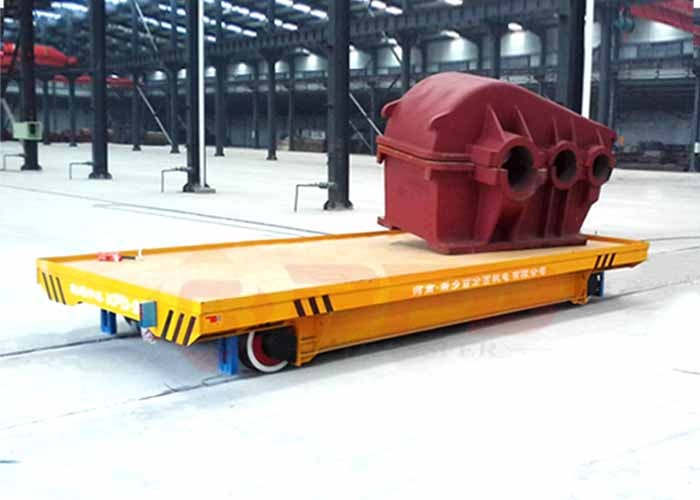

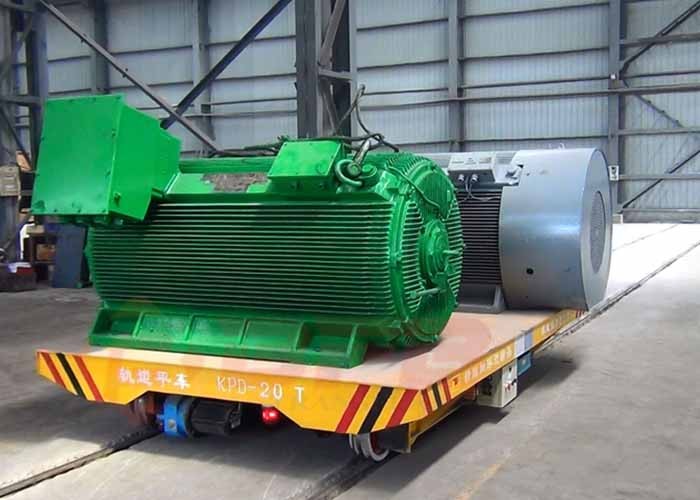

Rail guided manufacturing factory transformer machinery equipment transport 0 Rail guided manufacturing factory transformer machinery equipment transport 1



The machinery equipment transport is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it can’t influence its working property.

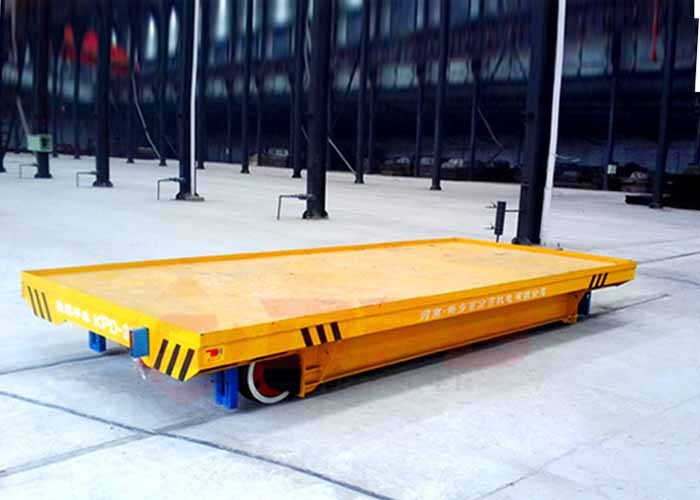

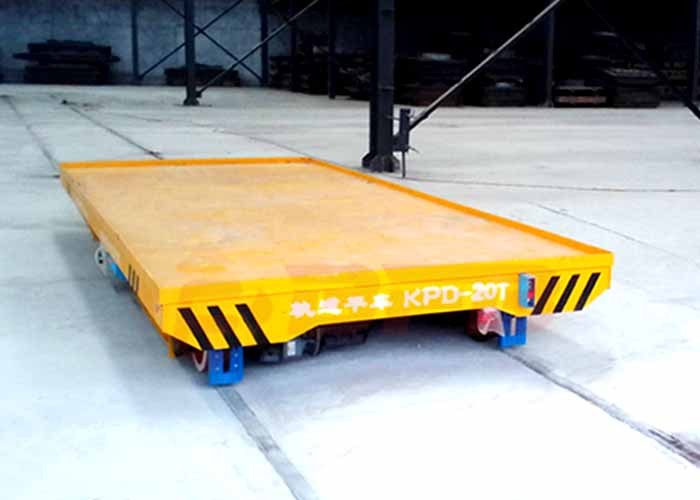

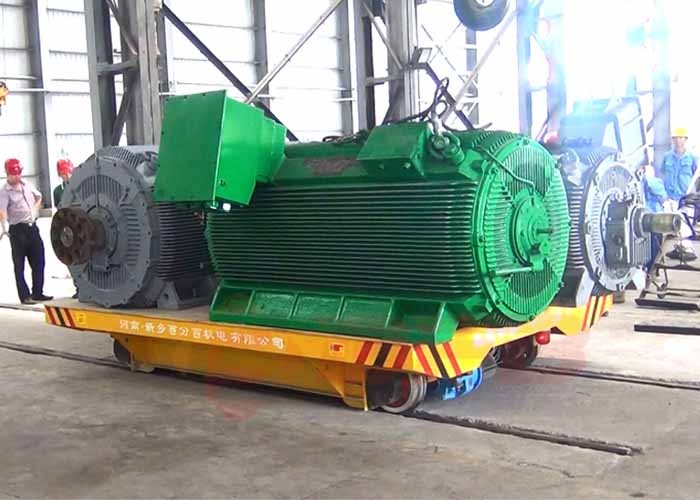

Rail guided manufacturing factory transformer machinery equipment transport 2 Rail guided manufacturing factory transformer machinery equipment transport 3 Rail guided manufacturing factory transformer machinery equipment transport 4

                  Frame                                            Driving system                               Steel wheel

rail car Rail guided manufacturing factory transformer machinery equipment transport 6 Rail guided manufacturing factory transformer machinery equipment transport 7

                    Reducer                                Light & sound alarm                            Bumper



Functions of machinery equipment transport

  • Go forward and backward,
  • Turn left and right,
  • Adjust speed button,
  • Indicator light,
  • Electric indicator light and other control buttons.
Working principle of  machinery equipment transport


KPDZ type machinery equipment transport is powered from 36v two-phase rails. It is two-phase electricity on rails. the transfer cart’s wheels conduct the AC 36v on rail into the electrical appliance box at the bottom of the carts. And then the AC 36v is transfer into DC 36v and then control the DC motor through the DC control system to make transfer cart start,stop,forward, and backward,etc.



The voltage of operating system is 36v safe voltage. After the transformer step-down from 380v AC three-phase, the rails got the electricity.



Advantages of machinery equipment transport

  • Has no lit on using time and high working frequency;
  • Can be used in high-temperature environment;
  • Can be used in explosion-proof environment;
  • Safety and flexibility;
  • Large toad capacity, can reach to 50 tons;

Detailed description of machinery equipment transport



The machinery equipment transport is suitable for working environment with not so long running distance, such as steel factory, machinery manufacturing plant, etc.



machinery equipment transport machinery equipment transport



The machinery equipment transport is applied in workshop to transfer heavy materials bay to bay. The rails should be insulated.



Rail guided manufacturing factory transformer machinery equipment transport 10 Rail guided manufacturing factory transformer machinery equipment transport 11



Rail guided manufacturing factory transformer machinery equipment transport 12



This kind of machinery equipment transport can also be applied on turning rails, arc-shaped rails.


Technical parameters of machinery equipment transport



Model KPDZ-2t KPDZ-20t KPDZ-50t KPDZ-100t KPDZ-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Transformer Power(KVA) 3 6.8 10 30 30
Transformer Quanity 1 1 1 1 1
Running Distance(m) 70 70 50 50 50
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

Delivery of machinery equipment transport


Rail guided manufacturing factory transformer machinery equipment transport 13 Rail guided manufacturing factory transformer machinery equipment transport 14

Rail guided manufacturing factory transformer machinery equipment transport 15 Rail guided manufacturing factory transformer machinery equipment transport 16


Generally the machinery equipment transport is delivery through container, but if the platform is too large, it can be delivery through frame rack

Customer visit in our factory


Rail guided machinery equipment transport ladle car


Quality control of machinery equipment transport


Rail guided machinery equipment transport



Other product of BEFANBY company



Rail guided manufacturing factory transformer machinery equipment transport 20 Rail guided manufacturing factory transformer machinery equipment transport 21



Our company

Rail guided machinery equipment transport

Our certificate
Rail guided machinery equipment transportRail guided manufacturing factory transformer machinery equipment transport 24Rail guided machinery equipment transport




Our service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

.
