25t Electric remote control steel coils handling crane tracks trailer
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPD-25T |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 50-60 days as usual delivery,40-50days for urgent delivery |
| Payment Terms | 30% deposit by T/T in advance, 70%balance by T/T before dispatch |
| Supply Ability | 600 sets one year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Production Line Or Metal Industry | Rated Load | 25t |
|---|---|---|---|
| Max. Capacity | Up To 300ton | Car Size | 8000*3000*500mm |
| Electrical Equipment | Siemens, Schneider, Nord | Exported Countries | Mexico, Australia, Singapore |
| Material | Q235 Steel | Wheel Quantity | 4 Pcs |
| Package | The Whole Aluminum Rail Vehicle Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate | Delivery Time | 45-60 Days After Received Advamced Payment |
| Payment Terms | T/T, L/C | Port | Qingdao/Tianjin/Shanghai/Ningbo |
| High Light | motorized rail cart,industrial material carts |
||
Product Description

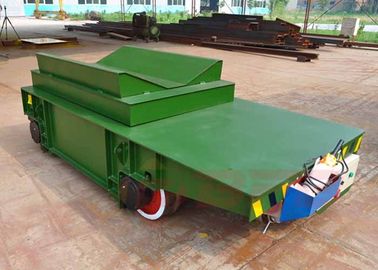

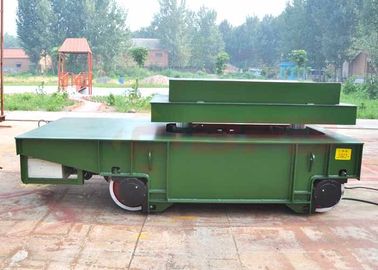

Electric remote control steel coils handling crane tracks trailer
Working principle of crane tracks trailer
The steel coils handling crane tracks trailer is powered by electric busbar (electric sliding line). It gets power from sliding line during the cart running. The electric control system of the cart realize it start, stop, go forward and backward.
Features of crane tracks trailer
- Simple structure, low cost;
- Has no strict on rail construction;
- Suitable to working area with short running distance;
- Suitable to working area with high using frequency;
- Has no limit on running distance;
- Can be applied in high-temperature environment;
- Box girder structure;
- Reasonable design, reliable operation;
- Can be add hydraulic lifting device;
- Can be add dumping device;
- High efficiency, low energy consumption;
Detailed description of crane tracks trailer
This kind of steel coils handling crane tracks trailer is running on steel tracks or steel squre bars. For special handling requirement, additional rails can be installed on the platform of the rail traverser, then another rail cart can run on the platform. It can solve the transferring problem with crossing rail or 90 degree rails.
Production flow of crane tracks trailer
Main parts of steel coils crane tracks trailer
The main parts of crane tracks trailer includes frame, cast wheel, motor and reducer, electric control box, and other safety device.
Steel frame Casting wheel Light & sound alarm
Driving mechanism Reducer Bumper
Technical parameters of crane tracks trailer
|
Model
|
KPC-2T | KPC-10T | KPC-20T | KPC-30T | KPC-50T | KPC-63T | KPC-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
Application of aluminum rail vehicle
This kind of crane track trailer is applied in metal industry to transfer paper coils from production to warehouse. It is running on steel tracks or steel squre bars.It is also applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer cylinder materials from producing line to store.
In order to protect security, a V-frame is added on the platform.
Delivery of crane tracks trailer
Generally the crane tracks trailer is delivery through container, but if the platform is too large, it can be delivery through frame rack.
Customer visit in our factory
Customer feedback
Quality control of rail transfer table
Other rail handling car in BEFANBY company
Our company
Our certificate
FAQ
- Q: What is the capacity of crane tracks trailer? A: The capacity can be customized, the max. Load capacity can reach to 300 tons.
2. Q: What is the using candition?
A: The environment temperature should be in level. such as production line
3. Q: What is the working speed of the ladle car?
A: The standard running speed is 0-20m/min.
