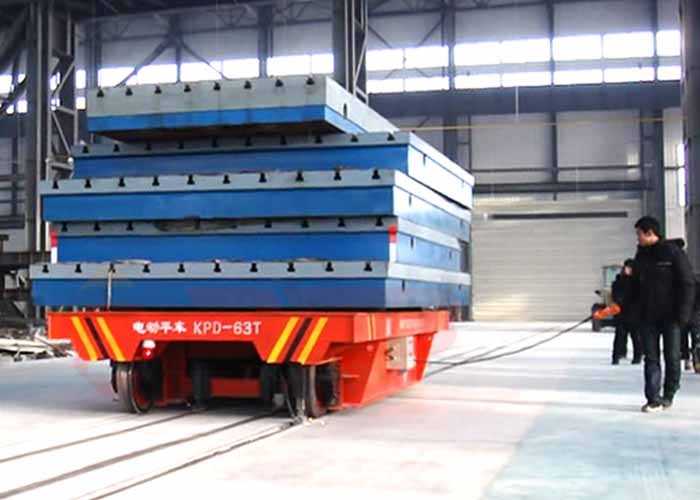

Shipyard apply electricity self-driven transfer cart on crane rail
|Place of Origin||Xinxiang|
|Minimum Order Quantity||1 set|
|Packaging Details||Electrical parts will add shields. As required by the customer, we can add a fixed packing.|
|Delivery Time||50-60 days as usual delivery,40-50days for urgent delivery|
|Payment Terms||30% deposit by T/T in advance, 70%balance by T/T before dispatch|
|Supply Ability||600 sets one year|
|Application||Production Line Or Crossing Rails Workshop||Rated Load||50t|
|Max. Capacity||Up To 300ton||Car Size||8000*3000*500mm|
|Electrical Equipment||Siemens, Schneider, Nord||Exported Countries||Mexico, Australia, Singapore|
|Material||Q235 Steel||Wheel Quantity||4 Pcs|
|Package||The Whole Cart Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate||Delivery Time||45-60 Days After Received Advamced Payment|
|Payment Terms||T/T, L/C||Port||Qingdao/Tianjin/Shanghai/Ningbo|
heavy duty die carts,
motorized rail cart
Description of self-driven transfer cart on crane rail
The frame of self-driven transfer cart on crane rail is welded by high quality steel, with the assistant of running mechanism , gears, AC motor, current collector, the cart will function under the control system. The transfer cart is remote control, or PLC control.
The self-driven transfer cart is applied in steel plant or shipyard to transfer heavy load large dimension workpieces.
The self-driven transfer cart is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it can’t influence its working property.
Frame Driving system Steel wheel
Reducer Light & sound alarm Bumper
Functions of self-driven transfer cart
- Go forward and backward,
- Turn left and right,
- Adjust speed button,
- Indicator light,
- Electric indicator light and other control buttons.
KPDZ type self-driven transfer cart is powered from 36v two-phase rails. It is two-phase electricity on rails. the transfer cart’s wheels conduct the AC 36v on rail into the electrical appliance box at the bottom of the carts. And then the AC 36v is transfer into DC 36v and then control the DC motor through the DC control system to make transfer cart start,stop,forward, and backward,etc.
The voltage of operating system is 36v safe voltage. After the transformer step-down from 380v AC three-phase, the rails got the electricity.
Advantages of self-driven transfer cart
- Has no lit on using time and high working frequency;
- Can be used in high-temperature environment;
- Can be used in explosion-proof environment;
- Safety and flexibility;
- Large toad capacity, can reach to 50 tons;
Detailed description of self-driven transfer cart
The self-driven transfer cart is suitable for working environment with not so long running distance, such as steel factory, machinery manufacturing plant, etc.
The self-driven transfer cart is applied in workshop to transfer heavy materials bay to bay. The rails should be insulated.
This kind of self-driven transfer cart can also be applied on turning rails, arc-shaped rails.
Technical parameters of self-driven transfer cart
|Rail Inner Gauge(mm)||1200||1435||1435||2000||2000|
|Max Wheel Load(KN)||14.4||77.7||174||343.8||265.2|
|Recommended Rail Model||P15||P24||P43||QU100||QU100|
Delivery of self-driven transfer cart
Other product of BEFANBY company
- Our commitment: The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
- 16 hours engineering service and 24 hours internet service for our customers.
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
