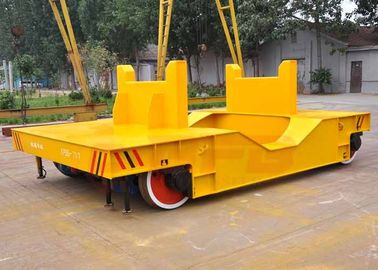

Cylinder Object Rail Transfer Cart V Frame 0 - 20m / Min Running Speed
|Place of Origin||Henan, China|
|Minimum Order Quantity||1 set/sets|
|Packaging Details||Electrical parts will add shields. As required by the customer, we can add a fixed packing.|
|Delivery Time||50-60 days as usual delivery,40-50days for urgent delivery|
|Payment Terms||L/C, T/T, Western Union|
|Supply Ability||600 set/sets per year|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Running Distance||According To Customers'demand||Warranty||12 Months|
|Load Capacity||1-300T||Application||Industrial Field|
heavy duty die carts,
industrial material carts
KPD series' rail carry trailer is powered by low voltage electricity from railways, the kind of rail trailer is one of the most convenient and it often can be widely used in the industry field an so on. Of course,compaired other rail trailer,its main features as it follows,its rails is isulated with the ground, and its wheels are isulated with the ground, so doesn't others.it is the advantage that the flat cart have, why we disign is that its convenient (only rails needed) and its simple operation. About us, Our company have professional team and utilize more advanced technique to make it , and it has been a long year to manufacture it attentively.Simutaneously,it will be more easy and flexible.
KPDZ rail trailer, the power source AC380v is transformed into AC36v two-phase and are respectively connected to the two rails.Then the flat carts' wheels conduct the AC36v on rail into the electrical appliance box at the bottom of the carts, And then the AC36v is transformed into DC36v and then control the DC motor through the DC control system to make the flat carts start, stop, go forward and backward railways.
- Anti-high temperature
- Safe devices are installed
- Customization can be supported
- Apply to various occasions
- The hydraulic lifting can be installed as per your true demand
- V frame is added for cylinder
- safety, flexibility, stable start, big starting torque, small capacity to the gear gearing
- Low voltage, long lifetime
- The running distance is not limited.
- when the running distance is more than 70m, it is better to increase the transformers to make up for the voltage which as been lowed.
|Rail Inner Gauage||1200||1435||1435||1435||1435||1435||1435||1435||1435||1435|
|Max Wheel Load||14.4||25.8||42.6||64.5||77.7||94.5||110.4||142.8||174||221.4|
|Recommended Rail Model||P15||P18||P18||P24||P24||P38||P38||P43||P43||P50|
|Product Name||Model No.||Power Supply Mode||Load Capacity||Other Items||Usage|
|Rail Transfer Cart||KPD||Conductor Rail||Load range 1-300ton, can be customized per client demand||Running distance||Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc|
|Battery Powered Transfer Car||KPX||Battery||Using frequency|
|Motorized Transfer Trolley||KPJ||Cable Drum||Running distance|
|Busbar Powered Handling Cart||KPC||Busbar||Working shop|
|Towed Rail Trailer||KP||Tractor||1-100t||Working shop|
|Steerable Towed Car||BWT||Tractor||Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.||Working environment|
|Trackless Handling Machine||BWP||Battery||Working path|
- Transfer or handling what material/cargo?
- What capacity do you need?
- This trasnfer trolley is running on rails or ground(floor)?
- Your requirment for table size:length,width and height?
- How about the running distance?
- How many working hours in per day?
- Our commitment:
- The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
- 16 hours engineering service and 24 hours internet service for our customers
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
