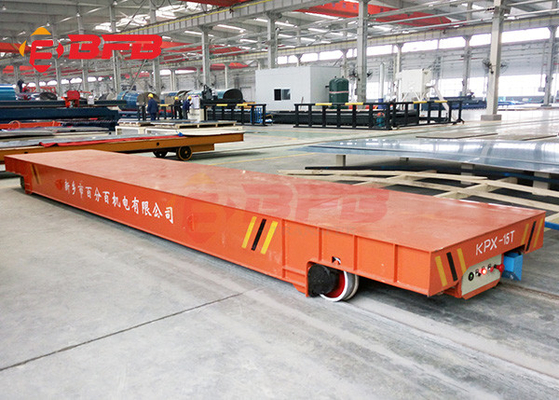

China Customized Yellow Motorized Cart Moving On Rails,BEFANBY Electric Battery Powered Industry Vehicles

Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price $3000-6000/Per Set
Packaging Details The transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40 days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 600 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name China Customized Yellow Motorized Cart Moving On Rails,BEFANBY Electric Battery Powered Industry Vehicles Color Customized
Application Industrial Field Running Speed 0-20m/min
Running Distance Unlimited Warranty 12 Months
Port Qingdao/Tianjin/Shanghai Load Capacity 1-500T
Operation Type Hand Pendant + Remoete Control Power Supply Battery Powered
High Light

battery operated cart

,

rail transfer trolley

Leave a Message
Product Description
China customized yellow motorized cart moving on rails,BEFANBY electric battery powered industry vehicles

1. The profile of China customized yellow motorized cart moving on rails,electric battery powered industry vehicles


Working principle
This kind of China customized yellow motorized cart moving on rails,BEFANBY electric battery powered industry vehicles is powered by Maintenance free battery , The maintenance free battery is installed in the cart, which can be installed in the side or one side of the motorized cart, and supply DC electricity to the control system, which makes the cart start, stop, go forward, back forward and so on.
Cart Parts



The cart is made of Maintenance free battery, Intelligent Charger; DC motor(soft start), reducer, cart frame, rail wheel, electric appliance, operation handle, remote control, Sound&light alarm, dead man top, etc.



Feature



1. The motorized cart can realize turning due to no cable(S rail, C rail, arc shaped rail)

2. The motorized cart has no limited workig distance

3. The motorized cart can be applied in high temperature, explosive, dust, water road environment and so on.

4. The running speed is adjusted

5. Save cost with high frequency.

6. Long life time and environmental

7. Please contact us if you'd like to learn more.



Application



The China customized yellow motorized cart moving on rails,BEFANBY electric battery powered industry vehicles is mainly applied in many occasions.



a. Working line (ring production line, loop production line),

b. Metallurgy industry (steel ladle)

c. Warehouse transport, ship industry (maintenance, assemble, container transport)

d. Workpiece transport in workshop,

e. Lathe transport

f. Steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure)

g. Construction(bridge, simple building, concrete, concrete column)

h. Petroleum industry (oil pump, sucker rod and parts)

I. Energy (polycrystalline silicon, generator, windmill)

j. Chemical industry (electrolytic cell, retort etc),

k. Railway (rail maintenance, rail welding, train tractor).



 Customizable manufacture the transfer cart



1. Appearance:Table Size, Table Material, Table structure,Load Capacity, Color, Wheel Base,Detachable structure etc.



2. Special Function: Hydraulic Lift Table, Dumpling, Climbing, V shape, PLC control system, Automatic Positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system etc.



3. Safety Device: Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails etc.



4. Special Design: Round corner, Hold pendant box, Lifting hole etc.







China Customized Yellow Motorized Cart Moving On Rails,BEFANBY Electric Battery Powered Industry Vehicles

China Customized Yellow Motorized Cart Moving On Rails,BEFANBY Electric Battery Powered Industry Vehicles





China Customized Yellow Motorized Cart Moving On Rails,BEFANBY Electric Battery Powered Industry Vehicles


2. Technique Parameter of customized yellow motorized cart moving on rails,battery powered industry vehicles

Model KPX-2t KPX-5t KPX-10t KPX-16t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 1 1.2 2 2.2 3 3.5 4 5 6.3 8 10 15 15
Battery Capacity 180 180 160 180 180 250 250 300 330 400 400 440 600
Battery Voltage 24 36 48 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100



China Customized Yellow Motorized Cart Moving On Rails,BEFANBY Electric Battery Powered Industry Vehicles



3.Transportation solution of China customized yellow motorized cart moving on rails,electric industry vehicles



I, BEFANBY China customized yellow motorized cart moving on rails,electric battery powered industry vehicles not only have sold across the country, but also exported to US, Canada, Thailand, Netherlands, South Africa, UAE, Turkey, Saudi Arabia etc.



II, The China customized yellow motorized cart moving on rails,electric battery powered industry vehicles is packed with tarp, and the wheel , rails and parts of the industrial material handling robust railcar will be packed by the high quality wooden case.



III, According the table size and quantity, the industrial material handling robust railcar would be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.



China Customized Yellow Motorized Cart Moving On Rails,BEFANBY Electric Battery Powered Industry Vehicles
