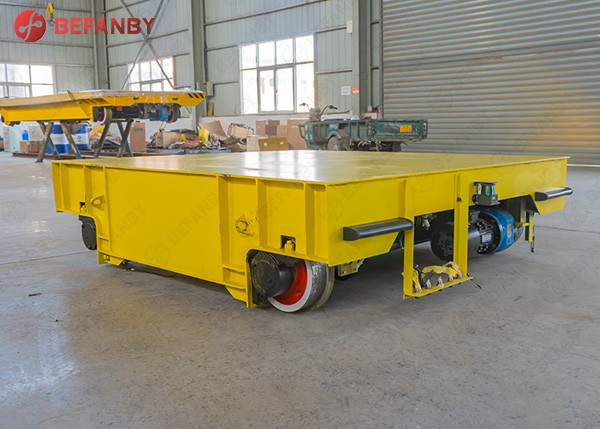

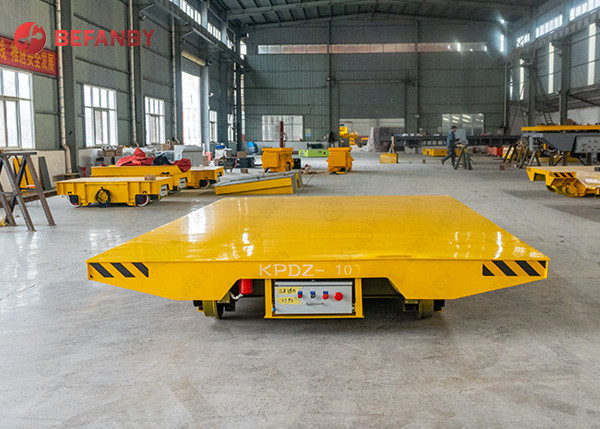

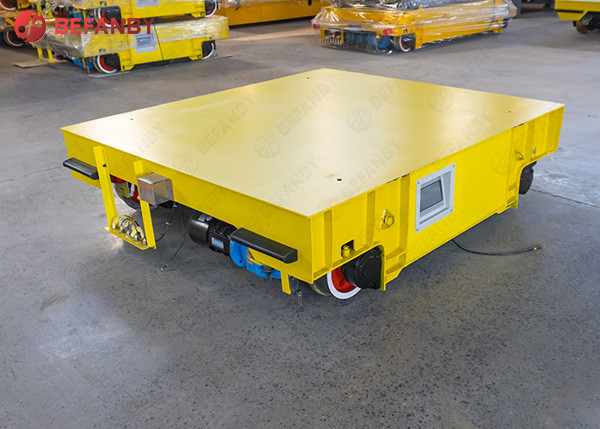

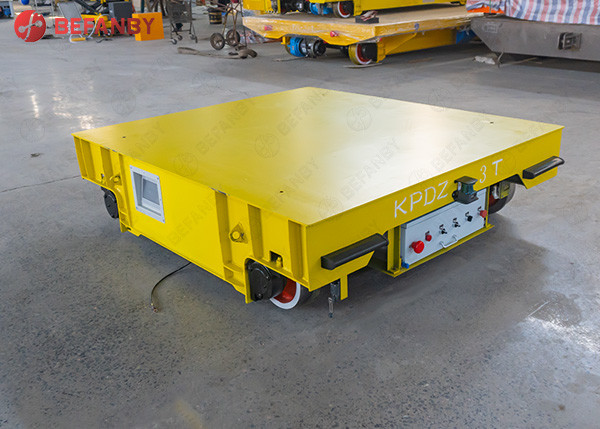

20m/Min 6 Ton Flat Table Self Propel Rail Transfer Cart
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPD |
| Minimum Order Quantity | 1 set/sets |
| Packaging Details | The railway transfer car will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Running Distance | According To Customers'demand | Warranty | 18 Months |
| Load Capacity | 1-1000T | Application | Industrial Field, Steel Rolls Handling, Steel Billiets Transfer |
| Port | Qingdao/Tianjin/Shanghai | Color | Customized |
| Power Supply | Low Voltage Electricity Operated | Operation Type | Hand Pendent + Remote Control |
| Rail And Wheel | Insulated Material Will Be Added | ||
| High Light | Self Propel Rail Transfer Cart,Flat Table Rail Transfer Cart |
||
Product Description
Steel Roll Handling Self-Propel Flat Table Railway Transfer Car 6 Ton Supplier
1. Product Introduce
BEFANBY steel roll handling self-propel flat table railway transfer car 6 ton supplier is powered by low voltage electricity from railways, the kind of transfer cart is one of the most convenient material handling equipment and it often can be widely used in the industry field and so on. Of course,compared other transfer trolley,it main features as it follows,its rails is isulated with the ground, and its wheels are isulated with the ground, so doesn't others.it is the advantage that the tracks trolley have, why we design is that its convenient (only rails needed) and its simple operation.
About BEFANBY, Our company have professional team and utilize more advanced technique to design and develope it , and it has been a long year to manufacture it attentively. Simutaneously, it will be more easy and flexible.Simple structure and low cost make it popular for workshop transportation.
|
Please contact us if you's like to learn more details and get the quotation.
BEFANBY have over 16 years' experience in the material handling fields. |
2. Working Principle
BEFANBY steel roll handling self-propel flat table railway transfer car 6 ton supplier, the power source AC380v is transformed into AC36v two-phase and are respectively connected to the two rails.Then the flat carts' wheels conduct the AC36v on rail into the electrical appliance box at the bottom of the carts, And then the AC36v is transformed into DC36v and then control the DC motor through the DC control system to make the flat carts start, stop, go forward and backward railways.
3. Feature
A.The steel roll handling self-propel flat table railway transfer car 6 ton supplier can be applied for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, die/mold, mould, etc
B.For horizontal load transfers of a wide range of material, hycrane has the heavy duty, high quality Transfer Cart solution you need.
C.Steel roll handling self-propel flat table railway transfer car 6 ton supplier are used to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base.
D.It's necessary equipment for lifting goods,raising labor efficiency,improving working conditions.
4. Technique Parameter
| Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
6. Successful case
Our low-voltage track steel roll handling self-propel flat table railway transfer car 6 ton supplier is exported to foreign countries. A steel company in Uzbekistan ordered us a 20-ton low-pressure rail truck. The ordering truck was mainly used to transport steel plates, transported from the workshop to the warehouse, and the total transportation distance was 150 meters. A total of two transformers were added to compensate for the rail buck. There is no cable drag in the workshop and there is a fixed transportation route, which increases safety. Convenient for other activities.
