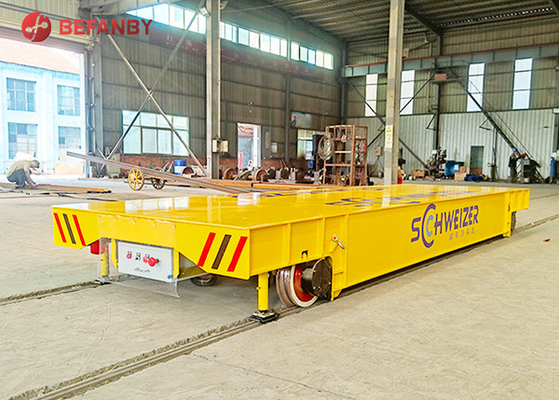

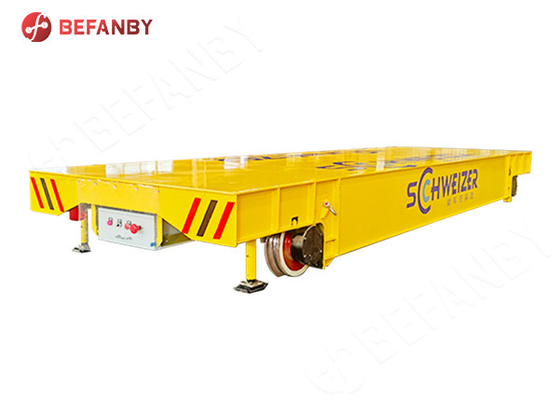

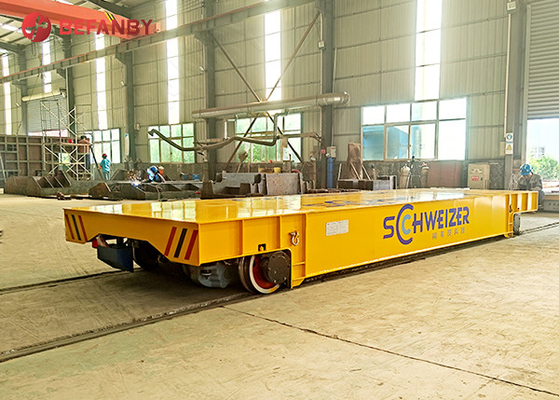

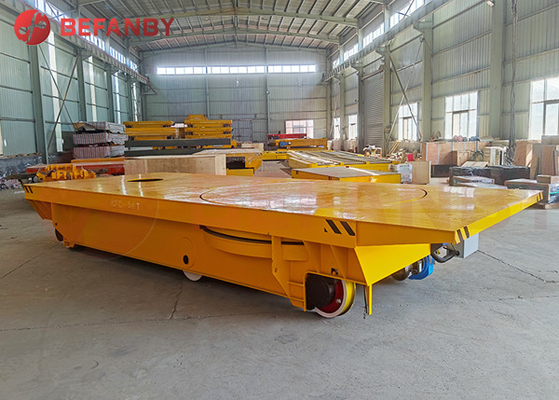

100t Low Voltage Steel Iron Handling Rail Transfer Cart

A steel group located in Zhangjiagang City ordered two KPD low-voltage track electric flat cars from Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd., which produced in-plant trucks as its leading product, on May 07, 2020.

flat carts power supply system custom manufacture flat cars

The technical parameters of electric transfer carts are as follows:
1. Load capacity: 30t (safety load factor 150%);
2. Table size: 8000*3000*900mm;
3. Power supply mode: low-voltage rail power supply;
4. Operation mode: onboard handle + remote control;
5. Motor power: 15Kw;
6. Operating speed: 0-20m/min;
7. Wheel diameter: 700mm;
8. Vehicle color: RAL1004;
9. Track model: P50.
1. The steel group is a production base of electric furnace steel and special steel, a key enterprise group in Jiangsu Province, a national super large industrial enterprise, and China's largest private steel enterprise. The annual production capacity is 29 million tons of ironmaking, 35 million tons of steelmaking, and 33 million tons of rolled materials. Shagang has successively won the "National Customer Satisfaction Enterprise", "China Quality Service Credit AAA Enterprise", "China Credit Enterprise", "National Innovative Pilot Enterprise", "China Environmental Protection Demonstration Unit", "Jiangsu Province High-tech Enterprise", "Jiangsu Province Circular Economy Construction Demonstration Unit" and other honorary titles. Leading products include wide and heavy plates, hot rolled coils, stainless steel hot rolled and cold rolled plates, etc.


2. The transfer carts purchased this time are mainly used in ferroalloy processing workshops. The ferroalloy processing workshop is to process the finished alloy raw materials: nickel plate, manganese and other rare metals to the stacking port of the electric furnace. Because the nickel plate is heavy, it needs to be transported by electric flat cars. Transported to the cutting machine, cut into about 20cm wide and 80cm long strips, then cut into about 50*50cm squares with a small shearing machine, and conveyed to the electric furnace through a conveyor belt.
