Warehouses Q235 10T Electric Transfer Cart Material Handling

  • Warehouses Q235 10T Electric Transfer Cart Material Handling
  • Warehouses Q235 10T Electric Transfer Cart Material Handling
  • Warehouses Q235 10T Electric Transfer Cart Material Handling
  • Warehouses Q235 10T Electric Transfer Cart Material Handling
  • Warehouses Q235 10T Electric Transfer Cart Material Handling
  • Warehouses Q235 10T Electric Transfer Cart Material Handling
Place of Origin Henan, China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPD
Minimum Order Quantity 1 set/sets
Packaging Details The electric flat car factory will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 set/sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Q235 Running Speed 0-20m/min
Running Distance According To Customers'demand Warranty 18 Months
Load Capacity 1-1000T Application Industrial Field, Metal Plant Use,material Handling Equipment
Port Qingdao/Tianjin/Shanghai Color Customized
Power Supply Low Voltage Rail Powered Operation Type Hand Pendent + Remote Control
Rail And Wheel Insulated Material Will Be Added
High Light

10T Electric Transfer Cart

,

Q235 Electric Transfer Cart

,

Warehouses Electric Transfer Cart
Leave a Message
Product Description
10T Metal Plant Use Electric Rail Transfer Wagon On Tracks


1. Product Introduce

flat carts power supply system custom manufacture flat cars



BEFANBY custom manufacture 10T Metal Plant Use Electric Rail Transfer Wagon On Tracks is powered by low voltage electricity from rails, the series of 50ton and 100t transfer carts for steel iron handling is one of the most convenient material handling equipment and it generally can be widely used in the industry field and so on. Of course,compared other transfer cart,it main features as it follows,its rails is isulated with the ground, and its wheels are isulated with the ground, so doesn't others.it is the advantage that the electric flat car factory manufacturer material handling equipment used in warehouses have, why we design is that its convenient (only rails needed) and its simple operation.





About BEFANBY, Our company have professional team and utilize more advanced technique to design and develope it , and it has been a long year to manufacture it attentively. Simutaneously, it will be more easy and flexible.Simple structure and low cost make it popular for workshop transportation.

f

Please contact us if you's like to learn more details and get the quotation.



BEFANBY have over 16 years' experience in the material handling fields.

10T Metal Plant Use Electric Rail Transfer Wagon On Tracks10T Metal Plant Use Electric Rail Transfer Wagon On Tracks10T Metal Plant Use Electric Rail Transfer Wagon On Tracks





2. Application

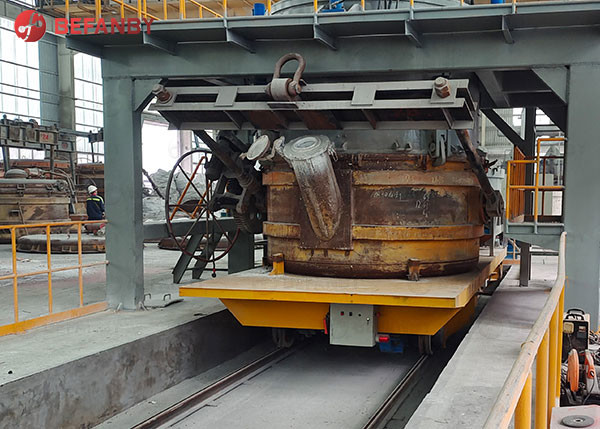

The Rail Transfer Wagon Is Suitable For Various Industries, Steel Mills, Transport Steel Products Such As Steel Structures, Steel Pipes, Steel Billets, Steel Ladles And Coils, Etc



From One Locations To Another; Paper Roll Plants: Transfer Paper Coil Painting Shops: Transfer Work Piece Into The Painting Rooms Sand Blasting Rooms Other Industries: Shipbuilding, Quarries, Warehouses And Multi-Bay Workshops, Etc.

10T Metal Plant Use Electric Rail Transfer Wagon On Tracks10T Metal Plant Use Electric Rail Transfer Wagon On Tracks


3. Befanby Material Handling Equipment Introduce

factory manufacturer flat cars custom manufacture flat carts high speed rail

The transfer wagons factory manufacturer material handling equipment used in warehouses used to carry heavy objects in the workshop. Generally speaking, the driving behavior on the track is limited. In order to solve these problems, Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. has developed non-standard vehicles such as turntables, turning vehicles, and shuttle vehicles to assist in the use. Industrial rail flat cars are powered by KPX battery, KPD low-voltage rail power supply, KPJ cable reel power supply and KPC trolley line power supply; the track laying requirements of rail flat cars need to be appropriately based on power supply and factory conditions, such as low voltage Rail power supply requires insulation treatment; high temperature resistance treatment is required under high temperature conditions. In addition, the customization of industrial rail cars needs to be customized according to the specific needs of users, and the size of the design needs to be calculated by the technicians for the load.
10T Metal Plant Use Electric Rail Transfer Wagon On Tracks





Welcome to inquiry us if you'd like to learn more

4. Technique Parameter
KPD series is a electric flat car factory manufacturer material handling equipment used in warehouses; KPX series is a battery electric motorized rail platform transfer trolley; KPJ series is a cable reel powered motorized rail trolley; KPT series is a tow cable powered electric rail trolley; KPC series is a safe sliding line Powered electric rail transfer trolley.

Model KPD-2t KPD-5t KPD-10t KPD-16t KPD-20t KPD-25t KPD-30t KPD-40t KPD-50t KPD-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50



Exported Company

10T Metal Plant Use Electric Rail Transfer Wagon On Tracks



factory manufacturer flat cars custom manufacture flat carts high speed rail
