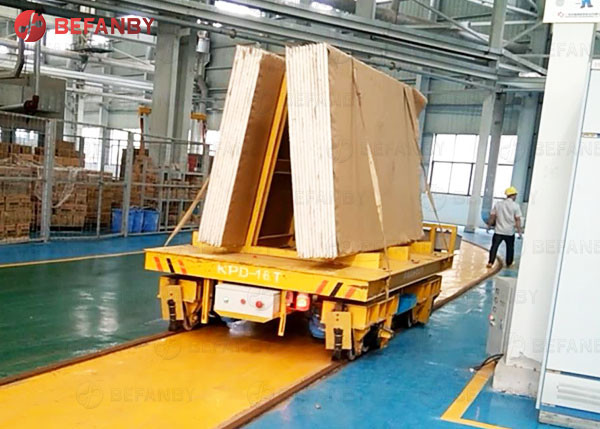

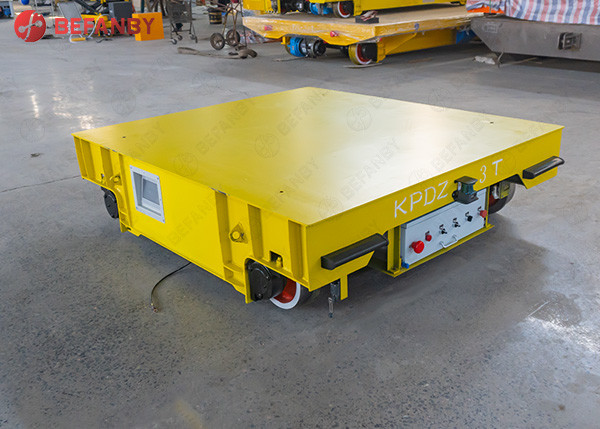

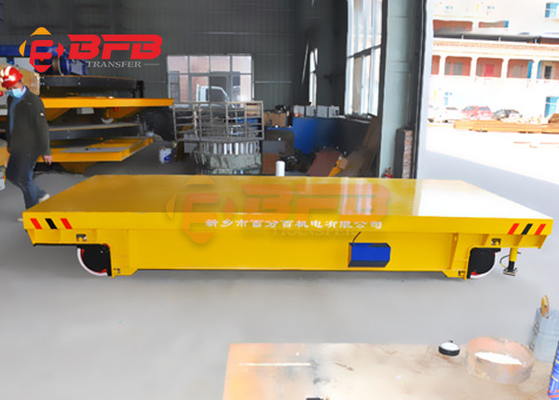

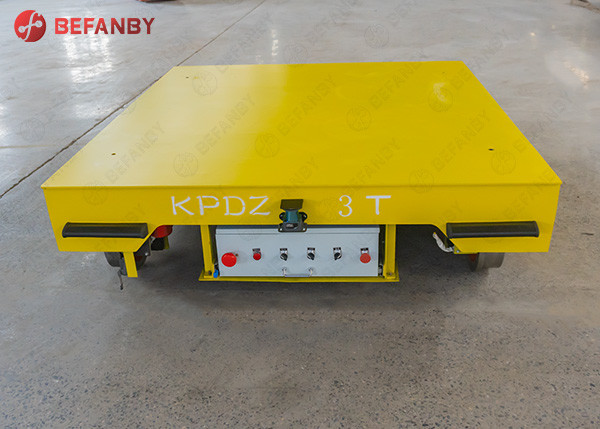

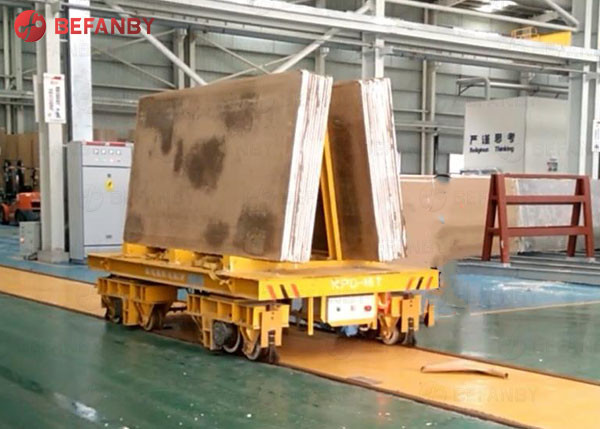

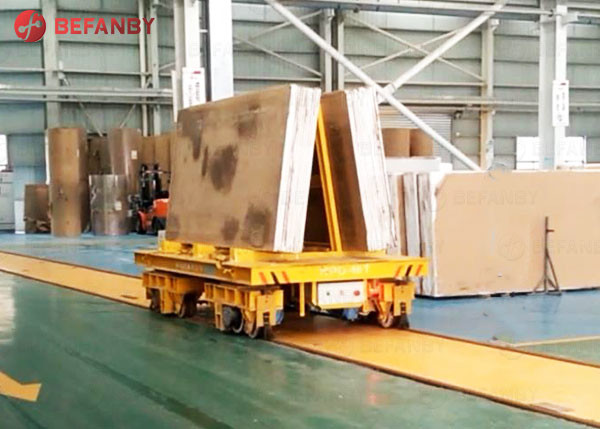

Railway Material Transfer Carts Steel Pipe Handling 20m/Min

  • Railway Material Transfer Carts Steel Pipe Handling 20m/Min
  • Railway Material Transfer Carts Steel Pipe Handling 20m/Min
  • Railway Material Transfer Carts Steel Pipe Handling 20m/Min
  • Railway Material Transfer Carts Steel Pipe Handling 20m/Min
  • Railway Material Transfer Carts Steel Pipe Handling 20m/Min
  • Railway Material Transfer Carts Steel Pipe Handling 20m/Min
Place of Origin Henan, China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPD
Minimum Order Quantity 1 set/sets
Packaging Details The railway transport vehicle will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 set/sets per year
Product Details
Material Q235 Running Speed 0-20m/min
Running Distance According To Customers'demand Warranty 18 Months
Load Capacity 1-1000T Application Industrial Field, Metal Plant Use,steel Pipe Handling
Port Qingdao/Tianjin/Shanghai Color Customized
Power Supply Low Voltage Rail Powered Operation Type Hand Pendent + Remote Control
Rail And Wheel Insulated Material Will Be Added
High Light

15T Railway Material Transfer Carts

,

20m/Min Material Transfer Carts

,

1000T Load Material Transfer Carts
Leave a Message
Product Description
Steel Pipe Handling Electric 15T Factory Price Railway Transport Vehicle


1. Product Introduce





There are many drive and control systems for industrial railway transport vehicles. the drive system includes gear reducer, shaft drive and single wheel drive. the typical unit is equipped with a hand-held suspension control devices, which is used by the operator to control the transfer vehicle to move back and forth along the track. the average driving speed can be customized, and the operator can walk with the vehicle to operate the unit. the pendant can be mounted on any of the four corners of the vehicle to allow the operator to walk along the front of the vehicle during operation. our transfer vehicles also have semi-automatic and full-automatic control systems to meet the needs of special applications.





About BEFANBY, Our company have professional team and utilize more advanced technique to design and develope it , and it has been a long year to manufacture it attentively. Simutaneously, it will be more easy and flexible.Simple structure and low cost make it popular for workshop transportation.

f

Please contact us if you's like to learn more details and get the quotation.



BEFANBY have over 16 years' experience in the material handling fields.

Steel Pipe Handling Electric 15T Factory Price Railway Transport VehicleSteel Pipe Handling Electric 15T Factory Price Railway Transport Vehicle



2. Application


1. Coils (V-Groove Deck)

2. Tanks (Size/Stability For Uniformly Distributed Loads)

3. Assemblies (Fixture Cradle) For A Complete Build Or To Send A Partially Completed Product To The Next Station (Tractors, Heavy Equipment Machinery)

4. Sub-Assembly Shuttle From One Line To Another Line

5. Maintenance Cart For Motors And Pumps

6. Equipment Support (Stand-Off Deck) For Navigating Loads To Locations With A Plant Facility

7. Material Shuttle For Steel Tubing (Flat Decking With Guard Rails)

8. Elevating Platform For Assembly Process (Integrated Screw-Jack Table)

9. Sand Casting (Flat Decking)

Steel Pipe Handling Electric 15T Factory Price Railway Transport VehicleSteel Pipe Handling Electric 15T Factory Price Railway Transport Vehicle


3. Befanby Material Handling Equipment Introduce

factory manufacturer flat cars custom manufacture flat carts high speed rail

The factory price railway transport vehicle used in warehouses used to carry heavy objects in the workshop. Generally speaking, the driving behavior on the track is limited. In order to solve these problems, Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. has developed non-standard vehicles such as turntables, turning vehicles, and shuttle vehicles to assist in the use. Industrial rail flat cars are powered by KPX battery, KPD low-voltage rail power supply, KPJ cable reel power supply and KPC trolley line power supply; the track laying requirements of rail flat cars need to be appropriately based on power supply and factory conditions, such as low voltage Rail power supply requires insulation treatment; high temperature resistance treatment is required under high temperature conditions. In addition, the customization of industrial rail cars needs to be customized according to the specific needs of users, and the size of the design needs to be calculated by the technicians for the load.
Steel Pipe Handling Electric 15T Factory Price Railway Transport Vehicle





Welcome to inquiry us if you'd like to learn more

4. Technique Parameter
KPD series is a railway transport vehicle material handling equipment used in warehouses; KPX series is a battery electric motorized rail platform transfer trolley; KPJ series is a cable reel powered motorized rail trolley; KPT series is a tow cable powered electric rail trolley; KPC series is a safe sliding line Powered electric rail transfer trolley.

Model KPD-2t KPD-5t KPD-10t KPD-16t KPD-20t KPD-25t KPD-30t KPD-40t KPD-50t KPD-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50



Exported Company

Steel Pipe Handling Electric 15T Factory Price Railway Transport Vehicle
