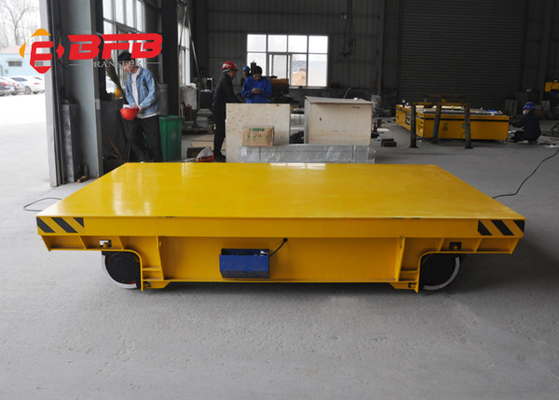

Cable Power 20m/Min Railway Electric Transfer Cart 2 Ton

  • Cable Power 20m/Min Railway Electric Transfer Cart 2 Ton
  • Cable Power 20m/Min Railway Electric Transfer Cart 2 Ton
  • Cable Power 20m/Min Railway Electric Transfer Cart 2 Ton
  • Cable Power 20m/Min Railway Electric Transfer Cart 2 Ton
  • Cable Power 20m/Min Railway Electric Transfer Cart 2 Ton
  • Cable Power 20m/Min Railway Electric Transfer Cart 2 Ton
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE, SGS, ISO9001
Model Number KPT
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1500 set/sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Cable Power Railway Transfer Flat Cart 2 Ton Power Supply Mobile Cable Powered
Running Distance According To Customers' Demand Running Speed 0-20m/min
Color Yellow; Red; Blue, Gray, Etc. Load Capacity 1-1500T, Customized Manufacture
Warranty 24 Months Operation Type Hand Pendant + Remote Control
High Light

20m/Min Railway Electric Transfer Cart

,

Cable Power Electric Transfer Cart

,

2T Electric Transfer Cart
Leave a Message
Product Description
Cable Power Railway Transfer Flat Cart 2 Ton

With people's attention to safety and environmental protection and the influence of various other factors, electric car cable, marine cable, safety fire cable, locomotive and vehicle cable, nuclear power station cable and other special application cables are more and more popular. these special cables with thermoplastic insulation or cross-linked polyethylene insulation have the characteristics of light weight, small volume, low smoke, halogen-free and fireproof, so they are easy to install, environmentally friendly and safe. in case of fire, the amount of smoke and poisonous gas released is low and non corrosive, which can win valuable time for people to escape. there is no doubt that the increasingly fierce competition in the wire and cable market is not surprising, but it is only limited to the traditional wire and cable market. after several years of rapid development, china's wire and cable industry has formed a considerable scale, but because the production capacity is greater than the demand, there is a situation of oversupply. and the technical content is not very high, for some special needs are still difficult to meet, based on this situation, the special cable market is emerging, attracting more and more people's attention!


Cable Power Railway Transfer Flat Cart 2 TonCable Power Railway Transfer Flat Cart 2 Ton


Working Principle

KPT series' Cable Power Railway Transfer Flat Cart 2 Ton----it conducts AC380v directly into the electrical control system of the transfer cart to start, stop, go forward backforward and so on.The cart is powered by dragged cable which is laid on the ground. the cable line is placed between the two rails. The operation system is low voltage 36v power.


Cable Power Railway Transfer Flat Cart 2 Ton


Character Showing
  • Anti-explosion
  • Heat-resist
  • Safe components are installed
  • Customization can be supported
  • Low cost
  • No limitation of time
  • Simple structure
  • High frequency
  • No strict requirement of rails
  • Easy abrasion for cable
  • Need dig trench,impair the ground
  • The cart is suitable to use in short distance(<=20m), low cart's height

Cable Power Railway Transfer Flat Cart 2 Ton


Technique Parameter

Model KPT-2t KPT-5t KPT-10t KPT-16t KPT-20t KPT-25t KPT-30t KPT-40t KPT-50t KPT-63t KPT-80t KPT-100t KPT-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 450 500 500 550 600 600 650 650 750 800 850 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.3 3.3 3.8 5 5.5 6 6.3 7.2 7.6 10.3 12.1 13.9 26
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Processing Line


Cable Power Railway Transfer Flat Cart 2 Ton


Packing & Delivery


Cable Power Railway Transfer Flat Cart 2 Ton



BEFANBY

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.


Cable Power Railway Transfer Flat Cart 2 Ton


Why Choose Us?


Cable Power Railway Transfer Flat Cart 2 Ton
