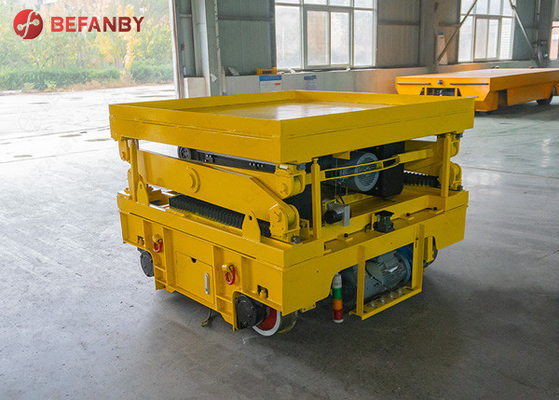

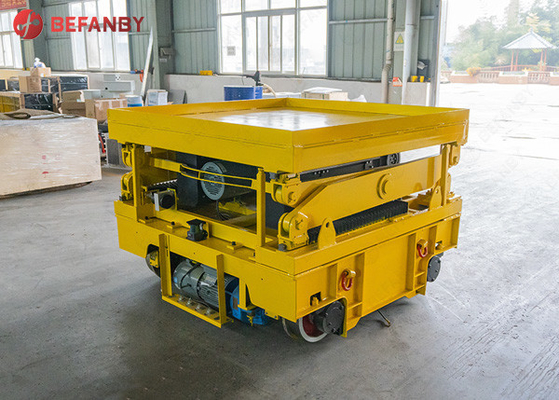

20T Workshop Q235 Rail Transfer Cart For Mold Transportation
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPD |
| Minimum Order Quantity | 1 set/sets |
| Packaging Details | The electric track transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Running Distance | According To Customers'demand | Warranty | 18 Months |
| Load Capacity | 1-1000T | Application | Industrial Field, Mold Transportation,workshop Handler |
| Port | Qingdao/Tianjin/Shanghai | Color | Customized |
| Power Supply | Low Voltage Rail Powered | Operation Type | Hand Pendent + Remote Control |
| Rail And Wheel | Insulated Material Will Be Added | ||
| Highlight | Workshop Q235 Rail Transfer Cart,20T Workshop Rail Transfer Cart,Mold Transportation Rail Transfer Cart |
||
Product Description
20 Tons Electric Driven Track Transfer Cart For Mold Transportation
1. Product Introduce
|
Intelligent safety control system for an electric driven track transfer cart is disclosed. the power supply is sent to the track after depressurization by a low-voltage power supply device. the boost power supply device on the track transfer cart takes power from the track and boosts it. the high-voltage power is sent to the track transfer cart motor by a driving device. the control power supply device takes power from the boost power supply device and transmits it to a signal sampling device and an intelligent controller respectively, the intelligent controller receives the output signal of the signal sampling device, and then transmits the control signal to the driving device and the braking device to control the electric car motor. the braking device takes power from the track and then transmits dc power to the flat car motor to realize braking. the electric die transport trolley has the function of sound and light warning when it is moving, and has the function of automatic smooth braking when it is stopped, so as to avoid the workpiece moving on the electric carriage; when encountering obstacles or track limit, it can stop automatically and smoothly, so as to avoid or reduce equipment accidents or personal accidents.
|
|
About BEFANBY, Our company have professional team and utilize more advanced technique to design and develope it , and it has been a long year to manufacture it attentively. Simutaneously, it will be more easy and flexible.Simple structure and low cost make it popular for workshop transportation. |
f
|
Please contact us if you's like to learn more details and get the quotation.
BEFANBY have over 16 years' experience in the material handling fields. |
2. Application
|
1. All kinds of coils (V-Groove Deck) 2. Tanks (Size/Stability For Uniformly Distributed Loads) 3. Assemblies (Fixture Cradle) For A Complete Build Or To Send A Partially Completed Product To The Next Station (Tractors, Heavy Equipment Machinery) 4. Sub-Assembly Shuttle From One Line To Another Line 5. Maintenance Cart For Motors And Pumps 6. Equipment Support (Stand-Off Deck) For Navigating Loads To Locations With A Plant Facility 7. Material Shuttle For Steel Tubing (Flat Decking With Guard Rails) 8. Elevating Platform For Assembly Process (Integrated Screw-Jack Table) 9. Sand Casting (Flat Decking) 10. Mold Transportation |
3. Befanby Material Handling Equipment Introduce
factory manufacturer flat cars custom manufacture flat carts high speed rail
The 2T Electric Power Light Mover Rail Trolley Transfer Cart For Workshop Handler used to carry heavy objects in the workshop. Generally speaking, the driving behavior on the track is limited. In order to solve these problems, Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. has developed non-standard vehicles such as turntables, turning vehicles, and shuttle vehicles to assist in the use. Industrial rail flat cars are powered by KPX battery, KPD low-voltage rail power supply, KPJ cable reel power supply and KPC trolley line power supply; the track laying requirements of rail flat cars need to be appropriately based on power supply and factory conditions, such as low voltage Rail power supply requires insulation treatment; high temperature resistance treatment is required under high temperature conditions. In addition, the customization of industrial rail cars needs to be customized according to the specific needs of users, and the size of the design needs to be calculated by the technicians for the load.
Welcome to inquiry us if you'd like to learn more
4. Technique Parameter
KPD series is a railway transfer trolley material handling equipment used in warehouses; KPX series is a battery electric motorized rail platform transfer trolley; KPJ series is a cable reel powered motorized rail trolley; KPT series is a tow cable powered electric rail trolley; KPC series is a safe sliding line Powered electric rail transfer trolley.
| Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
